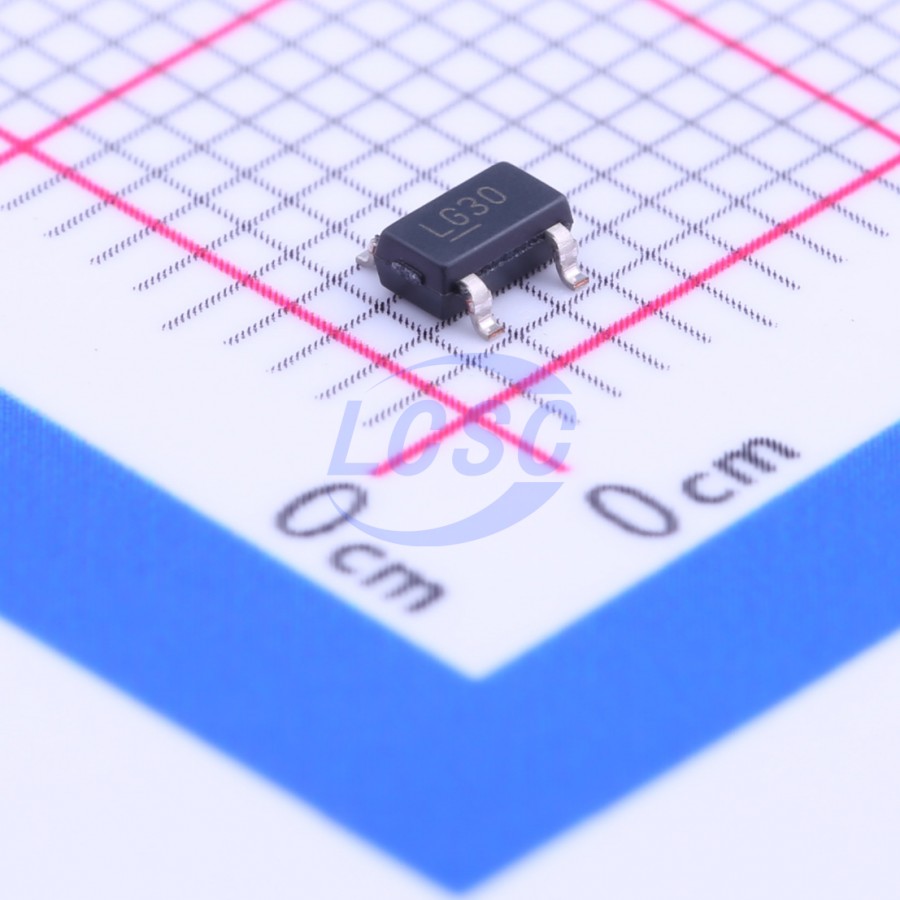

MIC5219-3.0YM5-TR

The MIC5219 is an efficient linear voltage regulator with high peak output current capability, very-low-dropout voltage, and better than 1% output voltage accuracy. Dropout is typically 10mV at light loads and less than 500mV at full load. The MIC5219 is designed to provide a peak output current for start-up conditions where higher inrush current is demanded. It features a 500mA peak output rating. Continuous output current is limited only by package and layout. The MIC5219 can be enabled or shut down by a CMOS or TTL compatible signal. When disabled, power consumption drops nearly to zero. Dropout ground current is minimized to help prolong battery life. Other key features include reversed-battery protection, current limiting, overtemperature shutdown, and low noise performance with an ultra-low-noise option. The MIC5219 is available in adjustable or fixed output voltages in the space-saving 6-pin (2mm×2mm) MLF, 6-pin (2mm×2mm) Thin MLF SOT‑23‑5 and MM8 8‑pin power MSOP packages.

Applications

• Laptop, notebook, and palmtop computers
• Cellular telephones and battery-powered equipment
• Consumer and personal electronics
• PC Card VCC and VPP regulation and switching
• SMPS post-regulator/DC-to-DC modules
• High-efficiency linear power supplies

Key features

• 500mA output current capability
• SOT-23-5 package - 500mA peak
• 2mm×2mm MLF package - 500mA continuous
• 2mm×2mm Thin MLF package - 500mA continuous
• MSOP-8 package - 500mA continuous
• Low 500mV maximum dropout voltage at full load
• Extremely tight load and line regulation
• Tiny SOT-23-5 and MM8 power MSOP-8 package
• Ultra-low-noise output
• Low temperature coefficient
• Current and thermal limiting
• Reversed-battery protection
• CMOS/TTL-compatible enable/shutdown control
• Near-zero shutdown current
