MICROCHIP

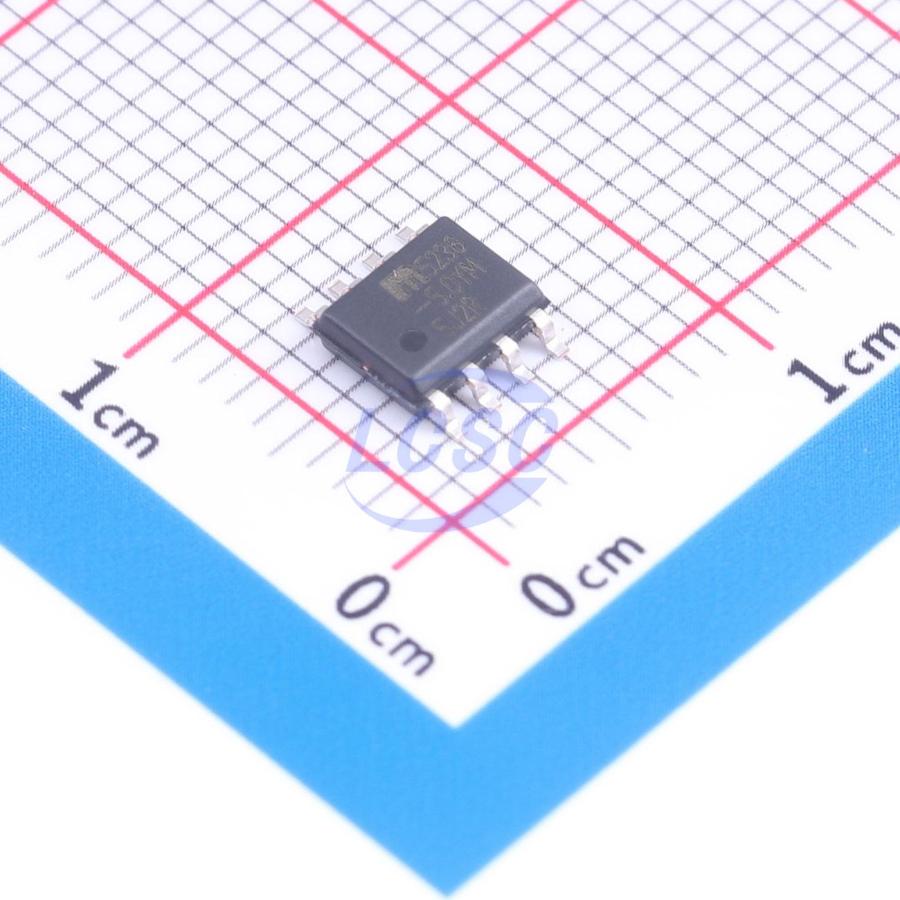

MIC5236-5.0YM-TR

5V Positive Fixed SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOIC-8ROHS3 CompliantActive

Manufacturer: MICROCHIP
Manufacturer part #: MIC5236-5.0YM-TR
Store part #: C628165
Package / case: SOIC-8
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9 in stock

#C628165

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹586.45	₹586.45
10+	₹572.90	₹5,729.00
30+	₹563.80	₹16,914.00
100+	₹554.69	₹55,469.00

Quantity (min 1)

1 × ₹586.45

₹586.45

excl. GST

₹692.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MIC5236-5.0YM-TR

₹586.45 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 20uA
Output Configuration: Positive
Operating Voltage: 30V
Output Current: 150mA
Features: Enable control;Operating status indication;Thermal shutdown;Over Current Protection;Reverse-polarity current protection;Reverse polarity voltage protection;Input overvoltage protection;Input under-voltage protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 3.68 g

Overview

MIC5236 is a low quiescent current, micro-cap low dropout regulator. It supports a maximum operating input voltage of 30V with a quiescent current of only 20µA, making it ideal for standby power supply in systems powered by high-voltage batteries. The MIC5236 delivers 150mA output current with a dropout voltage of only 300mV. It can also withstand input transient voltages from -20V to +60V. As a high-cap LDO, the MIC5236 remains stable with either ceramic or tantalum output capacitors. For stability, only a 1.0µF output capacitor is required. The MIC5236 includes a logic-compatible enable input and an undervoltage error flag indicator. Additional features include thermal shutdown, current limiting, overvoltage shutdown, load dump protection, reverse leakage protection, and reverse battery protection. The MIC5236 is available in thermally enhanced SOIC-8 and MSOP-8 packages in fixed 2.5V, 3.0V, 3.3V, 5.0V, and adjustable output voltage versions. For other output voltages, contact Micrel.

Applications

Standby power supply for laptops and tablets
Logic supply powered from high-voltage battery
Automotive electronics
Battery-powered systems

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
BD4269FJ-CE2#C3746482ROHM · SOP-8-J	ROHM	SOP-8-J	13	₹80.02 · 13 in stock	View
TLS715B0EJ V50#C540264Infineon · DSO-8	Infineon	DSO-8	42	₹177.92 · 42 in stock	View
NCV4269AD150R2G#C424246onsemi · SOIC-8	onsemi	SOIC-8	107	₹152.61 · 107 in stock	View
TLE42794G#C539731Infineon · DSO-8	Infineon	DSO-8	1	₹136.76 · 1 in stock	View
TLE42994G#C539754Infineon · DSO-8	Infineon	DSO-8	300	₹279.22 · 300 in stock	View
