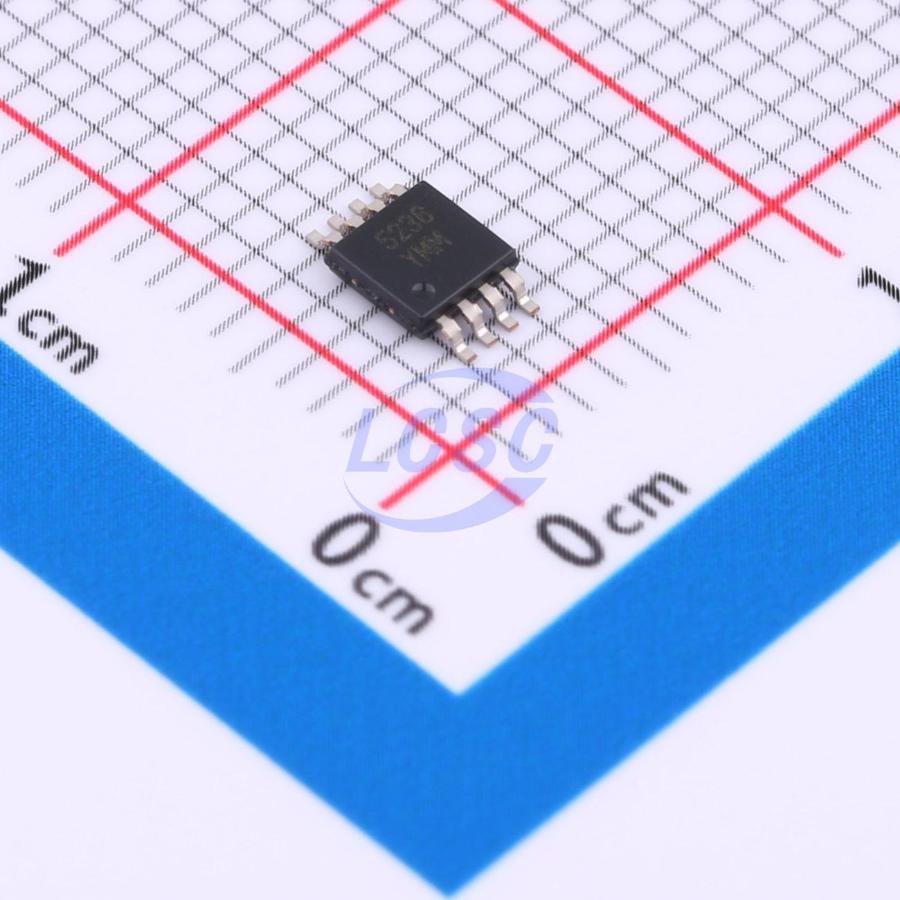

MICROCHIP

MIC5236YMM

1.24V~20V MSOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

MSOP-8ROHS3 CompliantActive

Low Quiescent Current uCap LDO Regulator

Manufacturer: MICROCHIP
Manufacturer part #: MIC5236YMM
Store part #: C636590
Package / case: MSOP-8
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

48 in stock

#C636590

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹336.93	₹336.93
10+	₹329.56	₹3,295.60
30+	₹324.44	₹9,733.20
100+	₹319.53	₹31,953.00

Quantity (min 1)

1 × ₹336.93

₹336.93

excl. GST

₹397.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 100 per tube

MIC5236YMM

₹336.93 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.24V~20V
Operating Temperature: -40℃~+125℃
Output Current: 150mA
Features: Overcurrent Protection;Operating status indication

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 100 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.2 g

Overview

MIC5236 is a low quiescent current, micro-cap low dropout regulator. It supports a maximum operating input voltage of 30V with a quiescent current of only 20µA, making it ideal for standby power supply in systems powered by high-voltage batteries. The MIC5236 delivers 150mA output current with a dropout voltage of only 300mV. It can also withstand input transient voltages from -20V to +60V. As a high-cap LDO, the MIC5236 remains stable with either ceramic or tantalum output capacitors. For stability, only a 1.0µF output capacitor is required. The MIC5236 includes a logic-compatible enable input and an undervoltage error flag indicator. Additional features include thermal shutdown, current limiting, overvoltage shutdown, load dump protection, reverse leakage protection, and reverse battery protection. The MIC5236 is available in thermally enhanced SOIC-8 and MSOP-8 packages in fixed 2.5V, 3.0V, 3.3V, 5.0V, and adjustable output voltage versions. For other output voltages, contact Micrel.
