MICROCHIPDatasheet (PDF)

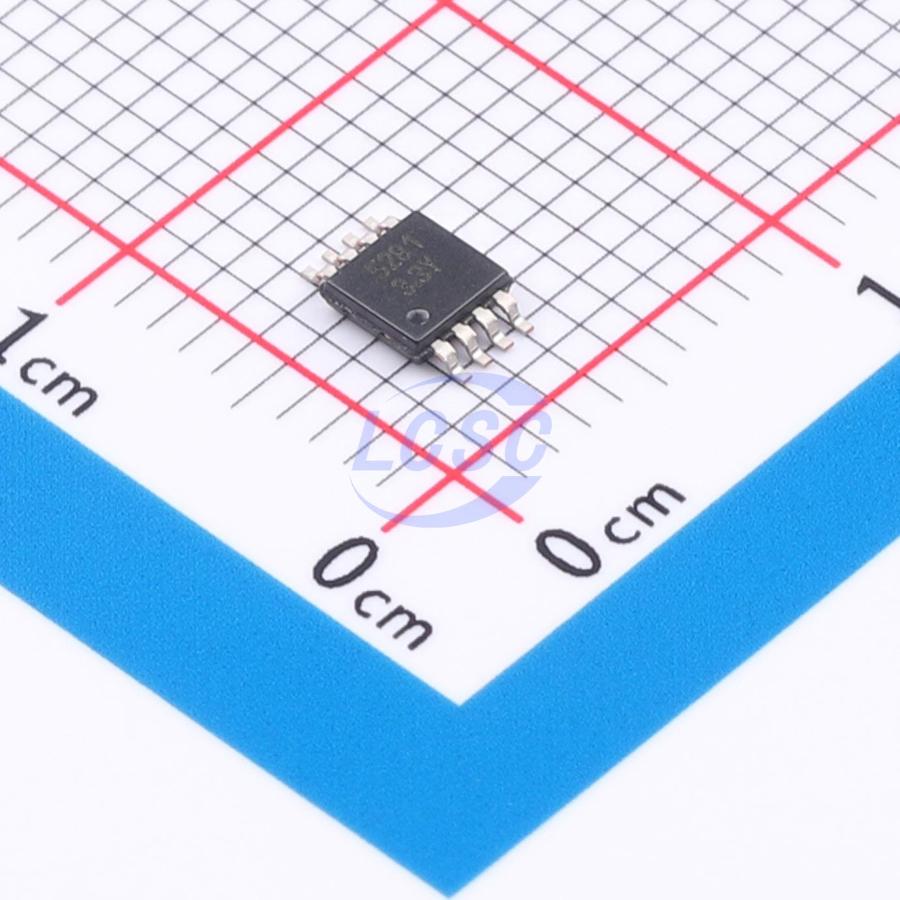

MIC5281-3.3YMM-TR
3.3V Positive Fixed MSOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
MSOP-8ROHS3 CompliantActive
120VIN, 25mA, Ultra-Low IQ, High-PSRR Linear Regulator
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MIC5281-3.3YMM-TR
- Store part #
- C628197
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C628197
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹252.30 | ₹252.30 |
| 10+ | ₹216.05 | ₹2,160.50 |
| 30+ | ₹193.22 | ₹5,796.60 |
| 100+ | ₹169.98 | ₹16,998.00 |
| 500+ | ₹159.53 | ₹79,765.00 |
| 1,000+ | ₹155.04 | ₹1,55,040.00 |
1 × ₹252.30
₹252.30
excl. GST
₹297.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MIC5281-3.3YMM-TR
₹252.30 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 11uA
- Output Configuration
- Positive
- Output Current
- 25mA
- Operating Voltage
- 120V
- Features
- Thermal shutdown;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
The MIC5281 high-performance linear regulator offers a very-wide input operating voltage range, up to 120V DC, and supplies an output current of up to 25mA. Ideal for high input voltage applications such as industrial and telecom, the MIC5281 offers ±3% initial accuracy, extremely high-power supply rejection ratio (>90dB) and ultra-low quiescent current of 6μA. The MIC5281 is optimized for high-voltage line transients, making it ideal for harsh environment applications. The MIC5281 is offered in both fixed output voltage (3.3V/5.0V) and adjustable output voltage (1.27V to 5.5V) options. The MIC5281 operates over a -40°C to +125°C temperature range and is available in lead-free, RoHS-compliant, 8-pin ePad MSOP, and 8-pin MSOP packages
Applications
- Industrial applications
- Remote keyless entry power supply
- Telecom applications
- Off-line power supplies
Key features
- Wide input voltage range: 6V to 120V DC
- Ultra-low quiescent current: 6μA
- 25mA guaranteed output current
- Adjustable output from 1.27V to 5.5V
- Withstands up to +120V DC at the input
- Stable with ceramic capacitors
- Ultra-high PSRR >90dB
- Ultra-high line rejection (load dump)
- High output accuracy: ±3% initial accuracy
- Thermal-shutdown and current-limit protection
- Thermally-efficient, 8-pin MSOP, and 8-pin ePad MSOP packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MIC5282-3.3YMM#C636612MICROCHIP · MSOP-8 | MICROCHIP | MSOP-8 | 10 | ₹355.86 · 10 in stock | View |
 | MIC5281-3.3YMM#C636606MICROCHIP · MSOP-8 | MICROCHIP | MSOP-8 | On request | ₹396.71 · 0 in stock | View |
