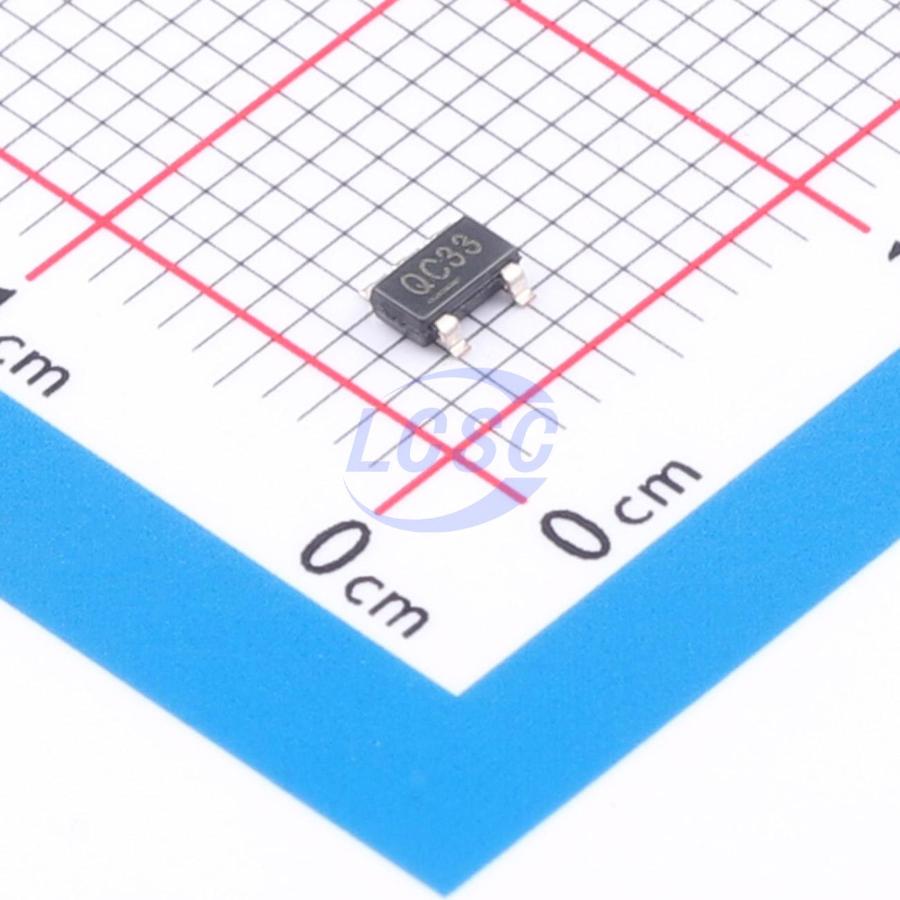

MIC5301-3.3YD5-TR

The MIC5301 is a high performance, single output ultra low LDO (ULDO) regulator, offering low total output noise. The MIC5301 is capable of sourcing 150mA output current and offers high PSRR and low output noise, making it an ideal solution for RF applications. For battery operated applications, the MIC5301 offers 2% accuracy, extremely low dropout voltage (40mV @ 150mA), and low ground current (typically 85μA total). The MIC5301 can also be put into a zero-off-mode current state, drawing no current when disabled. The MIC5301 is available in the 1.6mm x 1.6mm Thin MLF package, occupying only 2.56mm² of PCB area, a 36% reduction in board area compared to SC-70 and 2mm×2mm MLF packages. The MIC5301 has an operating junction temperature range of -40°C to +125°C and is available in fixed and adjustable output voltages in lead-free (RoHS compliant) Thin MLF and Thin SOT-23-5 packages.

Applications

• Mobile phones
• PDAs
• GPS receivers
• Portable electronics
• Digital still and video cameras

Key features

• Ultra low dropout voltage – 40mV @ 150mA
• Input voltage range: 2.3V to 5.5V
• 150mA guaranteed output current
• Stable with ceramic output capacitors
• Ultra low output noise – 30μVrms
• Low quiescent current – 85μA total
• High PSRR – up to 75dB@1kHz
• 35μs turn-on time
• High output accuracy
• ±2% initial accuracy
• ±3% over temperature
• Thermal shutdown and current limit protection
• Tiny 6-pin 1.6mm x 1.6mm Thin MLF leadless package
• Thin SOT-23-5 package
