MICROCHIPDatasheet (PDF)

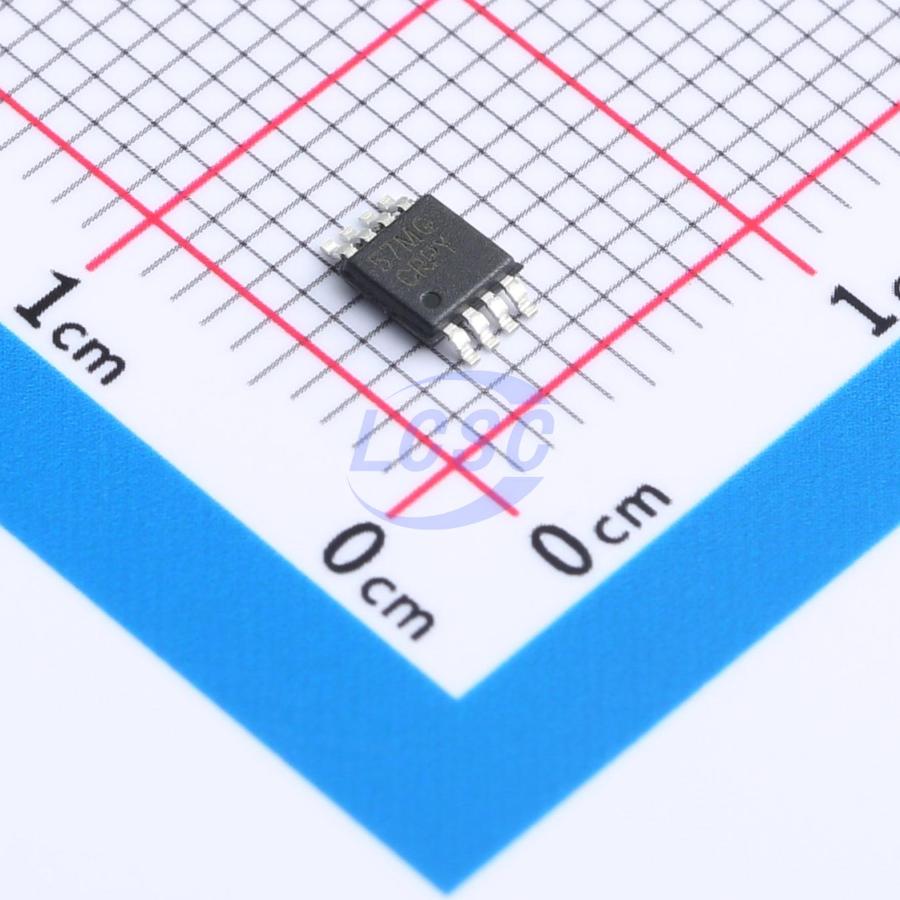

MIC5357-MGYMME
Positive Fixed MSOP-8-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
MSOP-8-EPROHS3 CompliantActive
High Performance, Low Noise Dual 500mA ULDOTM Linear Regulator
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MIC5357-MGYMME
- Store part #
- C636628
- Package / case
- MSOP-8-EP
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C636628
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹278.35 | ₹278.35 |
| 10+ | ₹243.88 | ₹2,438.80 |
| 30+ | ₹222.22 | ₹6,666.60 |
| 100+ | ₹200.14 | ₹20,014.00 |
| 500+ | ₹190.04 | ₹95,020.00 |
| 1,000+ | ₹185.70 | ₹1,85,700.00 |
1 × ₹278.35
₹278.35
excl. GST
₹328.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per tube
MIC5357-MGYMME
₹278.35 for 1 + GST
Specifications
- Output Voltage
- 1.8V;2.8V
- Number of Outputs
- 2
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 175uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Features
- Enable control;Noise bypass terminal;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.48 g
Overview
The MIC5357 is a tiny Dual Ultra Low Dropout (ULDO™) linear regulator ideally suited for portable electronics due to its low output noise. The MIC5357 provides two independently controlled high performance 500mA LDOs with typical dropout voltage of 130mV at rated load. In addition, the MIC5357 provides a bypass pin to reduce the output noise.
Applications
- Battery-Powered Applications
- PDAs
- GPS receivers
- Portable electronics
- Portable media players
- Digital still and video cameras
- RF Power Supply Circuit
Key features
- 2.6V to 5.5V input voltage range
- Ultra low dropout voltage: 130mV @ 500mA
- Ultra low output noise: 51µVRMS
- ±2% initial output accuracy
- Small 8-pin ePad MSOP package
- Excellent Load/Line transient response
- Fast start up time: 38µs
- µCap stable with 2.2µF ceramic capacitors
- Thermal shutdown protection
- Low quiescent current: 160µA with both outputs at maximum load
- Current-limit protection
