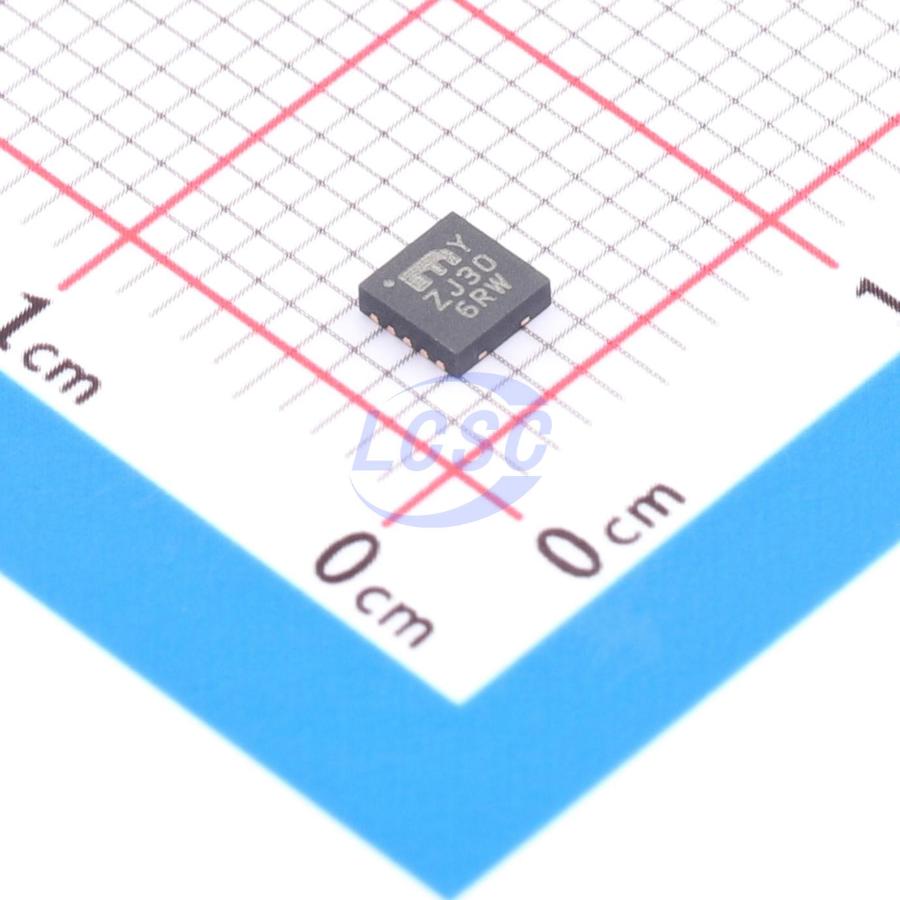

MIC61300YML-TR

The Micrel MIC61300 is a 3A output, low input voltage, single-supply regulator. This regulator operates over a single input voltage range of 1.1V to 3.6V and offers an ultra-low dropout less than 350mV over the entire operating temperature range. The MIC61300 is designed to drive digital circuits requiring low voltages at high currents such as DSPs, FPGAs, microcontrollers, etc. The regulator is available as a 1.0V fixed-output voltage option or as an adjustable-output voltage option. The MIC61300 is stable with a 47μF, low-ESR ceramic output capacitor, and includes protection features such as thermal shutdown, current limiting and logic enable. The MIC61300 is offered in two different packages: a lowprofile, leadless 10-pin 3mm × 3mm MLF and a 10-pin ePad MSOP. The MIC61300 has an operating junction temperature range of -40℃ to +125℃.

Applications

• Point-of-load applications
• ASIC / Microprocessor power supply
• FPGA power supply
• Telecom / Networking cards
• Wireless infrastructure

Key features

• Single VIN rail: 1.1V to 3.6V
• Output voltage accuracy: ±2.5% over temperature
• Typical dropout of 150mV at room temperature
• Maximum dropout of 350mV at full load over temperature
• Output voltage adjustable down to 0.5V
• Soft-start control via external capacitor
• Excellent line and load regulation
• Logic controlled shutdown
• Thermal-shutdown and current-limit protection
• 10-pin 3mm×3mm MLF package
• 10-pin ePad MSOP package
• Junction temperature range from -40℃ to +125℃
