MICROCHIPDatasheet (PDF)

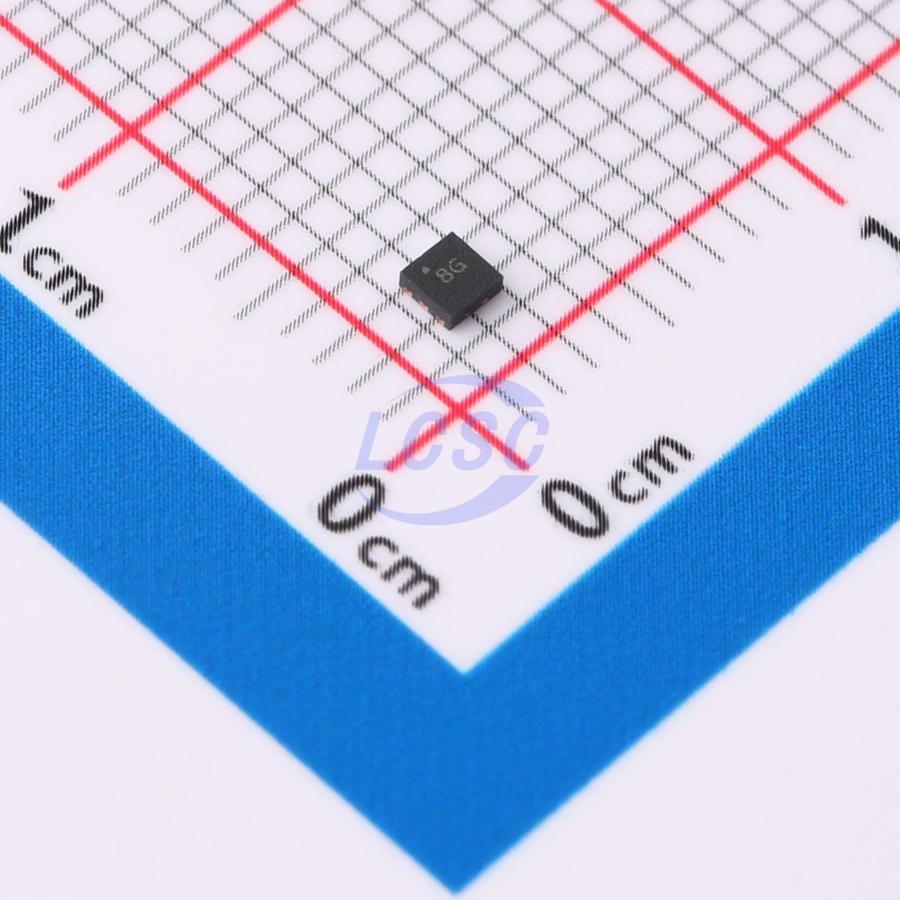

MIC94355-SYMT-TR
3.3V DFN-6-EP(1.6x1.6) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-6-EP(1.6x1.6)ROHS3 CompliantActive
500 mA LDO with Ripple Blocker Technology
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MIC94355-SYMT-TR
- Store part #
- C622569
- Package / case
- DFN-6-EP(1.6x1.6)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
184 in stock
#C622569
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.39 | ₹100.39 |
| 10+ | ₹98.44 | ₹984.40 |
| 30+ | ₹97.13 | ₹2,913.90 |
| 100+ | ₹95.84 | ₹9,584.00 |
1 × ₹100.39
₹100.39
excl. GST
₹118.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
MIC94355-SYMT-TR
₹100.39 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Operating Temperature
- -40℃~+125℃
- Output Current
- 500mA
- Features
- Output discharge;Overcurrent Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.019 g
Overview
The MIC94325, MIC94345, and MIC94355 Ripple Blocker devices are monolithic integrated circuits that provide low-frequency ripple attenuation (switching noise rejection) to a regulated output voltage. This is important for applications where a DC/DC switching converter is required to lower or raise a battery voltage, but where switching noise cannot be tolerated by sensitive downstream circuits such as in RF applications. The MIC94325/45/55 maintain high power supply ripple rejection (PSRR) with input voltages operating near the output voltage level to improve overall system efficiency. A low-voltage logic enable pin facilitates ON/OFF control at typical GPIO voltage levels. The MIC94325/45/55 operate from an input voltage of 1.8V to 3.6V. Options include fixed (MIC94345/55) or adjustable (MIC94325) output voltages. The MIC94355 version offers an auto-discharge to discharge the output capacitor when the part is disabled. Packaged in a 6-pin 1.6 mm×1.6 mm Thin DFN, the MIC94325/45/55 have a junction operating temperature range of -40℃ to +125℃.
Applications
- Smart Phones
- Tablet PC/Notebooks and Webcams
- Digital Still and Video Cameras
- Global Positioning Systems
- Mobile Computing
- Automotive and Industrial Applications
Key features
- 1.8V to 3.6V Input Voltage Range
- Active Noise Rejection over a Wide Frequency Band - >50dB from 10 Hz to 5 MHz at 500 mA Load
- Rated to 500 mA Output Current
- Fixed and Adjustable Output Voltages
- Optional Output Auto-Discharge when Disabled
- Current-Limit and Thermal-Limit Protection
- 1.6 mm×1.6 mm, 6-Pin Thin DFN
- Logic-Controlled Enable Pin
- -40℃ to +125℃ Junction Temperature Range
