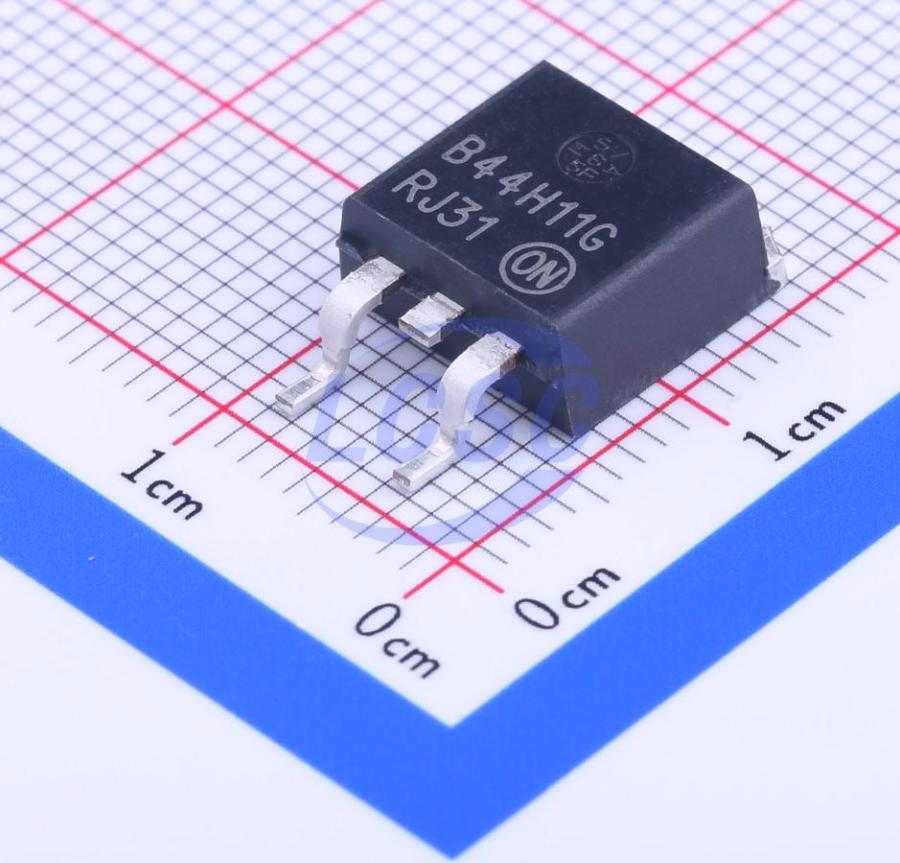

MJB44H11G
80V 60 10A 1 NPN NPN TO-263-2 Single Bipolar Transistors RoHS
TO-263-2ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- MJB44H11G
- Store part #
- C80690
- Package / case
- TO-263-2
- Category
- Single Bipolar Transistors
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
355 in stock
#C80690
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹211.40 | ₹211.40 |
| 10+ | ₹173.02 | ₹1,730.20 |
| 50+ | ₹152.00 | ₹7,600.00 |
| 100+ | ₹128.15 | ₹12,815.00 |
| 500+ | ₹117.73 | ₹58,865.00 |
| 1,000+ | ₹112.97 | ₹1,12,970.00 |
1 × ₹211.40
₹211.40
excl. GST
₹249.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
MJB44H11G
₹211.40 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 10uA
- Transition frequency(fT)
- 50MHz
- Collector - Emitter Voltage VCEO
- 80V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 60
- Current - Collector(Ic)
- 10A
- Pd - Power Dissipation
- 50W
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.816 g
Overview
Complementary power transistors are for general purpose power amplification and switching such as output or driver stages in applications such as switching regulators, converters and power amplifiers.
Key features
- Low Collector−Emitter Saturation Voltage − VCE(sat)=1.0 V (Max) @ 8.0 A
- Fast Switching Speeds
- Complementary Pairs Simplifies Designs
- Epoxy Meets UL 94 V-0 @ 0.125 in
- ESD Ratings: Human Body Model, 3B>8000 V Machine Model, C>400 V
- NJV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- Pb−Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MJB44H11T4G#C233689onsemi · D2PAK | onsemi | D2PAK | 1,468 | ₹197.51 · 1,468 in stock | View |
 | NJVMJB44H11T4G#C513039onsemi · D2PAK | onsemi | D2PAK | On request | ₹235.15 · 0 in stock | View |
