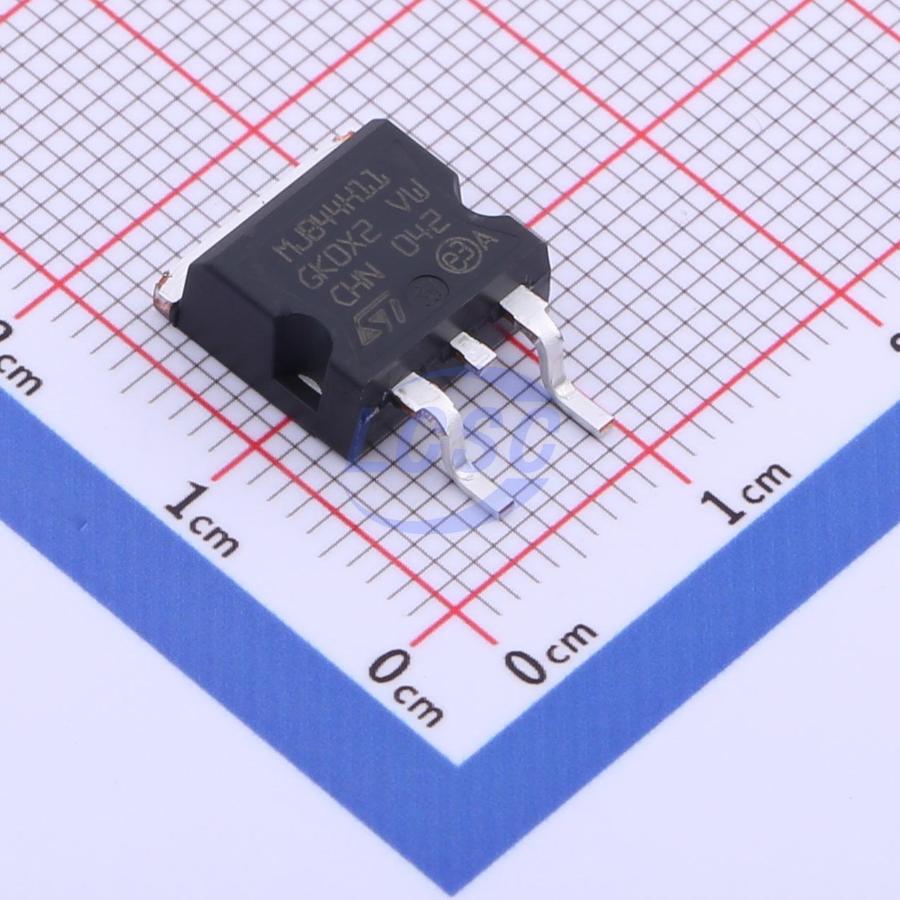

MJB44H11T4-A

Bipolar (BJT) Transistor NPN 80V 10A 50W Surface Mount D2PAK

D2PAKROHS3 CompliantActive

TRANS NPN 80V 10A D2PAK

Manufacturer: ST
Manufacturer part #: MJB44H11T4-A
Store part #: C2802057
Package / case: D2PAK
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

713 in stock

#C2802057

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹201.98	₹201.98
10+	₹166.12	₹1,661.20
30+	₹146.47	₹4,394.10
100+	₹124.22	₹12,422.00
500+	₹114.28	₹57,140.00
1,000+	₹109.74	₹1,09,740.00

Quantity (min 1)

1 × ₹201.98

₹201.98

excl. GST

₹238.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

MJB44H11T4-A

₹201.98 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Current - Collector Cutoff: 10uA
Collector - Emitter Voltage VCEO: 80V
Emitter-Base Voltage VEBO: 5V
DC Current Gain: 40
Pd - Power Dissipation: 50W
Current - Collector(Ic): 10A
Number: 1 NPN
type: NPN
Vce Saturation(VCE(sat)): 1V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.929 g

Overview

This device is an NPN transistor manufactured using new low voltage planar technology with double metal process. The result is a transistor which boasts exceptionally high gain performance coupled with very low saturation voltage.

Applications

Power amplifier
Switching circuits

Key features

Designed for automotive applications and AEC - Q101 qualified
Low collector - emitter saturation voltage
Fast switching speed
