onsemi

MJD117G

100V 1000 2A PNP DPAK Single Bipolar Transistors RoHS

DPAKROHS3 CompliantActive

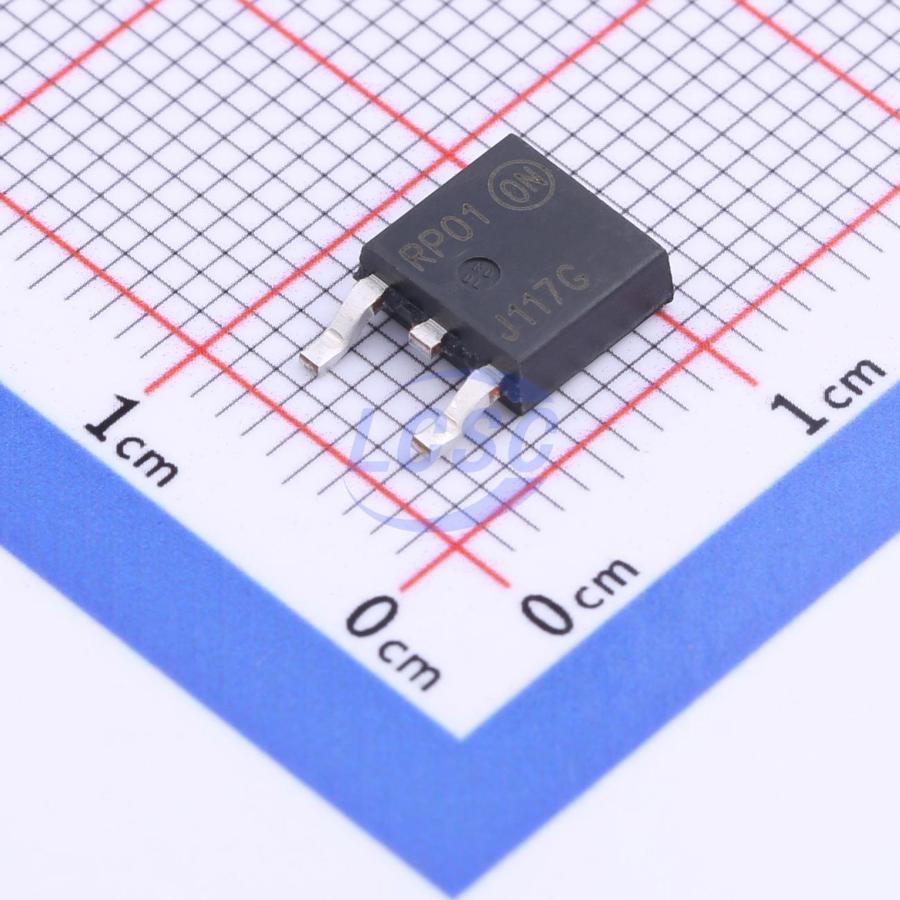

Complementary Darlington Silicon Power Transistors, 2 Amperes, 100 Volts, 20 Watts

Manufacturer: onsemi
Manufacturer part #: MJD117G
Store part #: C897474
Package / case: DPAK
Category: Single Bipolar Transistors
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

59 in stock

#C897474

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹187.77	₹187.77
10+	₹160.12	₹1,601.20
30+	₹146.40	₹4,392.00
75+	₹129.05	₹9,678.75
525+	₹120.68	₹63,357.00
975+	₹116.61	₹1,13,694.75

Quantity (min 1)

1 × ₹187.77

₹187.77

excl. GST

₹221.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 75 per tube

MJD117G

₹187.77 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Vbe Saturation(VBE(sat)): 4V
Current - Collector Cutoff: 20uA
Operating Temperature: -65℃~+150℃@(Tj)
Vbe On(VBE(on)): 2.8V
Transition frequency(fT): 25MHz
Collector - Emitter Voltage VCEO: 100V
Emitter-Base Voltage VEBO: 5V
DC Current Gain: 1000
Pd - Power Dissipation: 1.75W
Current - Collector(Ic): 2A
type: PNP
Vce Saturation(VCE(sat)): 3V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 75 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.79 g

Overview

Designed for general purpose power and switching such as output or driver stages in applications such as switching regulators, converters, and power amplifiers.

Applications

switching regulators
converters
power amplifiers

Key features

Lead Formed for Surface Mount Applications in Plastic Sleeves (No Suffix)
Straight Lead Version in Plastic Sleeves (“−1” Suffix)
Electrically Similar to Popular TIP31 and TIP32 Series
NJV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
These Devices are Pb−Free and are RoHS Compliant

Alternatives

Similar parts — check the datasheet before substituting.
