DIODES

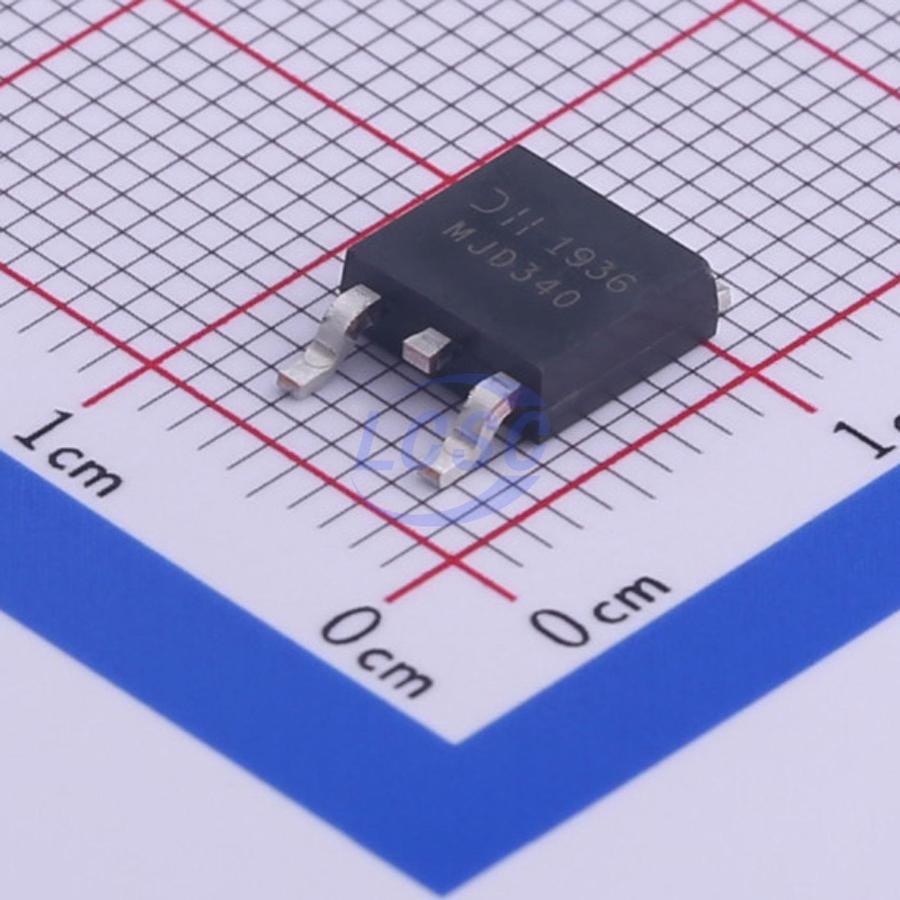

MJD340-13

Bipolar (BJT) Transistor NPN 300V 0.5A 10MHz 15W Surface Mount DPAK-3

DPAK-3ROHS CompliantActive

TRANS NPN 300V 0.5A DPAK-3

Manufacturer: DIODES
Manufacturer part #: MJD340-13
Store part #: C443830
Package / case: DPAK-3
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,578 in stock

#C443830

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹80.02	₹80.02
10+	₹63.53	₹635.30
30+	₹56.60	₹1,698.00
100+	₹47.92	₹4,792.00
500+	₹44.02	₹22,010.00
1,000+	₹34.04	₹34,040.00

Quantity (min 1)

1 × ₹80.02

₹80.02

excl. GST

₹94.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MJD340-13

₹80.02 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Current - Collector Cutoff: 100nA
Transition frequency(fT): 10MHz
Collector - Emitter Voltage VCEO: 300V
Emitter-Base Voltage VEBO: 7V
DC Current Gain: 30
Current - Collector(Ic): 500mA
Pd - Power Dissipation: 15W
Configuration: Standalone
Number: 1 NPN
type: NPN
Vce Saturation(VCE(sat)): 500mV

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.503 g

Overview

Key features

BVCEO > 300V
IC = 0.5A High Continuous Collector Current
ICM = 0.75A Peak Pulse Current
Ideal for Power Switching or Amplification Applications
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
Qualified to AEC-Q101 Standards for High Reliability
