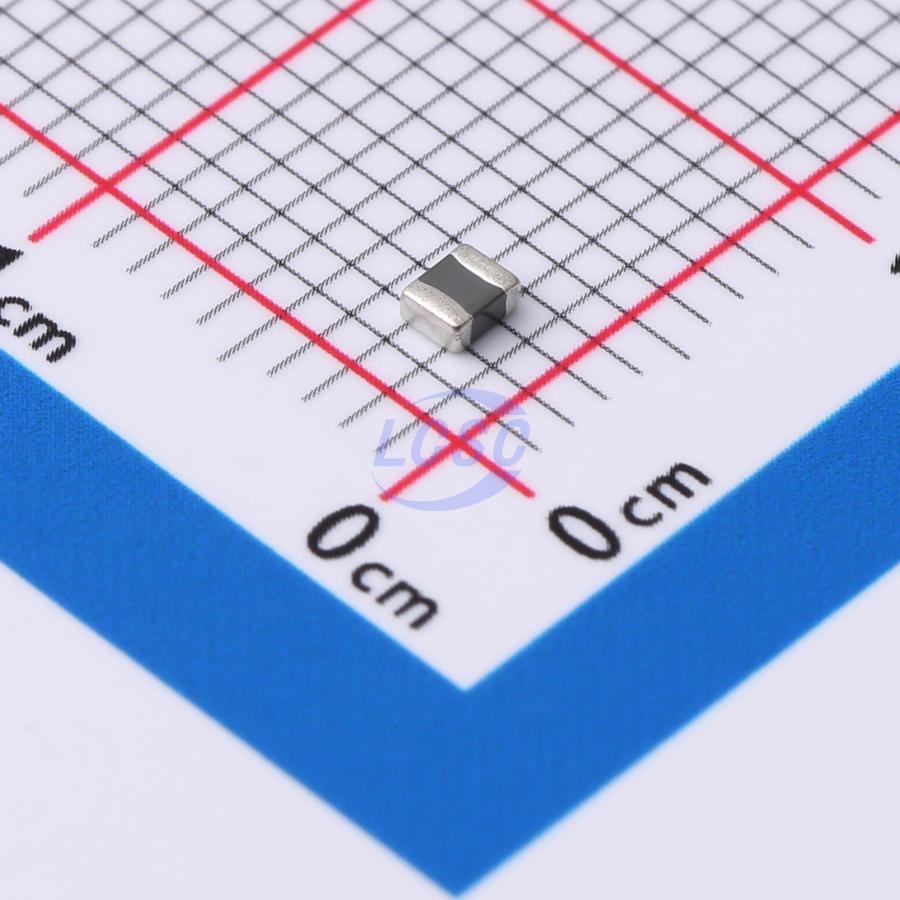

MLP2016S4R7MT0S1
800mA 4.7uH ±20% 270mΩ Multilayer inductor 0806 Fixed Inductors RoHS
FIXED IND 4.7uH 800mA 351mΩ 0806
- Manufacturer
- TDK
- Manufacturer part #
- MLP2016S4R7MT0S1
- Store part #
- C383381
- Package / case
- 0806
- Category
- Fixed Inductors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,450 in stock
#C383381
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.70 | ₹107.00 |
| 100+ | ₹8.65 | ₹865.00 |
| 300+ | ₹7.63 | ₹2,289.00 |
| 3,000+ | ₹6.85 | ₹20,550.00 |
| 6,000+ | ₹6.24 | ₹37,440.00 |
| 9,000+ | ₹5.94 | ₹53,460.00 |
10 × ₹10.70
₹107.00
excl. GST
₹126.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MLP2016S4R7MT0S1
₹107.00 for 10 + GST
Specifications
- Current Rating
- 800mA
- Inductance
- 4.7uH
- Tolerance
- ±20%
- DC Resistance(DCR)
- 270mΩ
- Type
- Multilayer inductor
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Using low-loss magnetic materials to achieve low-loss inductors for power circuits. In addition to inductance values, multiple product types with various characteristics are available to suit different applications. - Type H: Low-loss material with low DC resistance, suited for heavy-load applications where power efficiency is critical. - Type V: Like Type H, uses low-loss magnetic material with excellent DC superimposition characteristics, suited for light-load applications where power efficiency is critical. - Standard Type: Standard product series covering a wide range of inductance values and various sizes. Operating temperature range: -40°C to +125°C (including self-temperature rise)
Applications
- Smartphones, tablets, digital cameras, camcorders, hard disk drives, power modules, etc.
