JSMSEMIDatasheet (PDF)

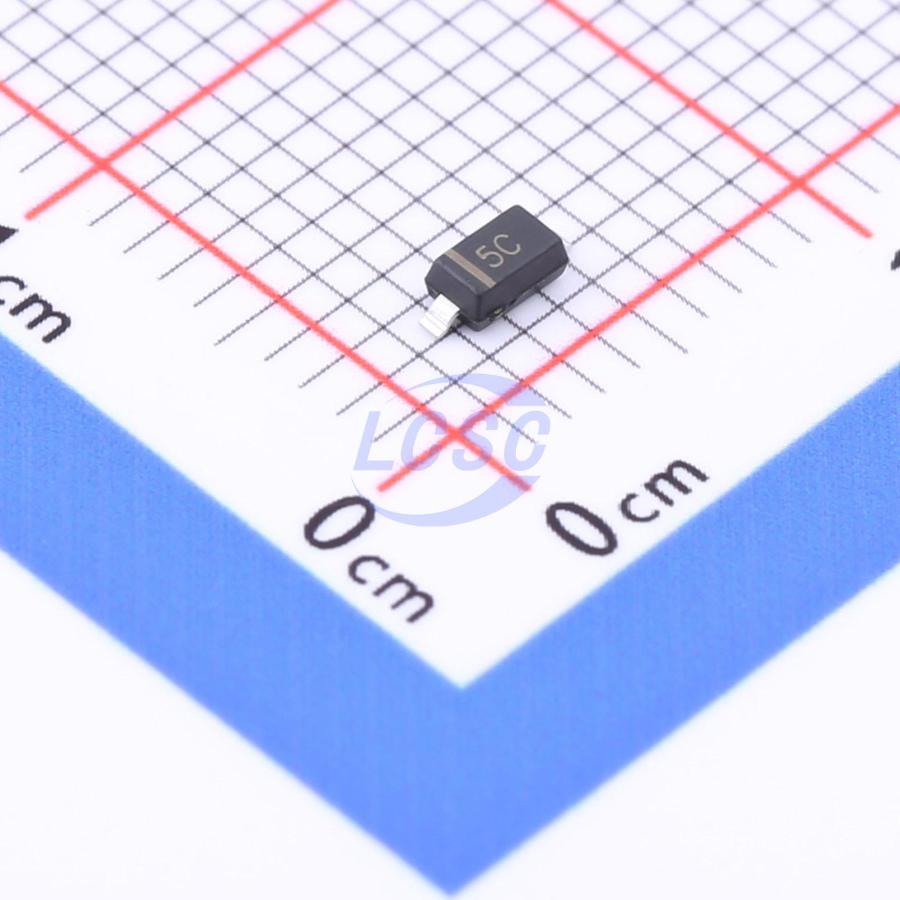

MM1Z11W
Zener Diode 11V 500mW Surface Mount SOD-123W
SOD-123WROHS CompliantActive
DIODE ZENER 11V 500mW SOD-123W
- Manufacturer
- JSMSEMI
- Manufacturer part #
- MM1Z11W
- Store part #
- C2856862
- Package / case
- SOD-123W
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,050 in stock
#C2856862
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.50 | ₹125.00 |
| 500+ | ₹1.98 | ₹990.00 |
| 3,000+ | ₹1.53 | ₹4,590.00 |
| 6,000+ | ₹1.36 | ₹8,160.00 |
| 24,000+ | ₹1.22 | ₹29,280.00 |
| 45,000+ | ₹1.14 | ₹51,300.00 |
50 × ₹2.50
₹125.00
excl. GST
₹147.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM1Z11W
₹125.00 for 50 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 10.4V~11.6V
- Zener Voltage(Nom)
- 11V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.033 g
Overview
Key features
- Total power dissipation: 500mW max.
- Wide Zener reverse voltage range: 2.0V ~ 75V.
- Small plastic package for SMT design.
- Tolerance approximately ±5%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C11Q#C2857056JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 1,450 | ₹2.25 · 1,450 in stock | View |
 | MM1Z11BW#C2856900JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 2,200 | ₹2.49 · 2,200 in stock | View |
 | MM1Z10W#C2856861JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 2,900 | ₹2.42 · 2,900 in stock | View |
 | MM1Z12W#C2856863JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 300 | ₹2.55 · 300 in stock | View |
 | BZT52C10Q#C2857055JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 2,900 | ₹2.25 · 2,900 in stock | View |
