JSMSEMIDatasheet (PDF)

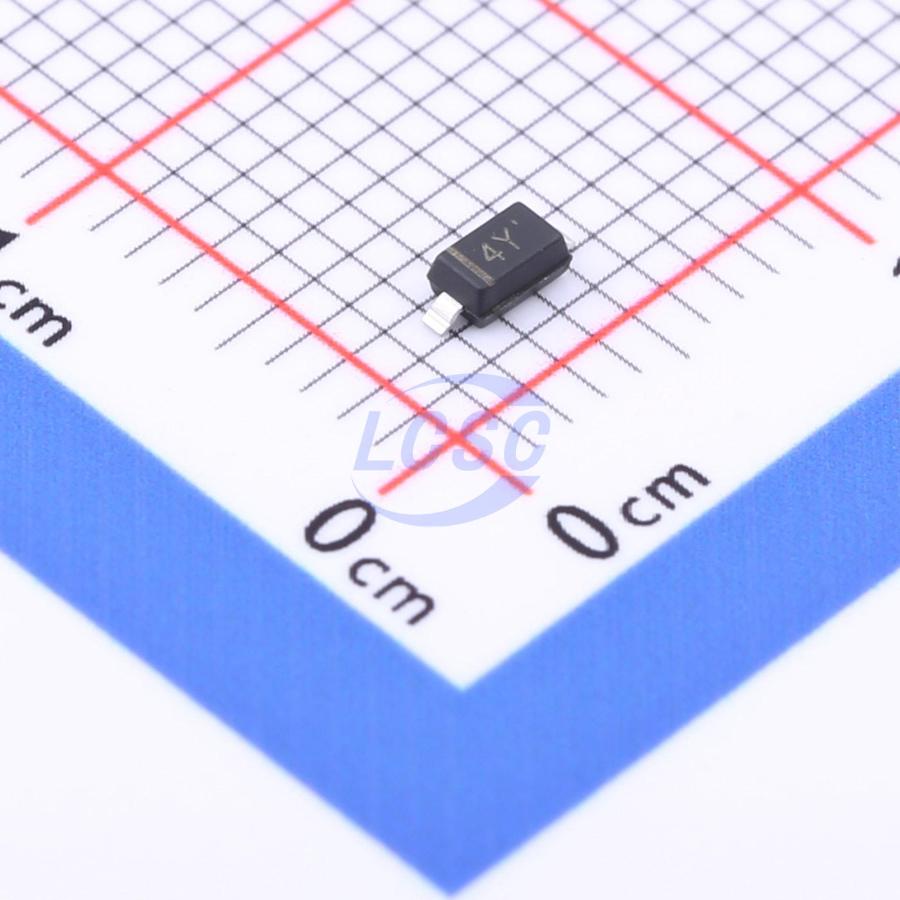

MM1Z7V5W
Zener Diode 7.5V 500mW Surface Mount SOD-123W
SOD-123WROHS CompliantActive
DIODE ZENER 7.5V 500mW SOD-123W
- Manufacturer
- JSMSEMI
- Manufacturer part #
- MM1Z7V5W
- Store part #
- C2856858
- Package / case
- SOD-123W
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,150 in stock
#C2856858
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.28 | ₹114.00 |
| 500+ | ₹1.77 | ₹885.00 |
| 3,000+ | ₹1.49 | ₹4,470.00 |
| 6,000+ | ₹1.32 | ₹7,920.00 |
| 24,000+ | ₹1.18 | ₹28,320.00 |
| 45,000+ | ₹1.10 | ₹49,500.00 |
50 × ₹2.28
₹114.00
excl. GST
₹134.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM1Z7V5W
₹114.00 for 50 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 500nA@4V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 7V~7.9V
- Zener Voltage(Nom)
- 7.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.033 g
Overview
Key features
- Total power dissipation: 500mW max.
- Wide Zener reverse voltage range, 2.0V ~ 75V.
- Small plastic package for SMT design.
- Tolerance approx. ±5%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C7V5Q#C2857081JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 2,650 | ₹2.49 · 2,650 in stock | View |
 | MM1Z7V5BW#C2856896JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 50 | ₹2.63 · 50 in stock | View |
 | MM1Z6V8W#C2856857JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 350 | ₹2.32 · 350 in stock | View |
 | BZT52C6V8Q#C2857080JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 2,600 | ₹2.32 · 2,600 in stock | View |
