Firstohm(First Resistor & Condenser)Datasheet (PDF)

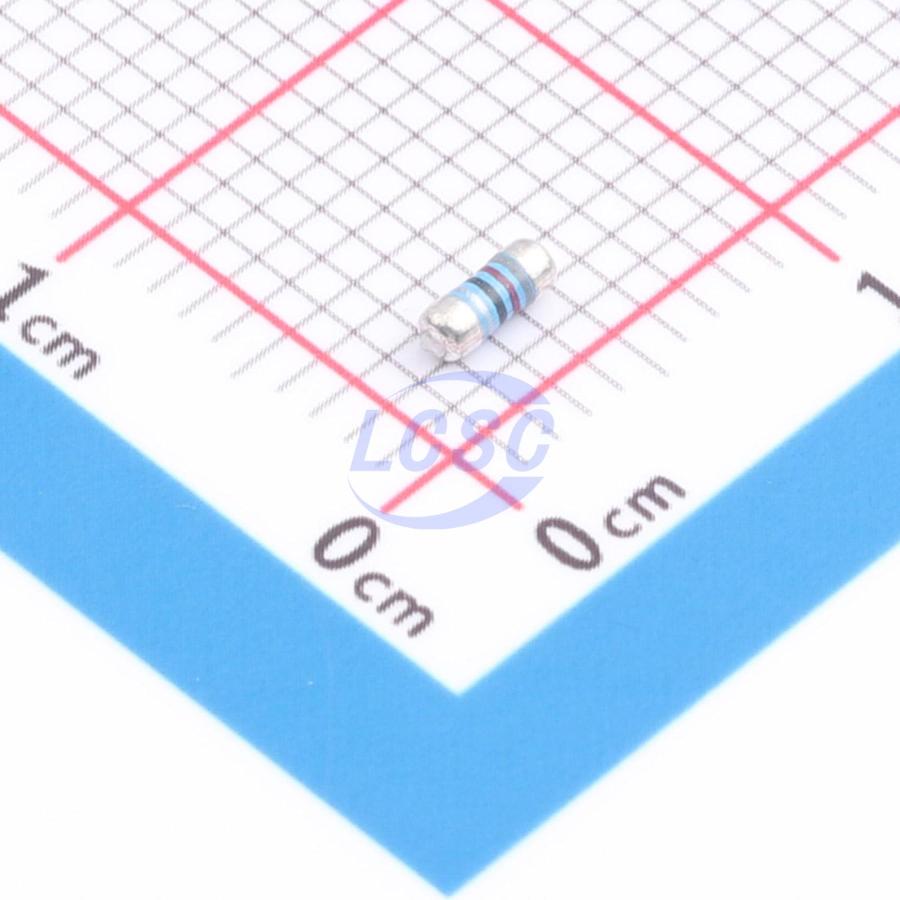

MM204F8R20TKRTR3K0
250mW 8.2Ω 200V Metal Film Resistor ±50ppm/℃ ±1% MELF-0204 Chip Resistor - Surface Mount
MELF-0204RoHSActive
- Manufacturer
- Firstohm(First Resistor & Condenser)
- Manufacturer part #
- MM204F8R20TKRTR3K0
- Store part #
- C232909
- Package / case
- MELF-0204
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C232909
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.62 | ₹92.40 |
| 200+ | ₹3.64 | ₹728.00 |
| 600+ | ₹3.08 | ₹1,848.00 |
| 3,000+ | ₹2.75 | ₹8,250.00 |
| 9,000+ | ₹2.47 | ₹22,230.00 |
| 21,000+ | ₹2.32 | ₹48,720.00 |
20 × ₹4.62
₹92.40
excl. GST
₹109.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM204F8R20TKRTR3K0
₹92.40 for 20 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 8.2Ω
- Voltage Rating
- 200V
- Type
- Metal Film Resistor
- Temperature Coefficient
- ±50ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+125℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.04 g
Overview
Key features
- SMD structure supported
- Sulfuration resistance tested
- Excellent solderability of terminal electrodes
- Superior heat dissipation compared to chip resistors
- Robust mechanical structure, resistant to vibration and thermal shock
- RoHS compliant, free of SVHC substances identified by ECHA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1MMF04TS04F8208D#C50086966SAE · MELF-0204 | SAE | MELF-0204 | 5,920 | ₹4.51 · 5,920 in stock | View |
 | 1MMF04TS04F8208N#C51901706SAE · MELF-0204 | SAE | MELF-0204 | 3,000 | ₹8.33 · 3,000 in stock | View |
 | MMA02040C8208FB300#C4143028VISHAY · MELF-0204 | VISHAY | MELF-0204 | 2,980 | ₹12.40 · 2,980 in stock | View |
| MMF25SFRE8R2#C2116837YAGEO · MELF-0204 | YAGEO | MELF-0204 | On request | Price on request | Quote | |
| MMF204FRE8R2#C2121625YAGEO · MELF-0204 | YAGEO | MELF-0204 | On request | Price on request | Quote | |
