onsemiDatasheet (PDF)

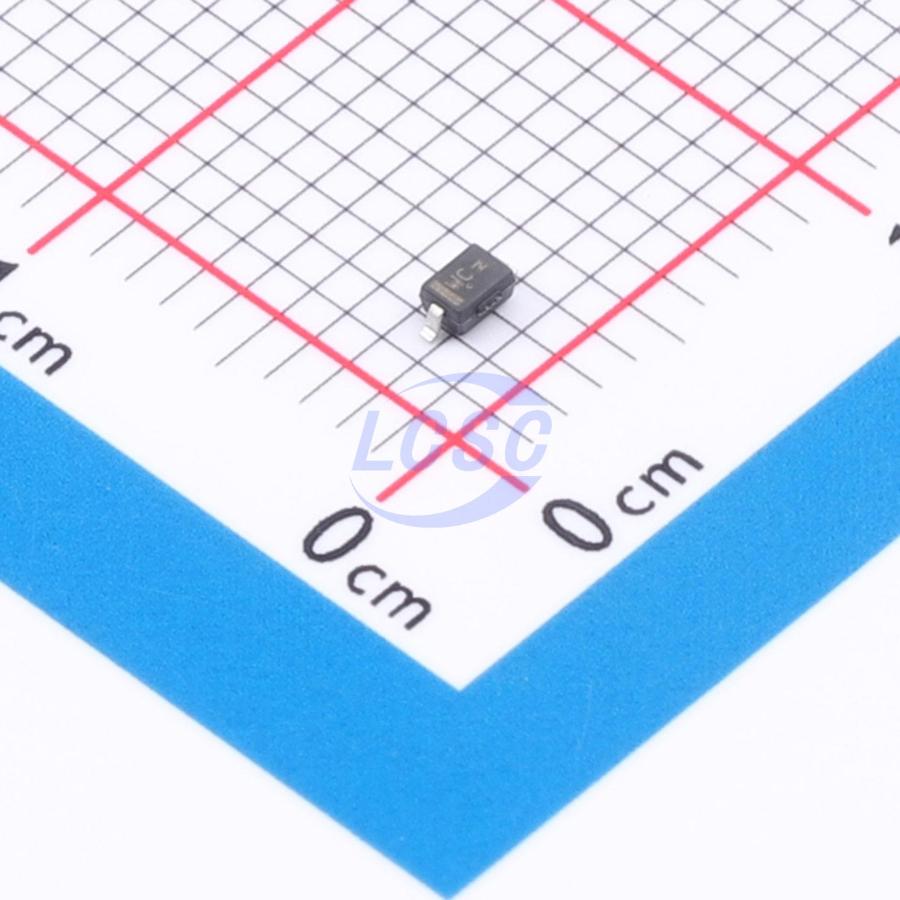

MM3Z11VST1G
1 Independent 10.78V~11.22V 11V SOD-323 Single Zener Diodes RoHS
SOD-323ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- MM3Z11VST1G
- Store part #
- C891575
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C891575
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.45 | ₹67.25 |
| 50+ | ₹11.31 | ₹565.50 |
| 150+ | ₹10.24 | ₹1,536.00 |
| 500+ | ₹9.43 | ₹4,715.00 |
| 3,000+ | ₹8.78 | ₹26,340.00 |
| 6,000+ | ₹8.45 | ₹50,700.00 |
5 × ₹13.45
₹67.25
excl. GST
₹79.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM3Z11VST1G
₹67.25 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 10.78V~11.22V
- Zener Voltage(Nom)
- 11V
- Impedance(Zzk)
- 160Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
This series of Zener diodes is packaged in a SOD- 323 surface mount package that has a power dissipation of 300 mW. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand- held portables, and high density PC boards.
Applications
- cellular phones
- hand- held portables
- high density PC boards
Key features
- Standard Zener Breakdown Voltage Range - 3.3 V to 36 V
- Steady State Power Rating of 300 mW
- Small Body Outline Dimensions: 0.067" x 0.049" (1.7 mm x 1.25 mm)
- Low Body Height: 0.037" (0.9 mm)
- Package Weight: 4.507 mg / unit
- ESD Rating of Class 3 (>16 kV) per Human Body Model
- Tight Tolerance VZ
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable
- These Devices are Pb- Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52B11S#C968111YANGJIE · SOD-323 | YANGJIE | SOD-323 | 760 | ₹3.57 · 760 in stock | View |
 | BZX384-B11,115#C454990Nexperia · SOD-323(SC-76) | Nexperia | SOD-323(SC-76) | 3,680 | ₹16.34 · 3,680 in stock | View |
 | MM3Z11BW#C5157073Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 3,000 | ₹2.24 · 3,000 in stock | View |
 | MM3Z11-TD#C51902122TDSEMIC · SOD-323 | TDSEMIC | SOD-323 | 3,000 | ₹1.15 · 3,000 in stock | View |
 | MM3Z11VT1G#C242271onsemi · SOD-323 | onsemi | SOD-323 | 16,980 | ₹10.17 · 16,980 in stock | View |
