onsemiDatasheet (PDF)

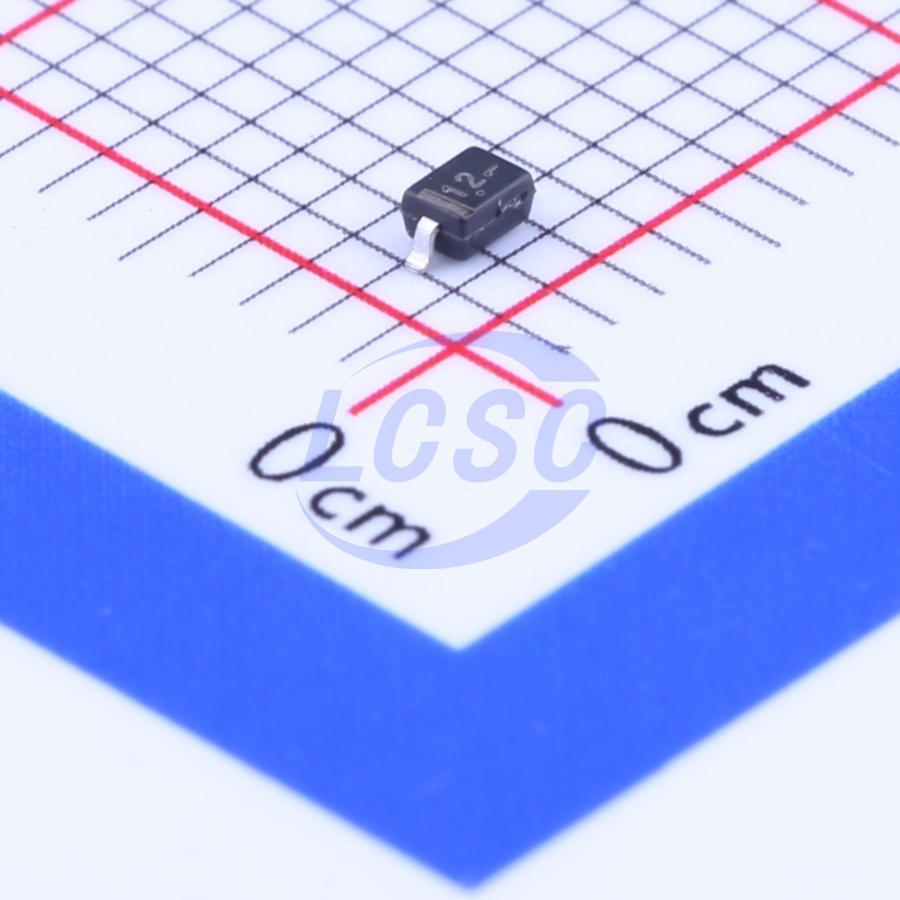

MM3Z27VT1G
Zener Diode Independent 27V 300mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 27V 300mW SOD-323
- Manufacturer
- onsemi
- Manufacturer part #
- MM3Z27VT1G
- Store part #
- C116441
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
990 in stock
#C116441
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.45 | ₹54.50 |
| 100+ | ₹4.29 | ₹429.00 |
| 300+ | ₹3.69 | ₹1,107.00 |
| 3,000+ | ₹3.14 | ₹9,420.00 |
| 6,000+ | ₹2.78 | ₹16,680.00 |
| 9,000+ | ₹2.61 | ₹23,490.00 |
10 × ₹5.45
₹54.50
excl. GST
₹64.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM3Z27VT1G
₹54.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA@18.9V
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 25.1V~28.9V
- Zener Voltage(Nom)
- 27V
- Impedance(Zzk)
- 300Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
This series of Zener diodes is packaged in a SOD−323 surface mount package that has a power dissipation of 300 mW. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Applications
- cellular phones
- hand held portables
- high density PC boards
Key features
- Standard Zener Breakdown Voltage Range − 2.4 V to 75 V
- Steady State Power Rating of 300 mW
- Small Body Outline Dimensions: 0.067” x 0.049” (1.7 mm×1.25 mm)
- Low Body Height: 0.035” (0.9 mm)
- Package Weight: 4.507 mg/Unit
- ESD Rating of Class 3 (>16 kV) per Human Body Model
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SZMM3Z27VT1G#C604780onsemi · SOD-323 | onsemi | SOD-323 | 5 | ₹18.32 · 5 in stock | View |
| MM3Z27V#C52145179YTL · SOD-323 | YTL | SOD-323 | 3,000 | ₹1.87 · 3,000 in stock | View | |
 | BZX384-C27,115#C2928909Nexperia · SOD-323 | Nexperia | SOD-323 | 140 | ₹5.36 · 140 in stock | View |
 | MM3Z27VST1G#C462853onsemi · SOD-323 | onsemi | SOD-323 | 7,160 | ₹3.77 · 7,160 in stock | View |
 | MM3Z27W#C2856991JSMSEMI · SOD-323W | JSMSEMI | SOD-323W | 2,300 | ₹2.57 · 2,300 in stock | View |
