onsemiDatasheet (PDF)

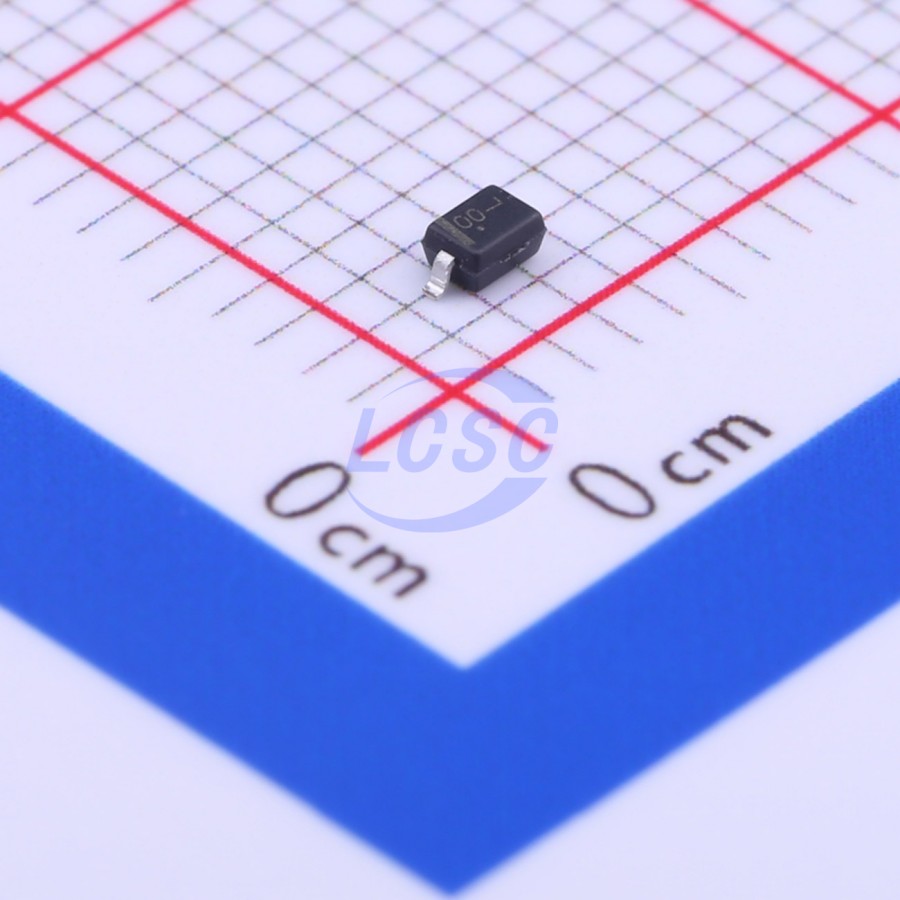

MM3Z2V4T1G
Zener Diode Independent 2.4V 300mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 2.4V 300mW SOD-323
- Manufacturer
- onsemi
- Manufacturer part #
- MM3Z2V4T1G
- Store part #
- C327499
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
250 in stock
#C327499
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.00 | ₹95.00 |
| 50+ | ₹15.03 | ₹751.50 |
| 150+ | ₹13.04 | ₹1,956.00 |
| 500+ | ₹11.56 | ₹5,780.00 |
| 3,000+ | ₹9.95 | ₹29,850.00 |
| 6,000+ | ₹9.35 | ₹56,100.00 |
5 × ₹19.00
₹95.00
excl. GST
₹112.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM3Z2V4T1G
₹95.00 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50uA
- Impedance(Zzt)
- 100Ω
- Zener Voltage(Range)
- 2.2V~2.6V
- Zener Voltage(Nom)
- 2.4V
- Impedance(Zzk)
- 1kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
This series of Zener diodes is packaged in a SOD−323 surface mount package that has a power dissipation of 300 mW. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Applications
- cellular phones
- hand held portables
- high density PC boards
Key features
- Standard Zener Breakdown Voltage Range − 2.4 V to 75 V
- Steady State Power Rating of 300 mW
- Small Body Outline Dimensions: 0.067” x 0.049” (1.7 mm×1.25 mm)
- Low Body Height: 0.035” (0.9 mm)
- Package Weight: 4.507 mg/Unit
- ESD Rating of Class 3 (>16 kV) per Human Body Model
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM3Z2V4#C52145165YTL · SOD-323 | YTL | SOD-323 | 2,850 | ₹1.87 · 2,850 in stock | View |
 | BZT52C2V4S#C968141YANGJIE · SOD-323 | YANGJIE | SOD-323 | 2,320 | ₹3.33 · 2,320 in stock | View |
 | LM3Z2V4T1G#C131817LRC · SOD-323 | LRC | SOD-323 | 1,800 | ₹2.57 · 1,800 in stock | View |
 | MM3Z2V4#C216738Shikues · SOD-323 | Shikues | SOD-323 | 1,650 | ₹2.06 · 1,650 in stock | View |
 | MM3Z2V4W#C2856966JSMSEMI · SOD-323W | JSMSEMI | SOD-323W | 100 | ₹2.54 · 100 in stock | View |
