onsemiDatasheet (PDF)

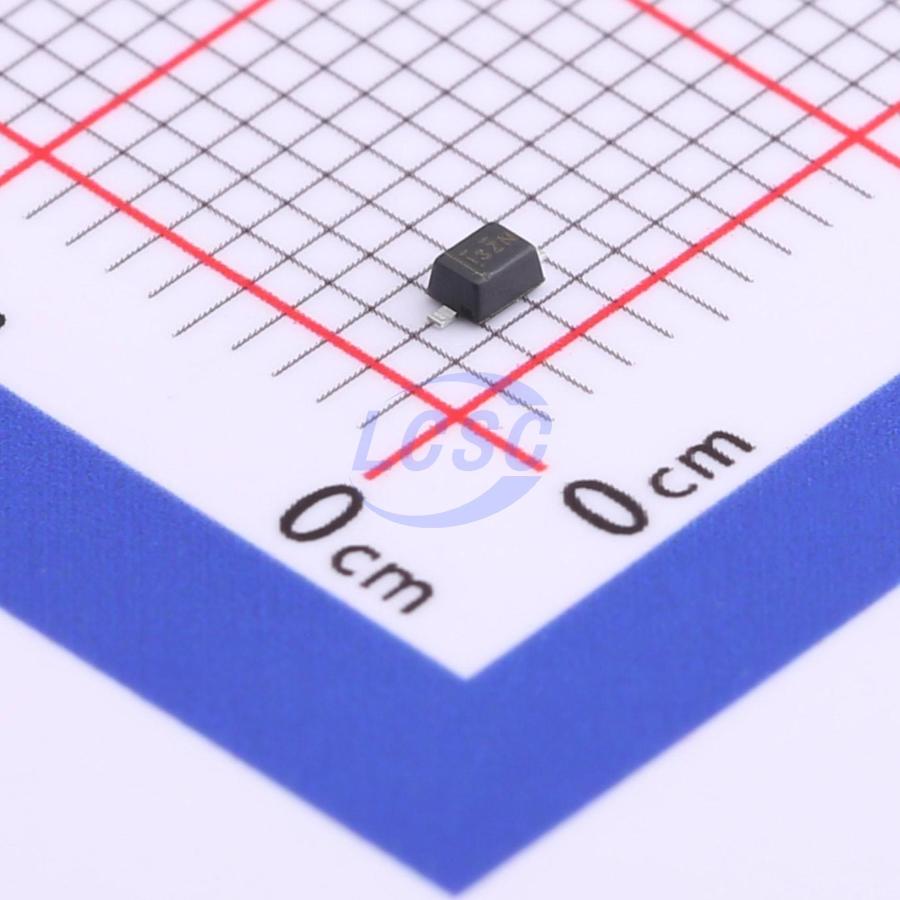

MM3Z3V3B
Zener Diode 3.3V 200mW Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE ZENER 3.3V 200mW SOD-323F
- Manufacturer
- onsemi
- Manufacturer part #
- MM3Z3V3B
- Store part #
- C556407
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
190 in stock
#C556407
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.38 | ₹113.80 |
| 100+ | ₹9.45 | ₹945.00 |
| 300+ | ₹8.47 | ₹2,541.00 |
| 3,000+ | ₹7.62 | ₹22,860.00 |
| 6,000+ | ₹7.04 | ₹42,240.00 |
| 9,000+ | ₹6.75 | ₹60,750.00 |
10 × ₹11.38
₹113.80
excl. GST
₹134.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM3Z3V3B
₹113.80 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 4.5uA@1V
- Impedance(Zzt)
- 89Ω
- Zener Voltage(Range)
- 3.23V~3.37V
- Zener Voltage(Nom)
- 3.3V
- Impedance(Zzk)
- 564Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.02 g
Overview
Key features
- Wide Zener Voltage Range Selection, 2-4V to 75V
- VZ Tolerance Selection of ± 2% (B Series)
- Very Small and Thin SMD package
- Matte Tin(Sn) finish, Pb Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BZT52B3V3JS-TP#C3731188MCC · SOD-323 | MCC | SOD-323 | 3,000 | ₹4.30 · 3,000 in stock | View | |
 | BZT52B3V3S#C545387LGE · SOD-323 | LGE | SOD-323 | 11,590 | ₹2.82 · 11,590 in stock | View |
 | BZT52B3V3S#C18547701MSKSEMI · SOD-323 | MSKSEMI | SOD-323 | 550 | ₹2.33 · 550 in stock | View |
 | BZT52B3V3S#C41433824YFW · SOD-323 | YFW | SOD-323 | 2,180 | ₹2.94 · 2,180 in stock | View |
 | BZT52B3V3S#C52204521YTL · SOD-323 | YTL | SOD-323 | 850 | ₹2.18 · 850 in stock | View |
