onsemiDatasheet (PDF)

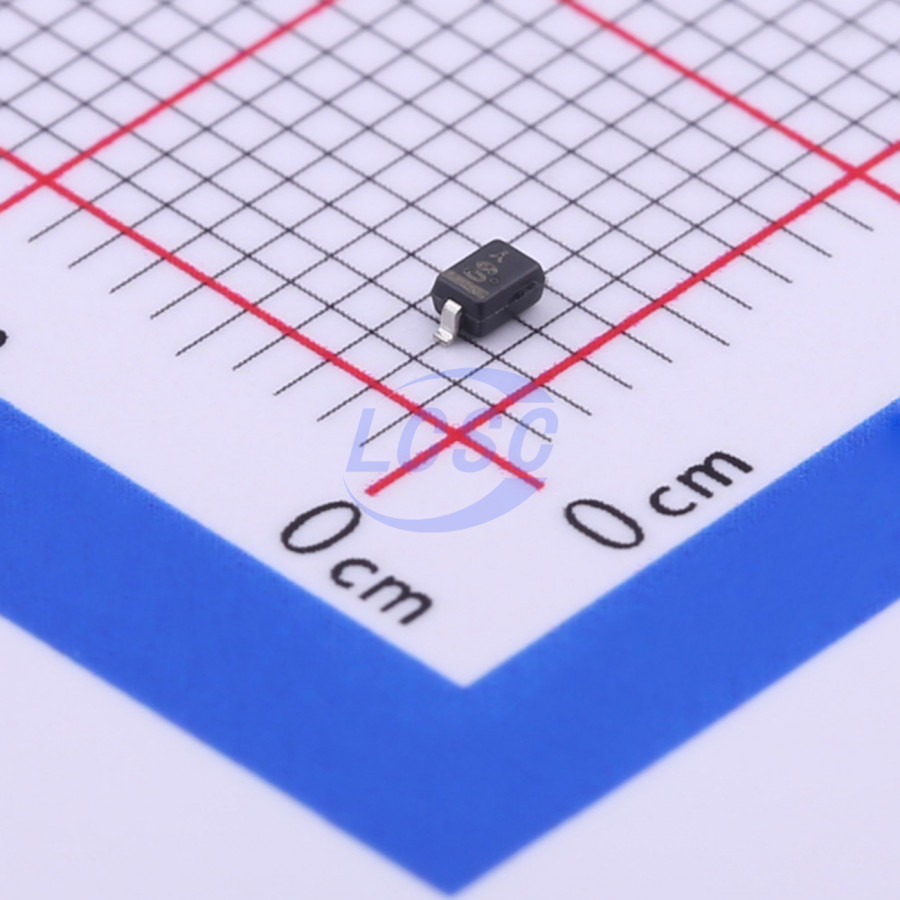

MM3Z4V7T1G
Zener Diode Independent 4.7V 300mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 4.7V 300mW SOD-323
- Manufacturer
- onsemi
- Manufacturer part #
- MM3Z4V7T1G
- Store part #
- C236205
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
570 in stock
#C236205
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.53 | ₹75.30 |
| 100+ | ₹6.15 | ₹615.00 |
| 300+ | ₹5.46 | ₹1,638.00 |
| 3,000+ | ₹4.45 | ₹13,350.00 |
| 6,000+ | ₹4.04 | ₹24,240.00 |
| 9,000+ | ₹3.84 | ₹34,560.00 |
10 × ₹7.53
₹75.30
excl. GST
₹88.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM3Z4V7T1G
₹75.30 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 3uA@2V
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 4.4V~5V
- Zener Voltage(Nom)
- 4.7V
- Impedance(Zzk)
- 800Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
This series of Zener diodes is packaged in a SOD−323 surface mount package that has a power dissipation of 300 mW. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Applications
- cellular phones
- hand held portables
- high density PC boards
Key features
- Standard Zener Breakdown Voltage Range − 2.4 V to 75 V
- Steady State Power Rating of 300 mW
- Small Body Outline Dimensions: 0.067” x 0.049” (1.7 mm×1.25 mm)
- Low Body Height: 0.035” (0.9 mm)
- Package Weight: 4.507 mg/Unit
- ESD Rating of Class 3 (>16 kV) per Human Body Model
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX384-C4V7,115#C454980Nexperia · SOD-323 | Nexperia | SOD-323 | 130 | ₹5.95 · 130 in stock | View |
 | BZT52C4V7SQ#C2942526YANGJIE · SOD-323 | YANGJIE | SOD-323 | 2,740 | ₹4.17 · 2,740 in stock | View |
 | MM3Z4V7ST1G#C154578onsemi · SOD-323 | onsemi | SOD-323 | 8,025 | ₹9.62 · 8,025 in stock | View |
 | MM3Z4V7#C216745Shikues · SOD-323 | Shikues | SOD-323 | 1,400 | ₹2.28 · 1,400 in stock | View |
 | MM3Z4V7#C22399891R+O · SOD-323 | R+O | SOD-323 | 600 | ₹2.54 · 600 in stock | View |
