NexperiaDatasheet (PDF)

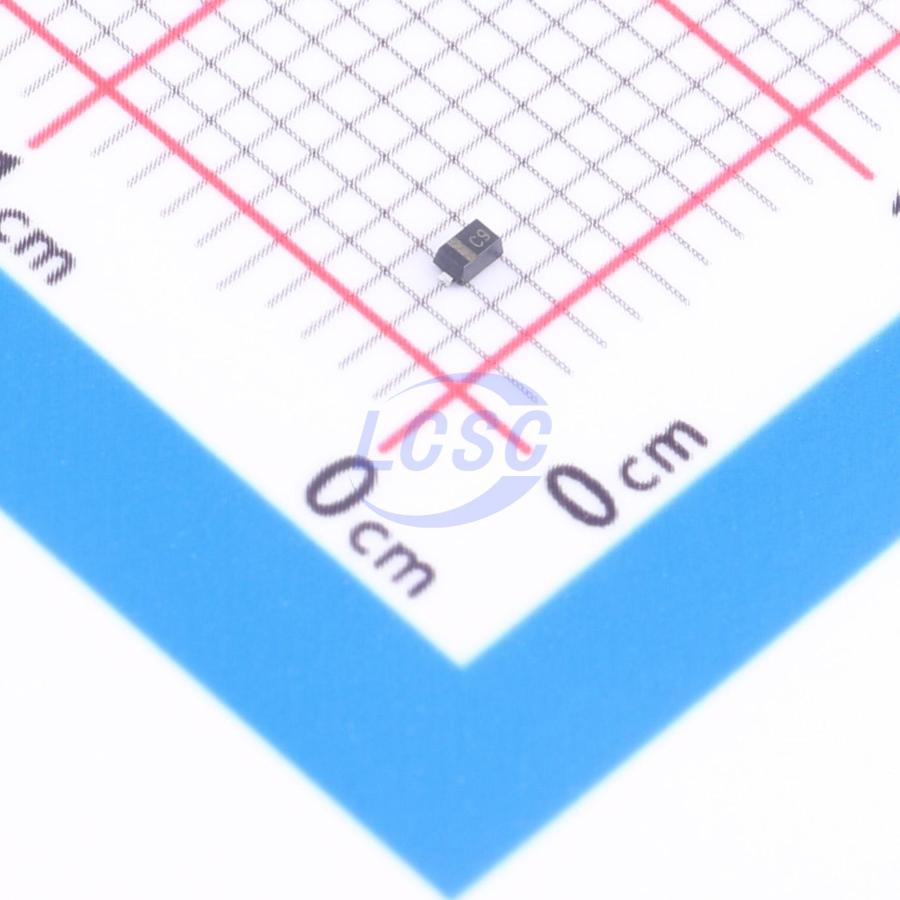

MM5Z5V1T5GF
1 Independent 5V~5.2V 5.1V SOD-523 Single Zener Diodes RoHS
SOD-523ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- MM5Z5V1T5GF
- Store part #
- C3729634
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C3729634
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹26.68 | ₹26.68 |
| 10+ | ₹26.25 | ₹262.50 |
| 30+ | ₹25.81 | ₹774.30 |
| 100+ | ₹25.39 | ₹2,539.00 |
1 × ₹26.68
₹26.68
excl. GST
₹31.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM5Z5V1T5GF
₹26.68 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 2uA@2V
- Zener Voltage(Range)
- 5V~5.2V
- Zener Voltage(Nom)
- 5.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.084 g
Overview
General- purpose Zener diodes in an SOD523 (SC- 79) ultra small flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 300mW
- Tolerance series: ± 2%
- Wide working voltage range: nominal 2.4V to 36V
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX585-B5V1,115#C503372Nexperia · SOD-523 | Nexperia | SOD-523 | 3 | ₹55.10 · 3 in stock | View |
 | BZX585-C5V1,115#C282539Nexperia · SOD-523(SC-79) | Nexperia | SOD-523(SC-79) | On request | ₹5.09 · 0 in stock | View |
 | BZT52C5V1T-7#C151562DIODES · SOD-523 | DIODES | SOD-523 | 7,655 | ₹56.72 · 7,655 in stock | View |
 | MM5Z5V1#C5157543LGE · SOD-523 | LGE | SOD-523 | 900 | ₹2.09 · 900 in stock | View |
 | BZX584B5V1#C503683JSCJ · SOD-523 | JSCJ | SOD-523 | 5,440 | ₹4.42 · 5,440 in stock | View |
