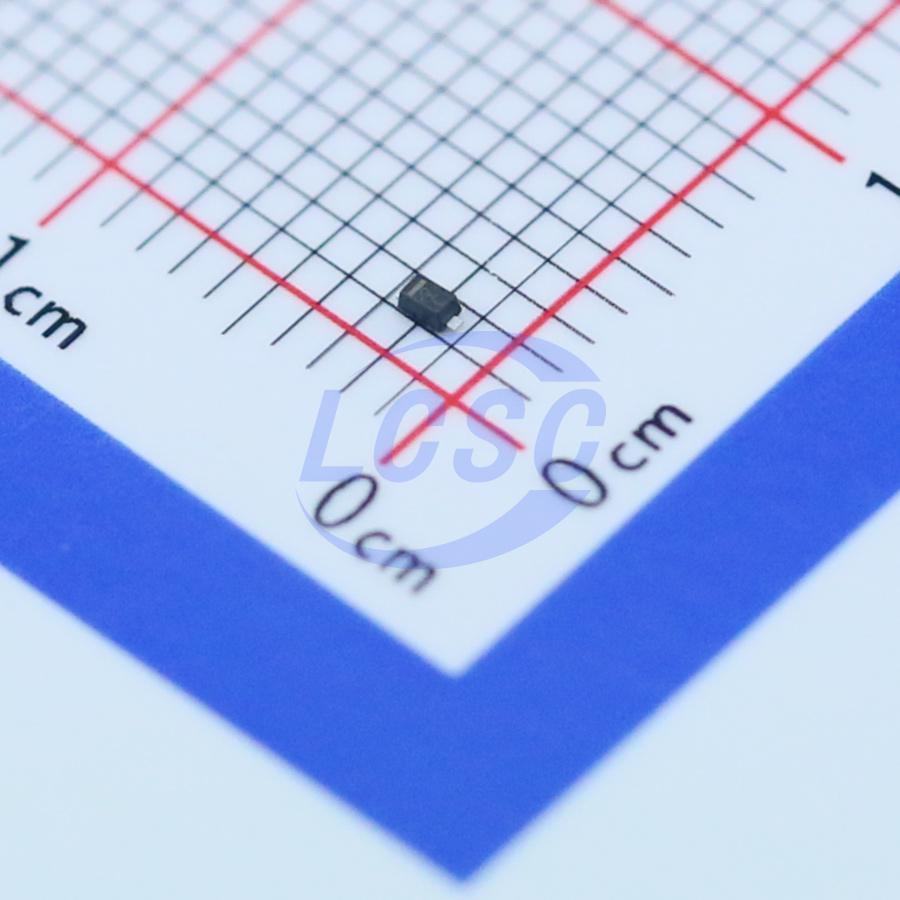

MM5Z8V2T1G
Zener Diode Independent 8.2V 500mW Surface Mount SOD-523
SOD-523ROHS3 CompliantActive
DIODE ZENER 8.2V 500mW SOD-523
- Manufacturer
- onsemi
- Manufacturer part #
- MM5Z8V2T1G
- Store part #
- C99679
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
135 in stock
#C99679
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.00 | ₹50.00 |
| 50+ | ₹7.89 | ₹394.50 |
| 150+ | ₹6.83 | ₹1,024.50 |
| 500+ | ₹6.03 | ₹3,015.00 |
| 3,000+ | ₹5.40 | ₹16,200.00 |
| 6,000+ | ₹5.08 | ₹30,480.00 |
5 × ₹10.00
₹50.00
excl. GST
₹59.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM5Z8V2T1G
₹50.00 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 700nA@5V
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 7.7V~8.7V
- Zener Voltage(Nom)
- 8.2V
- Impedance(Zzk)
- 160Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
This series of Zener diodes is packaged in a SOD−523 surface mount package. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Applications
- cellular phones
- hand held portables
- high density PC boards
Key features
- Standard Zener Breakdown Voltage Range − 2.4 V to 75 V
- Steady State Power Rating of 500 mW
- Small Body Outline Dimensions: 0.047" x 0.032" (1.20 mm x 0.80 mm)
- Low Body Height: 0.028" (0.7 mm)
- ESD Rating of Class 3 (>16 kV) per Human Body Model
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb −Free and are RoHS Compliant
