NexperiaDatasheet (PDF)
MMBD4148,215
Diode 75V 215mA Surface Mount SOT-23-3
SOT-23-3ROHS3 CompliantActive
DIODE GP 75V 215mA SOT-23-3
- Manufacturer
- Nexperia
- Manufacturer part #
- MMBD4148,215
- Store part #
- C2928912
- Package / case
- SOT-23-3
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,660 in stock
#C2928912
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.55 | ₹65.50 |
| 100+ | ₹5.15 | ₹515.00 |
| 300+ | ₹4.45 | ₹1,335.00 |
| 3,000+ | ₹3.92 | ₹11,760.00 |
| 6,000+ | ₹3.49 | ₹20,940.00 |
| 9,000+ | ₹3.28 | ₹29,520.00 |
10 × ₹6.55
₹65.50
excl. GST
₹77.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBD4148,215
₹65.50 for 10 + GST
Specifications
- Reverse Recovery Time (trr)
- 4ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 75V
- Pd - Power Dissipation
- 250mW
- Voltage - Forward(Vf@If)
- 1.25V@150mA
- Reverse Leakage Current (Ir)
- 500nA@75V
- Non-Repetitive Peak Forward Surge Current
- 4A
- Current - Rectified
- 215mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.025 g
Overview

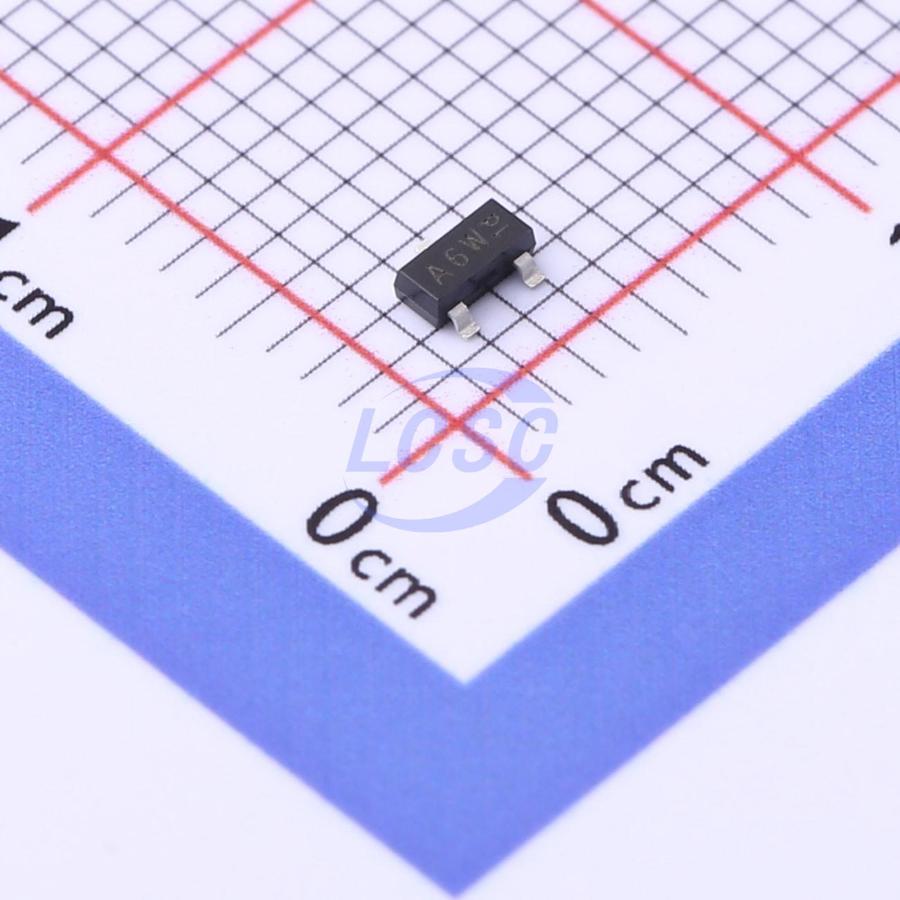

High-speed switching diode, encapsulated in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
Applications
- High-speed switching
- General-purpose switching
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAS16HYFHT116#C17276520ROHM · SOT-23 | ROHM | SOT-23 | 3,000 | ₹6.51 · 3,000 in stock | View |
 | BAS16-TP#C435858MCC · SOT-23 | MCC | SOT-23 | 1,350 | ₹3.98 · 1,350 in stock | View |
 | MMBD914LT1G-CN#C45369241ChipNobo · SOT-23 | ChipNobo | SOT-23 | 1,250 | ₹1.89 · 1,250 in stock | View |
 | LMBD3004CLT1G#C5266517LRC · SOT-23 | LRC | SOT-23 | 2,590 | ₹7.75 · 2,590 in stock | View |
 | BAS16#C49435671Huixin · SOT-23 | Huixin | SOT-23 | 3,000 | ₹3.29 · 3,000 in stock | View |
