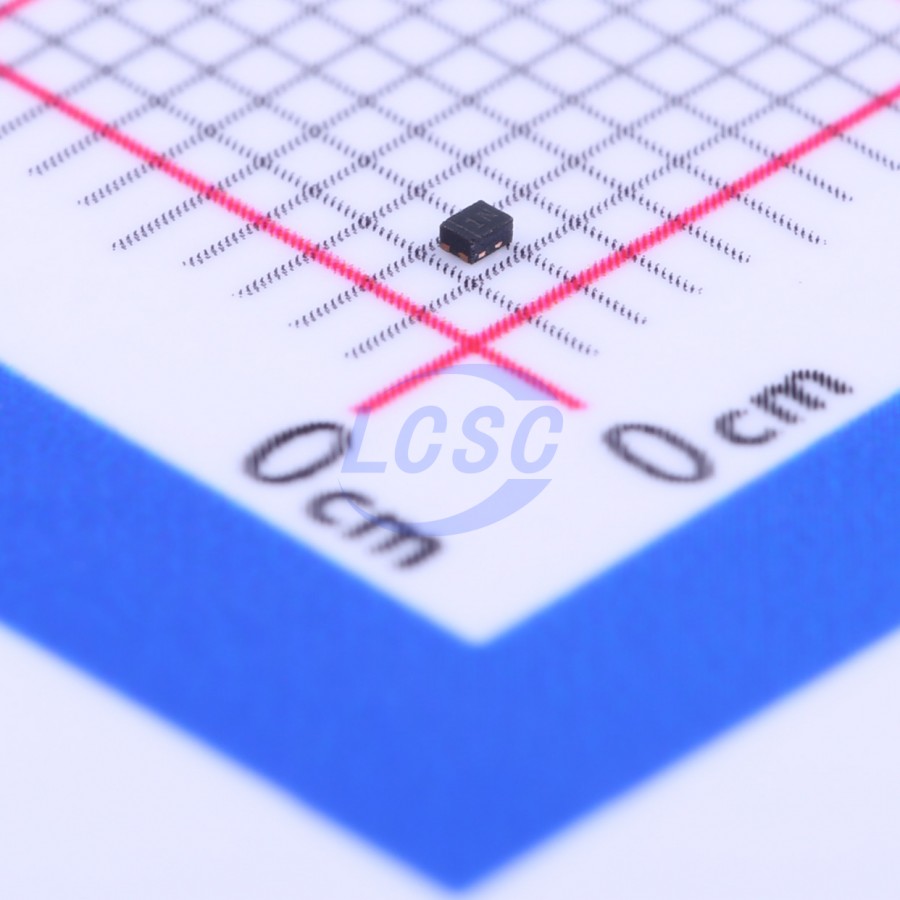

MMBT3904FA-7B
Bipolar (BJT) Transistor NPN 40V 200mA 300MHz 435mW Surface Mount DFN-3L(0.6x0.8)
DFN-3L(0.6x0.8)ROHS3 CompliantActive
TRANS NPN 40V 200mA DFN-3L(0.6x0.8)
- Manufacturer
- DIODES
- Manufacturer part #
- MMBT3904FA-7B
- Store part #
- C151577
- Package / case
- DFN-3L(0.6x0.8)
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
67 in stock
#C151577
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.14 | ₹90.14 |
| 10+ | ₹73.85 | ₹738.50 |
| 30+ | ₹66.90 | ₹2,007.00 |
| 100+ | ₹58.00 | ₹5,800.00 |
| 500+ | ₹54.08 | ₹27,040.00 |
| 1,000+ | ₹51.70 | ₹51,700.00 |
1 × ₹90.14
₹90.14
excl. GST
₹106.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
MMBT3904FA-7B
₹90.14 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 50nA
- Transition frequency(fT)
- 300MHz
- Collector - Emitter Voltage VCEO
- 40V
- Emitter-Base Voltage VEBO
- 6V
- DC Current Gain
- 100
- Pd - Power Dissipation
- 435mW
- Current - Collector(Ic)
- 200mA
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 200mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
Key features
- BVCEO > 40V
- lC = 200mA high Collector Current
- PD = 435mW Power Dissipation
- 0.48mm² package footprint, 16 times smaller than SOT23
- 0.4mm height package minimizing off-board profile
- Complementary PNP Type MMBT3906FA
- Totally Lead-Free & Fully RoHS compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMBT3904MB,315#C552710Nexperia · SOT-883-3 | Nexperia | SOT-883-3 | On request | ₹3.08 · 0 in stock | View |
