DIODESDatasheet (PDF)

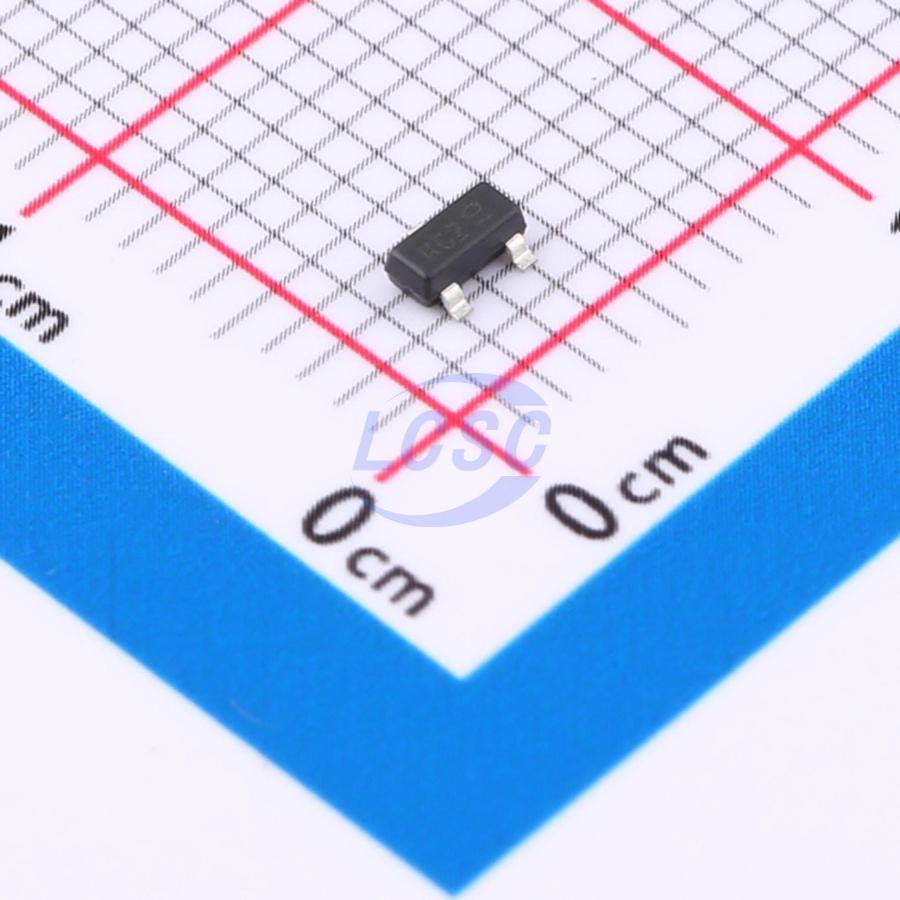

MMBZ5222B-7-F
Zener Diode 2.5V 350mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 2.5V 350mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- MMBZ5222B-7-F
- Store part #
- C5157728
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
520 in stock
#C5157728
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.54 | ₹50.80 |
| 200+ | ₹2.49 | ₹498.00 |
| 600+ | ₹2.45 | ₹1,470.00 |
| 3,000+ | ₹2.42 | ₹7,260.00 |
20 × ₹2.54
₹50.80
excl. GST
₹59.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ5222B-7-F
₹50.80 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 100uA@1V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 2.38V~2.63V
- Zener Voltage(Nom)
- 2.5V
- Impedance(Zzk)
- 1.2kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.036 g
Overview
Key features
- Planar Die Construction
- 350mW Power Dissipation on FR - 4 PCB
- Ideally Suited for Automated Assembly Processes
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- This part is qualified to JEDEC standards (as references in AEC - Q) for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SZMMBZ5222BLT1G#C894580onsemi · SOT-23 | onsemi | SOT-23 | 1,000 | ₹24.37 · 1,000 in stock | View |
 | LMBZ5221BLT1G#C411194LRC · SOT-23 | LRC | SOT-23 | 460 | ₹3.03 · 460 in stock | View |
 | MMBZ5221BLT1G#C512990onsemi · SOT-23 | onsemi | SOT-23 | 1,910 | ₹15.32 · 1,910 in stock | View |
 | BZX84C2V4A#C5155269Jingdao Microelectronics · SOT-23 | Jingdao Microelectronics | SOT-23 | 2,600 | ₹1.94 · 2,600 in stock | View |
 | BZX84C2V4Q#C2942547YANGJIE · SOT-23 | YANGJIE | SOT-23 | 480 | ₹5.33 · 480 in stock | View |
