DIODESDatasheet (PDF)

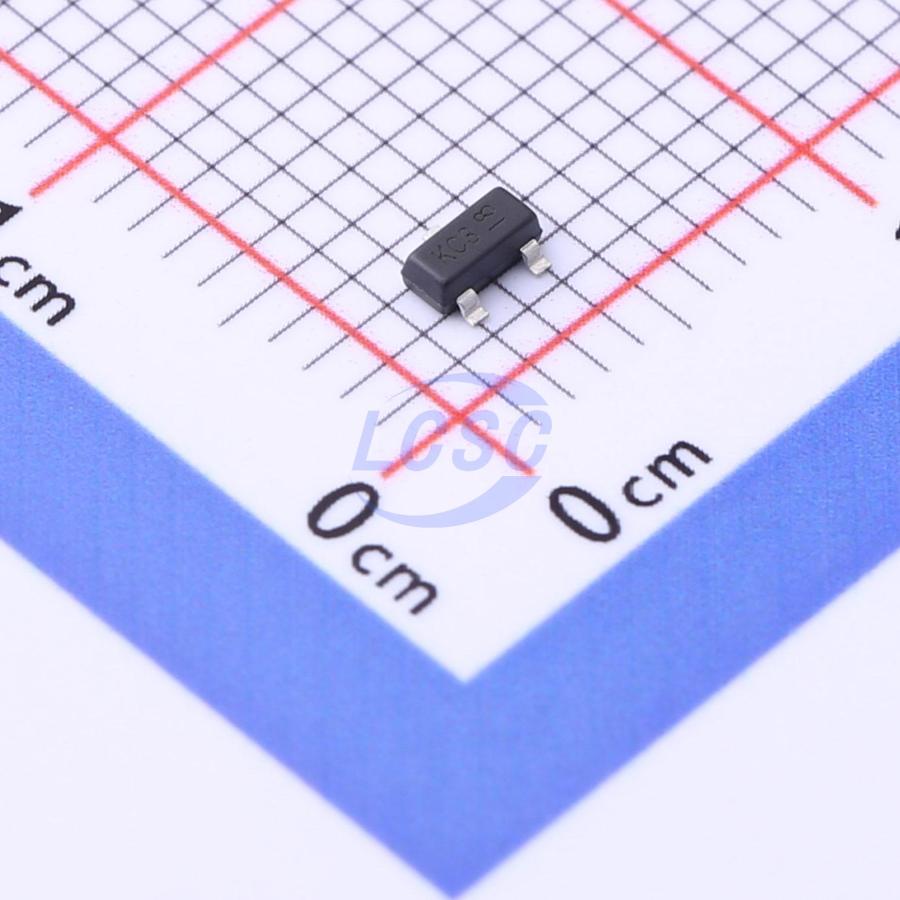

MMBZ5223B-7-F
Zener Diode Independent 2.7V 350mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 2.7V 350mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- MMBZ5223B-7-F
- Store part #
- C2978927
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
220 in stock
#C2978927
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.27 | ₹105.40 |
| 200+ | ₹4.31 | ₹862.00 |
| 600+ | ₹3.78 | ₹2,268.00 |
| 3,000+ | ₹3.47 | ₹10,410.00 |
| 9,000+ | ₹3.20 | ₹28,800.00 |
| 21,000+ | ₹3.04 | ₹63,840.00 |
20 × ₹5.27
₹105.40
excl. GST
₹124.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ5223B-7-F
₹105.40 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 75uA@1V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 2.57V~2.84V
- Zener Voltage(Nom)
- 2.7V
- Impedance(Zzk)
- 1.3kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.032 g
Overview
Key features
- Planar Die Construction
- 350mW Power Dissipation on FR - 4 PCB
- Ideally Suited for Automated Assembly Processes
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- This part is qualified to JEDEC standards (as references in AEC - Q) for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMBZ5223B#C3041319Slkor · SOT-23 | Slkor | SOT-23 | 720 | ₹3.25 · 720 in stock | View |
 | BZX84C2V7#C118561ST(Semtech) · TO-236 | ST(Semtech) | TO-236 | 1,700 | ₹3.96 · 1,700 in stock | View |
 | BZX84C2V7#C51315305CBI · SOT-23 | CBI | SOT-23 | 3,000 | ₹1.88 · 3,000 in stock | View |
 | BZX84C2V7#C5244777DIODES · SOT-23 | DIODES | SOT-23 | 50 | ₹15.92 · 50 in stock | View |
 | BZX84C2V7#C5359871LGE · SOT-23 | LGE | SOT-23 | 3,420 | ₹3.44 · 3,420 in stock | View |
