DIODESDatasheet (PDF)

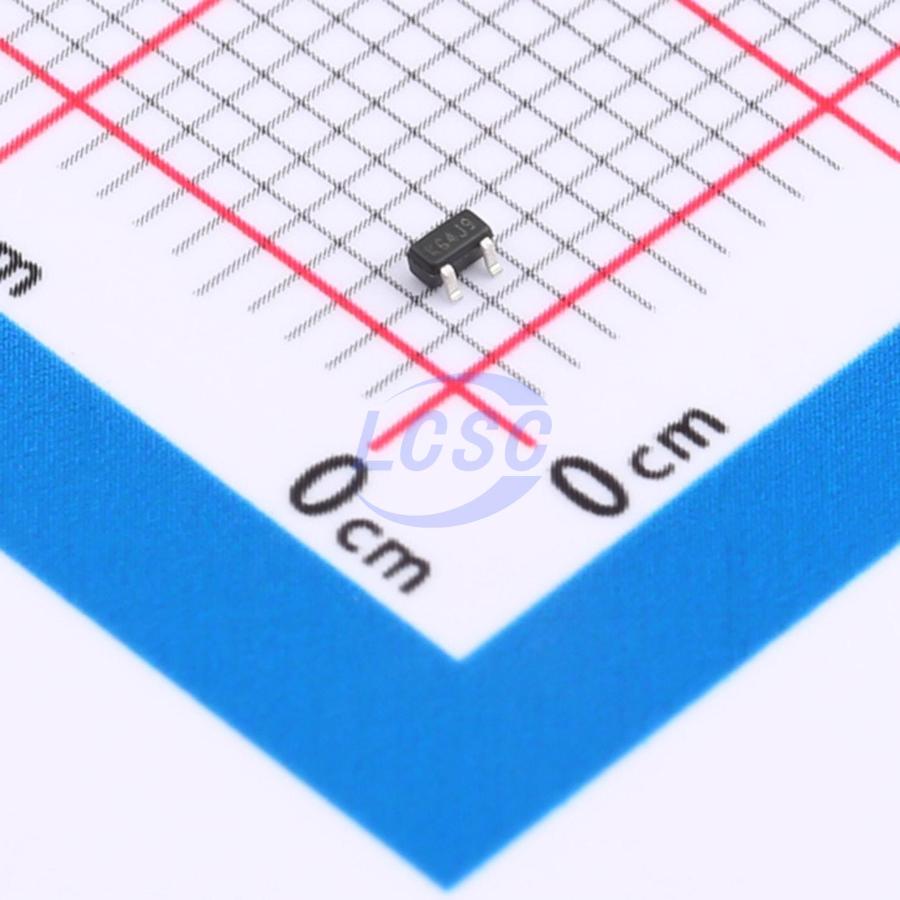

MMBZ5229BT-7-F
Zener Diode 4.3V 150mW Surface Mount SOT-523
SOT-523ROHS3 CompliantActive
DIODE ZENER 4.3V 150mW SOT-523
- Manufacturer
- DIODES
- Manufacturer part #
- MMBZ5229BT-7-F
- Store part #
- C6990818
- Package / case
- SOT-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C6990818
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.14 | ₹65.70 |
| 50+ | ₹12.95 | ₹647.50 |
| 150+ | ₹12.83 | ₹1,924.50 |
| 500+ | ₹12.70 | ₹6,350.00 |
5 × ₹13.14
₹65.70
excl. GST
₹77.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ5229BT-7-F
₹65.70 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 150mW
- Reverse Leakage Current (Ir)
- 5uA
- Impedance(Zzt)
- 22Ω
- Zener Voltage(Range)
- 4.09V~4.52V
- Zener Voltage(Nom)
- 4.3V
- Impedance(Zzk)
- 2kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.014 g
Overview
Key features
- Ultra-Small Surface Mount Package
- Planar Die Construction
- General Purpose
- Ideally Suited for Automated Assembly Processes
- Lead Free/RoHS Compliant
- "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMBZ5230BT-7-F#C7303288DIODES · SOT-523 | DIODES | SOT-523 | 5 | ₹21.99 · 5 in stock | View |
 | MMBZ5228BT-7-F#C6594418DIODES · SOT-523 | DIODES | SOT-523 | 30 | ₹11.21 · 30 in stock | View |
 | BZX84C3V9T-7-F#C6475256DIODES · SOT-523 | DIODES | SOT-523 | On request | ₹7.10 · 0 in stock | View |
