DIODESDatasheet (PDF)

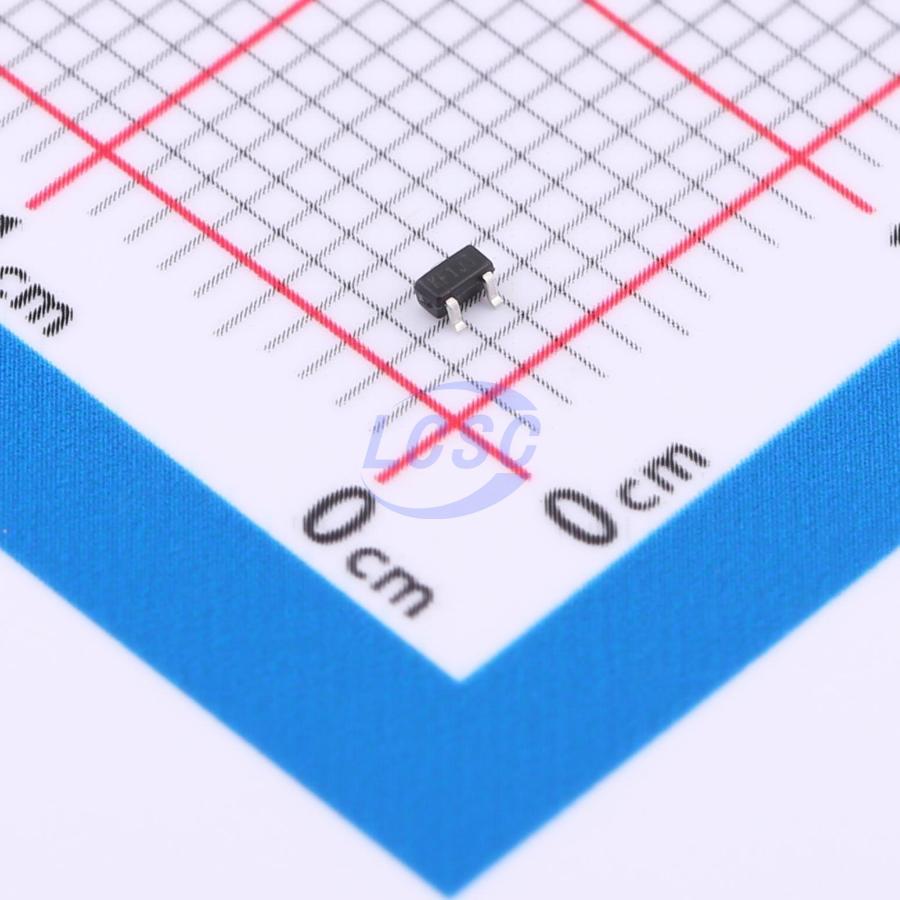

MMBZ5236BT-7-F
Zener Diode 7.5V 150mW Surface Mount SOT-523
SOT-523ROHS3 CompliantActive
DIODE ZENER 7.5V 150mW SOT-523
- Manufacturer
- DIODES
- Manufacturer part #
- MMBZ5236BT-7-F
- Store part #
- C5799156
- Package / case
- SOT-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C5799156
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.21 | ₹56.05 |
| 50+ | ₹11.05 | ₹552.50 |
| 150+ | ₹10.94 | ₹1,641.00 |
| 500+ | ₹10.84 | ₹5,420.00 |
5 × ₹11.21
₹56.05
excl. GST
₹66.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ5236BT-7-F
₹56.05 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 150mW
- Reverse Leakage Current (Ir)
- 3uA@6V
- Impedance(Zzt)
- 6Ω
- Zener Voltage(Range)
- 7.13V~7.88V
- Zener Voltage(Nom)
- 7.5V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
Key features
- Ultra-Small Surface Mount Package
- Planar Die Construction
- General Purpose
- Ideally Suited for Automated Assembly Processes
- Lead Free/RoHS Compliant
- "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMBZ5237BT-7-F#C5674165DIODES · SOT-523 | DIODES | SOT-523 | 50 | ₹11.50 · 50 in stock | View |
 | BZX84C7V5T-7-F#C5566760DIODES · SOT-523 | DIODES | SOT-523 | On request | ₹9.21 · 0 in stock | View |
 | MMBZ5235BT-7-F#C5249063DIODES · SOT-523 | DIODES | SOT-523 | On request | ₹11.67 · 0 in stock | View |
