DIODESDatasheet (PDF)

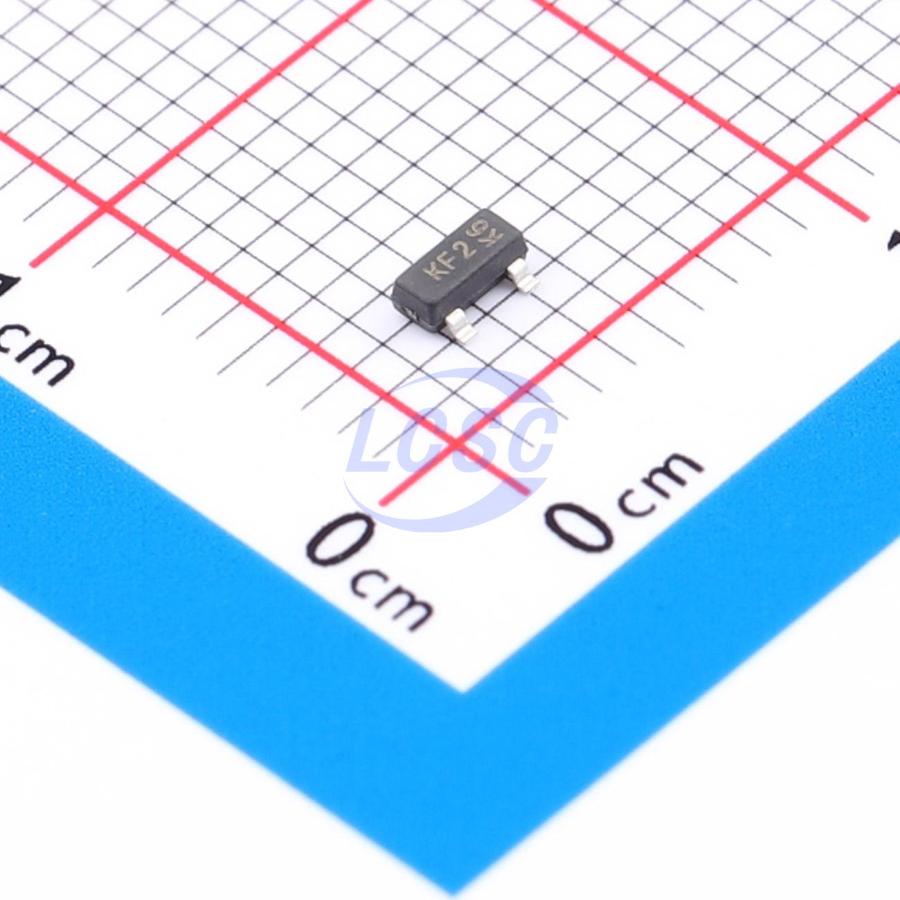

MMBZ5237BQ-7-F
Zener Diode 8.2V 350mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 8.2V 350mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- MMBZ5237BQ-7-F
- Store part #
- C460902
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
645 in stock
#C460902
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.27 | ₹161.35 |
| 50+ | ₹25.00 | ₹1,250.00 |
| 150+ | ₹21.90 | ₹3,285.00 |
| 500+ | ₹18.02 | ₹9,010.00 |
| 3,000+ | ₹16.30 | ₹48,900.00 |
| 6,000+ | ₹15.27 | ₹91,620.00 |
5 × ₹32.27
₹161.35
excl. GST
₹190.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ5237BQ-7-F
₹161.35 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 3uA@6.5V
- Impedance(Zzt)
- 8Ω
- Zener Voltage(Range)
- 7.79V~8.61V
- Zener Voltage(Nom)
- 8.2V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
Key features
- Planar Die Construction
- 350mW Power Dissipation on FR - 4 PCB
- Ideally Suited for Automated Assembly Processes
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- This part is qualified to JEDEC standards (as references in AEC - Q) for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMBZ5237BLT1G#C235759onsemi · SOT-23 | onsemi | SOT-23 | 6,480 | ₹5.77 · 6,480 in stock | View |
| BZX84C8V2#C20623312YFW · SOT-23 | YFW | SOT-23 | 3,000 | ₹3.18 · 3,000 in stock | View | |
 | BZX84C8V2#C2832552CBI · SOT-23 | CBI | SOT-23 | 3,000 | ₹1.94 · 3,000 in stock | View |
 | BZX84C8V2#C5190198Guangdong Hottech · SOT-23 | Guangdong Hottech | SOT-23 | 1,950 | ₹2.24 · 1,950 in stock | View |
 | BZX84C8V2#C5244798DIODES · SOT-23 | DIODES | SOT-23 | 5 | ₹15.48 · 5 in stock | View |
