DIODESDatasheet (PDF)

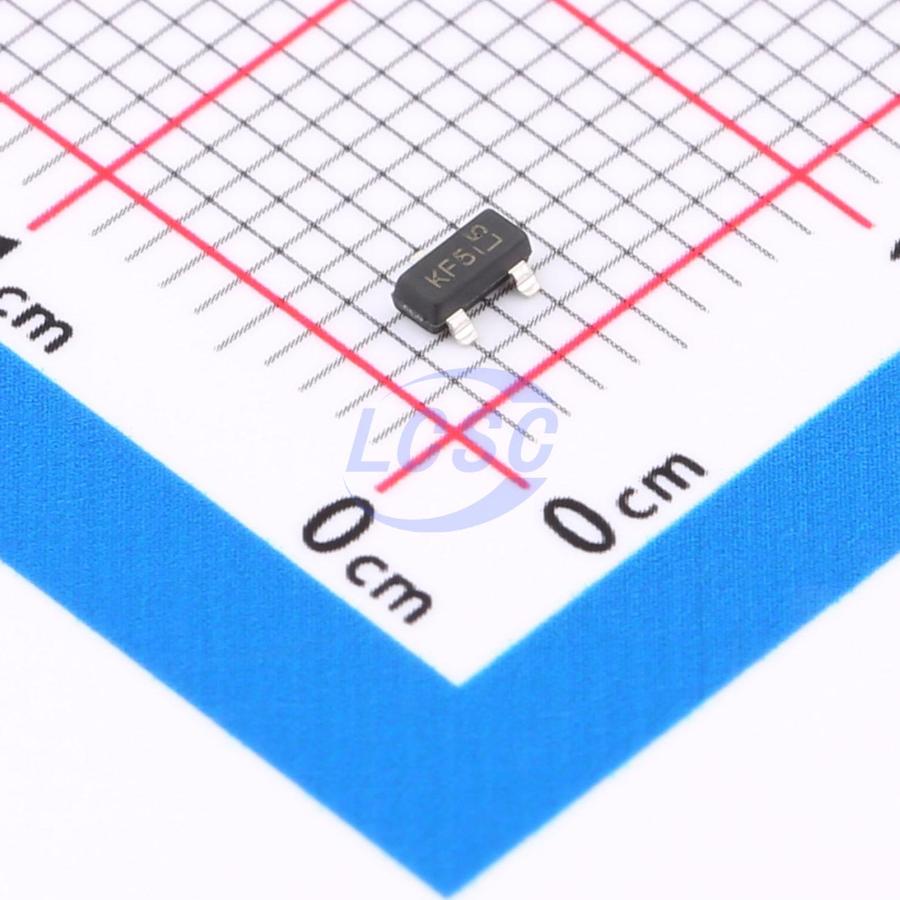

MMBZ5240B-7-F
Zener Diode Independent 10V 350mW Surface Mount SOT-23
SOT-23ROHS CompliantActive
DIODE ZENER 10V 350mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- MMBZ5240B-7-F
- Store part #
- C151622
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
340 in stock
#C151622
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹8.15 | ₹163.00 |
| 200+ | ₹7.09 | ₹1,418.00 |
| 600+ | ₹6.51 | ₹3,906.00 |
| 3,000+ | ₹6.17 | ₹18,510.00 |
| 9,000+ | ₹5.86 | ₹52,740.00 |
| 21,000+ | ₹5.69 | ₹1,19,490.00 |
20 × ₹8.15
₹163.00
excl. GST
₹192.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ5240B-7-F
₹163.00 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 3uA@8V
- Impedance(Zzt)
- 17Ω
- Zener Voltage(Range)
- 9.5V~10.5V
- Zener Voltage(Nom)
- 10V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.028 g
Overview
Key features
- Planar Die Construction
- 350mW Power Dissipation on FR - 4 PCB
- Ideally Suited for Automated Assembly Processes
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- This part is qualified to JEDEC standards (as references in AEC - Q) for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMBZ5240B#C51315443CBI · SOT-23 | CBI | SOT-23 | 4,450 | ₹1.39 · 4,450 in stock | View |
 | MMBZ5240BLT1G#C29115onsemi · SOT-23 | onsemi | SOT-23 | 5,500 | ₹5.17 · 5,500 in stock | View |
 | LMBZ5240BLT1G#C383235LRC · SOT-23 | LRC | SOT-23 | 3,000 | ₹3.19 · 3,000 in stock | View |
 | BZX84C10#C118575ST(Semtech) · TO-236 | ST(Semtech) | TO-236 | 2,450 | ₹2.55 · 2,450 in stock | View |
 | BZX84C10#C20623314YFW · SOT-23 | YFW | SOT-23 | 3,000 | ₹2.86 · 3,000 in stock | View |
