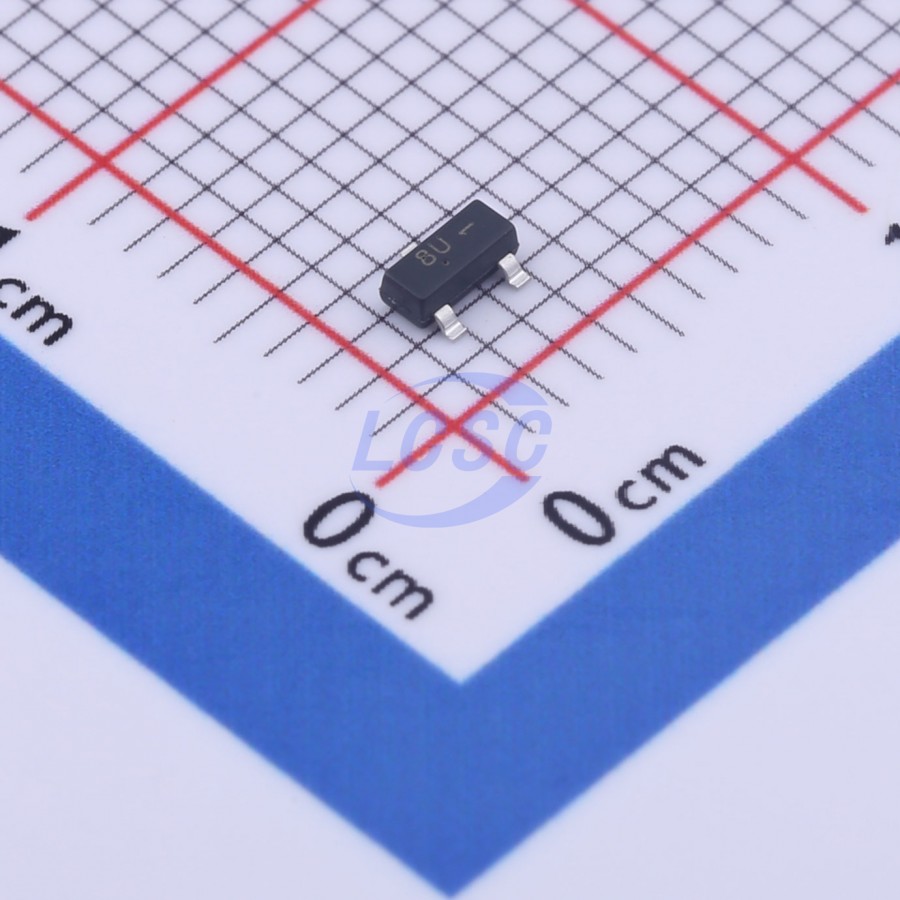

MMBZ5244BLT1G
Zener Diode Independent 14V 225mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 14V 225mW SOT-23
- Manufacturer
- onsemi
- Manufacturer part #
- MMBZ5244BLT1G
- Store part #
- C236109
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,710 in stock
#C236109
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.38 | ₹63.80 |
| 100+ | ₹5.33 | ₹533.00 |
| 300+ | ₹4.80 | ₹1,440.00 |
| 3,000+ | ₹4.42 | ₹13,260.00 |
| 6,000+ | ₹4.10 | ₹24,600.00 |
| 9,000+ | ₹3.94 | ₹35,460.00 |
10 × ₹6.38
₹63.80
excl. GST
₹75.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ5244BLT1G
₹63.80 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 225mW
- Reverse Leakage Current (Ir)
- 100nA@10V
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 13.3V~14.7V
- Zener Voltage(Nom)
- 14V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMBZ5244BLT1G#C2846983LRC · SOT-23 | LRC | SOT-23 | 1,140 | ₹3.45 · 1,140 in stock | View |
| SZMMBZ5244BLT1G#C894595onsemi · SOT-23 | onsemi | SOT-23 | 100 | ₹17.95 · 100 in stock | View | |
 | MMBZ5244B-7-F#C460908DIODES · SOT-23 | DIODES | SOT-23 | 10 | ₹6.73 · 10 in stock | View |
 | MMBZ5244BQ-7-F#C6594481DIODES · SOT-23-3 | DIODES | SOT-23-3 | 10 | ₹5.64 · 10 in stock | View |
 | DDZX14-7#C5244860DIODES · SOT-23 | DIODES | SOT-23 | 950 | ₹13.38 · 950 in stock | View |
