DIODESDatasheet (PDF)

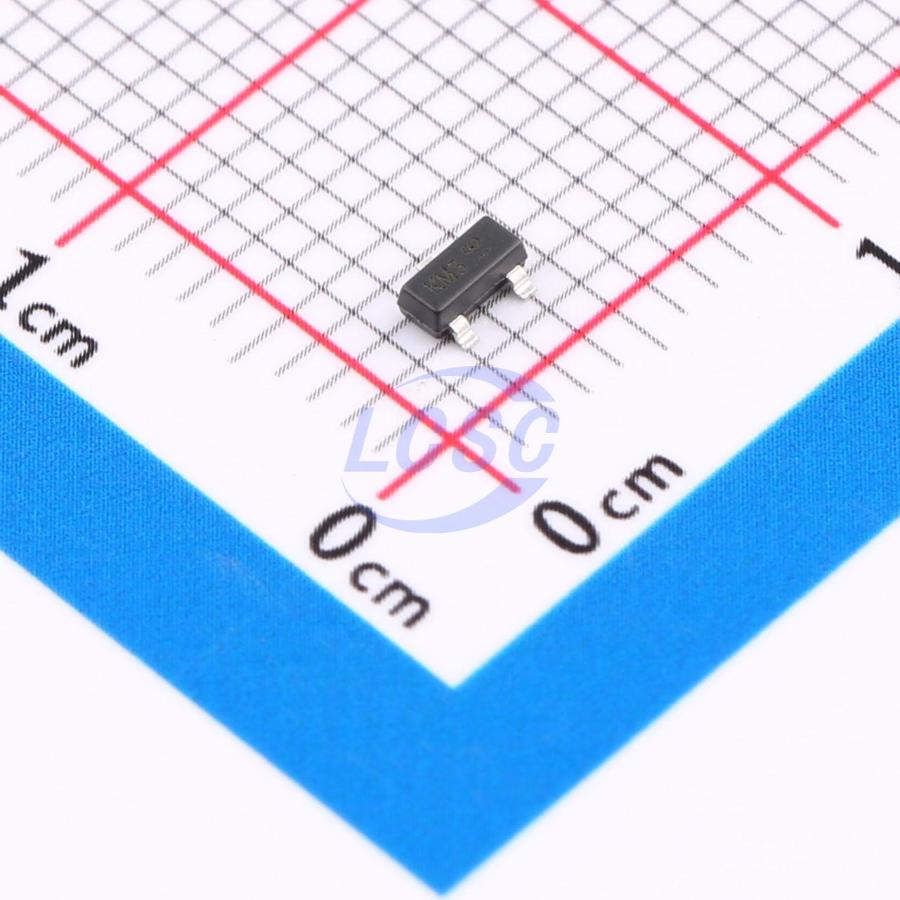

MMBZ5258B-7-F
Zener Diode Independent 36V 350mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 36V 350mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- MMBZ5258B-7-F
- Store part #
- C2760560
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C2760560
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.50 | ₹75.00 |
| 100+ | ₹6.34 | ₹634.00 |
| 300+ | ₹5.76 | ₹1,728.00 |
| 3,000+ | ₹5.32 | ₹15,960.00 |
| 6,000+ | ₹4.97 | ₹29,820.00 |
| 9,000+ | ₹4.79 | ₹43,110.00 |
10 × ₹7.50
₹75.00
excl. GST
₹88.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ5258B-7-F
₹75.00 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 100nA
- Impedance(Zzt)
- 70Ω
- Zener Voltage(Range)
- 34.2V~37.8V
- Zener Voltage(Nom)
- 36V
- Impedance(Zzk)
- 700Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.023 g
Overview
Key features
- Planar Die Construction
- 350mW Power Dissipation on FR - 4 PCB
- Ideally Suited for Automated Assembly Processes
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- This part is qualified to JEDEC standards (as references in AEC - Q) for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84C36-7-F#C460821DIODES · SOT-23 | DIODES | SOT-23 | 680 | ₹4.88 · 680 in stock | View |
 | BZX84C36Q-7-F#C7224152DIODES · SOT-23 | DIODES | SOT-23 | 3,060 | ₹8.07 · 3,060 in stock | View |
 | BZX84C36#C841169LGE · SOT-23 | LGE | SOT-23 | On request | ₹4.70 · 0 in stock | View |
 | TPZ36VCS3#C46472824TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 4,900 | ₹2.74 · 4,900 in stock | View |
 | BZX84C36#C46472855TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,200 | ₹2.26 · 2,200 in stock | View |
