DIODESDatasheet (PDF)

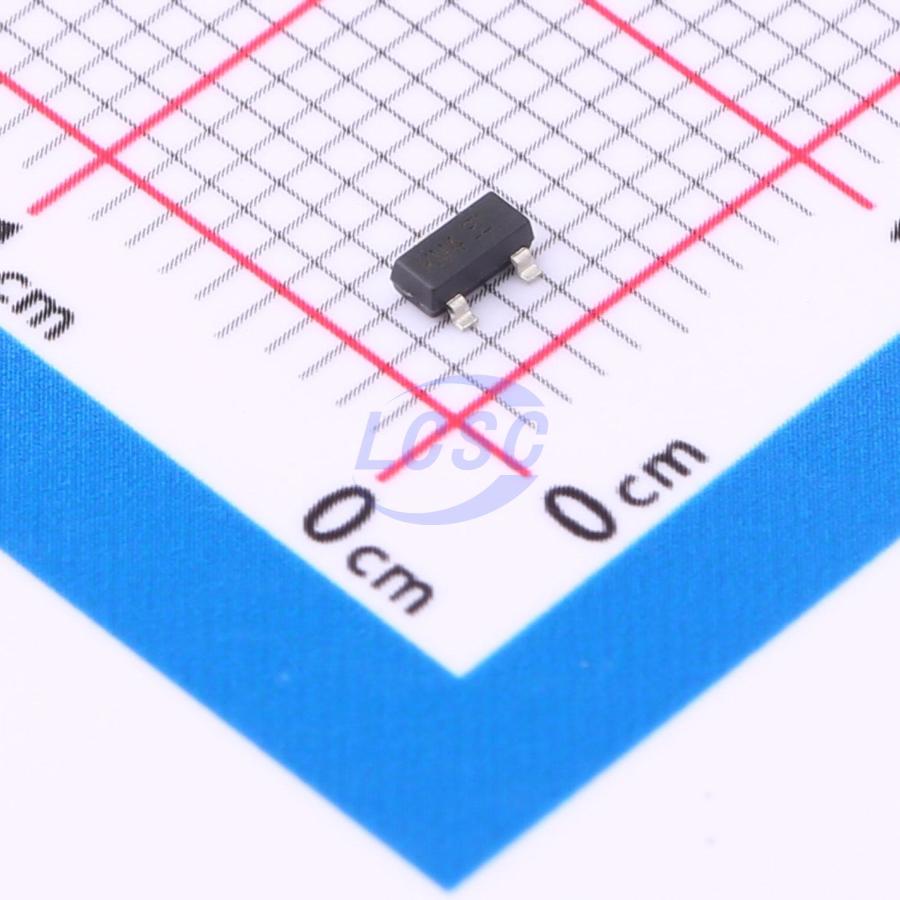

MMBZ5259B-7-F
Zener Diode Independent 39V 350mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 39V 350mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- MMBZ5259B-7-F
- Store part #
- C5244943
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
140 in stock
#C5244943
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.15 | ₹51.50 |
| 100+ | ₹5.08 | ₹508.00 |
| 300+ | ₹5.03 | ₹1,509.00 |
| 1,000+ | ₹4.99 | ₹4,990.00 |
10 × ₹5.15
₹51.50
excl. GST
₹60.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ5259B-7-F
₹51.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 100nA
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 37.05V~40.95V
- Zener Voltage(Nom)
- 39V
- Impedance(Zzk)
- 800Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
Key features
- Planar Die Construction
- 350mW Power Dissipation on FR - 4 PCB
- Ideally Suited for Automated Assembly Processes
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- This part is qualified to JEDEC standards (as references in AEC - Q) for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84C39-7-F#C507920DIODES · SOT-23 | DIODES | SOT-23 | 840 | ₹5.07 · 840 in stock | View |
 | BZX84C39Q-7-F#C7224155DIODES · SOT-23 | DIODES | SOT-23 | 100 | ₹6.91 · 100 in stock | View |
 | BZX84C39#C970340LGE · SOT-23 | LGE | SOT-23 | 150 | ₹2.26 · 150 in stock | View |
 | BZX84C39Q#C2942548YANGJIE · SOT-23 | YANGJIE | SOT-23 | 2,460 | ₹5.04 · 2,460 in stock | View |
 | TPZ39VCS3#C46472825TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,500 | ₹2.37 · 2,500 in stock | View |
