DIODESDatasheet (PDF)

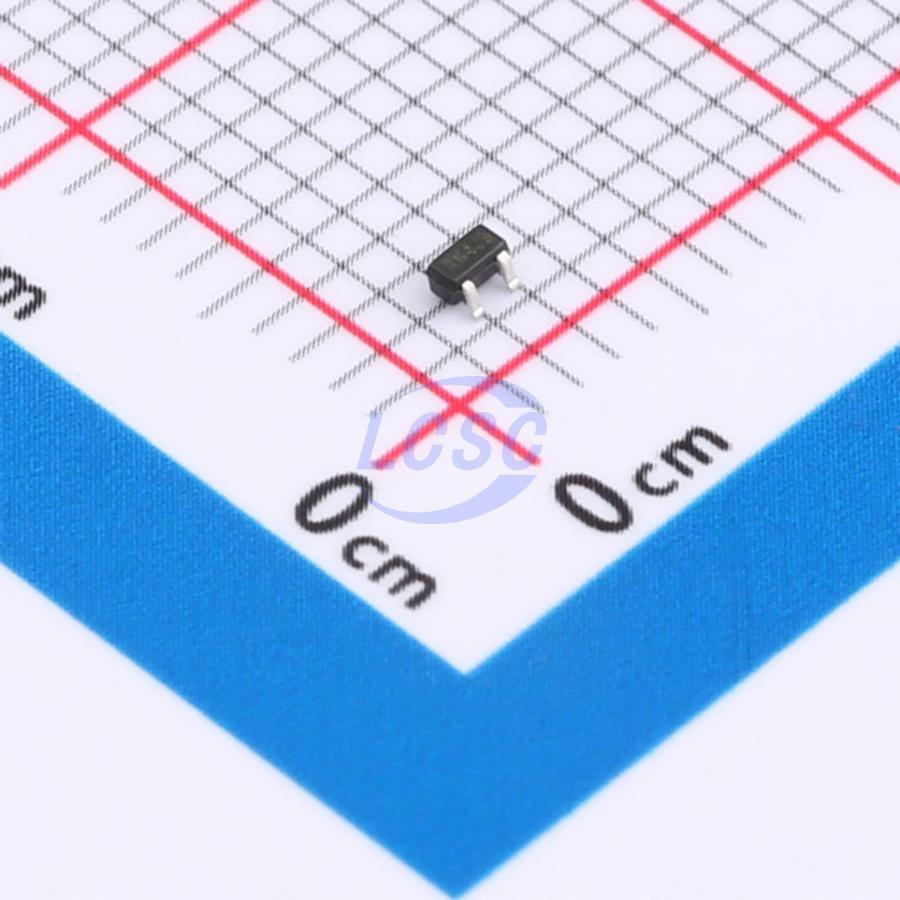

MMBZ5259BT-7-F
Zener Diode 39V 150mW Surface Mount SOT-523
SOT-523ROHS3 CompliantActive
DIODE ZENER 39V 150mW SOT-523
- Manufacturer
- DIODES
- Manufacturer part #
- MMBZ5259BT-7-F
- Store part #
- C7230549
- Package / case
- SOT-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C7230549
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.97 | ₹69.85 |
| 50+ | ₹13.79 | ₹689.50 |
| 150+ | ₹13.65 | ₹2,047.50 |
| 500+ | ₹13.53 | ₹6,765.00 |
5 × ₹13.97
₹69.85
excl. GST
₹82.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ5259BT-7-F
₹69.85 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 150mW
- Reverse Leakage Current (Ir)
- 100nA
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 37.05V~40.95V
- Zener Voltage(Nom)
- 39V
- Impedance(Zzk)
- 800Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.016 g
Overview
Key features
- Ultra-Small Surface Mount Package
- Planar Die Construction
- General Purpose
- Ideally Suited for Automated Assembly Processes
- Lead Free/RoHS Compliant
- "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84C39T-7-F#C6522967DIODES · SOT-523 | DIODES | SOT-523 | 130 | ₹7.10 · 130 in stock | View |
 | BZX84C36T-7-F#C6756362DIODES · SOT-523 | DIODES | SOT-523 | 120 | ₹8.67 · 120 in stock | View |
 | MMBZ5258BT-7-F#C5249106DIODES · SOT-523 | DIODES | SOT-523 | On request | ₹12.11 · 0 in stock | View |
