VBsemi ElecDatasheet (PDF)

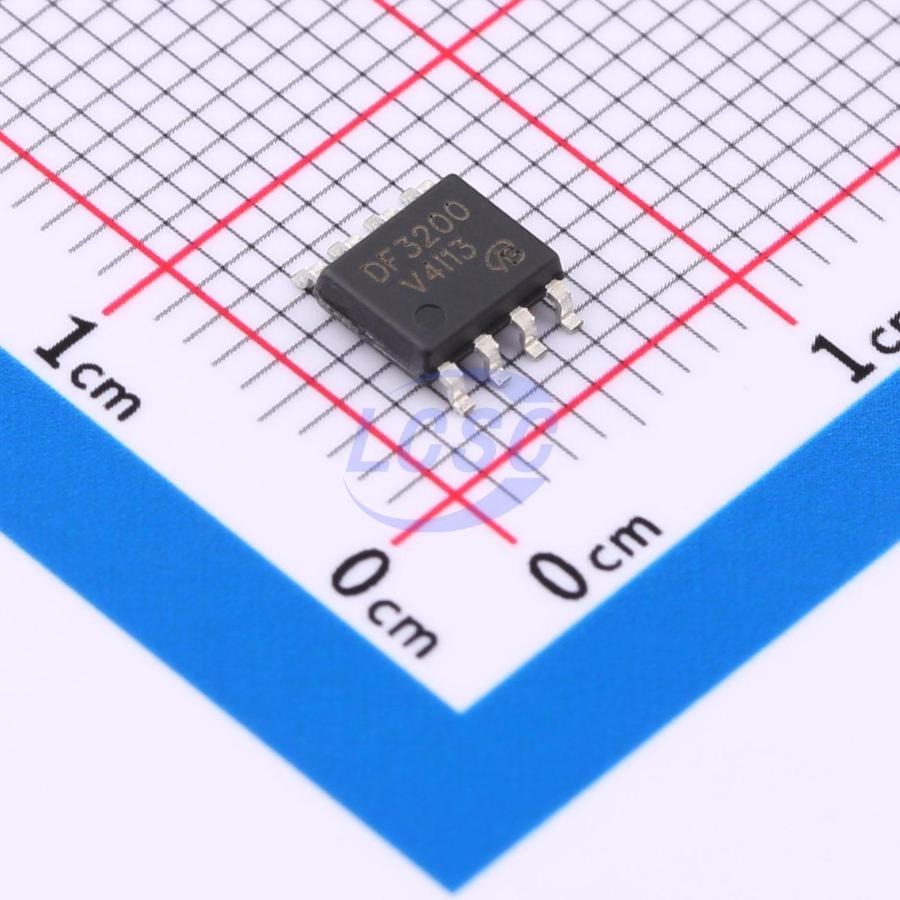

MMDF3200D-VB
N-Channel 20V 10A 2.7W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 20V 10A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- MMDF3200D-VB
- Store part #
- C29779669
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C29779669
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.83 | ₹54.83 |
| 10+ | ₹43.06 | ₹430.60 |
| 30+ | ₹38.02 | ₹1,140.60 |
| 100+ | ₹31.73 | ₹3,173.00 |
| 500+ | ₹29.00 | ₹14,500.00 |
| 1,000+ | ₹27.32 | ₹27,320.00 |
1 × ₹54.83
₹54.83
excl. GST
₹64.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MMDF3200D-VB
₹54.83 for 1 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 117pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 586pF
- Pd - Power Dissipation
- 2.7W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 9mΩ@4.5V;12mΩ@2.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 15nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
Applications
- Set-top box - Low-current DC/DC converter
Key features
- Compliant with halogen-free requirements as defined in IEC 61249-2-21
- Trench power MOSFET
- 100% tested for single-pulse avalanche ruggedness (UIS)
- 100% tested for gate resistance (Rg)
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDS6898AZ-NL-VB#C20755353VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 45 | ₹47.32 · 45 in stock | View |
 | HM4806A-VB#C22389305VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹54.83 · 20 in stock | View |
 | CEM2108-VB#C29778938VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹54.83 · 20 in stock | View |
 | DMG6898LSDQ-VB#C29779664VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹54.83 · 20 in stock | View |
 | ELM14806AA-VB#C29779665VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹54.83 · 20 in stock | View |
