JSCJ

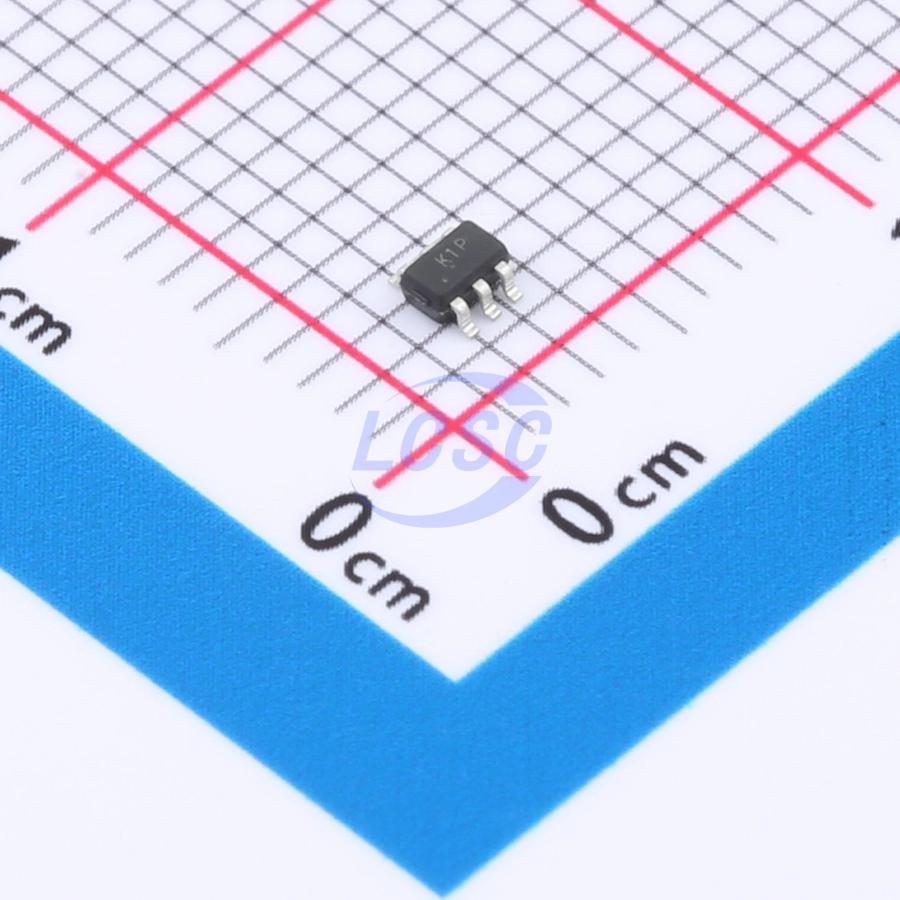

MMDT2222A

Bipolar (BJT) Transistor NPN 40V 600mA 300MHz 200mW Surface Mount SOT-363

SOT-363ROHS CompliantActive

TRANS NPN 40V 600mA SOT-363

Manufacturer: JSCJ
Manufacturer part #: MMDT2222A
Store part #: C19267717
Package / case: SOT-363
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,640 in stock

#C19267717

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
10+	₹7.09	₹70.90
100+	₹5.53	₹553.00
300+	₹4.75	₹1,425.00
3,000+	₹4.17	₹12,510.00
6,000+	₹3.70	₹22,200.00
9,000+	₹3.47	₹31,230.00

Quantity (min 10, multiples of 10)

10 × ₹7.09

₹70.90

excl. GST

₹83.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MMDT2222A

₹70.90 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current - Collector Cutoff: 10nA
Operating Temperature: -55℃~+150℃
Transition frequency(fT): 300MHz
Collector - Emitter Voltage VCEO: 40V
Emitter-Base Voltage VEBO: 6V
DC Current Gain: 35
Current - Collector(Ic): 600mA
Pd - Power Dissipation: 200mW
Configuration: Standalone
Number: 2 NPN
type: NPN
Vce Saturation(VCE(sat)): 1V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.032 g

Overview

Dual transistor (NPN + NPN) in SOT-363 package, with complementary PNP type MMDT2907A. SOT-363 devices are supplied on tape. The carrier tape is made of dissipative (carbon-filled) polycarbonate resin. The cover tape is a multilayer film (inherently heat-activated adhesive), consisting primarily of polyester film, adhesive layer, sealant, and antistatic coating. Under standard options, 3000 devices are loaded per 7-inch (17.8 cm) diameter reel. Reels are transparent and made of polystyrene plastic (antistatic type).
