MMSZ13T1G

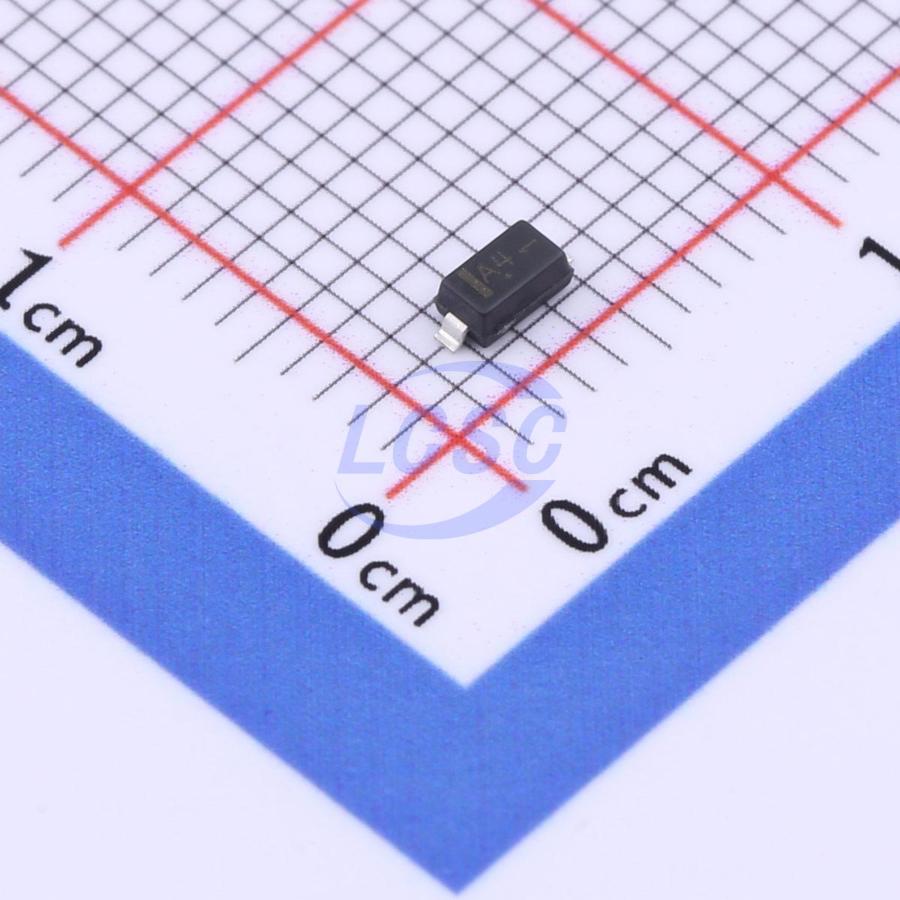

Zener Diode 13V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 13V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- MMSZ13T1G
- Store part #
- C462864
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
310 in stock
#C462864
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.20 | ₹101.00 |
| 50+ | ₹15.78 | ₹789.00 |
| 150+ | ₹13.89 | ₹2,083.50 |
| 500+ | ₹11.52 | ₹5,760.00 |
| 3,000+ | ₹10.46 | ₹31,380.00 |
| 6,000+ | ₹9.83 | ₹58,980.00 |
5 × ₹20.20
₹101.00
excl. GST
₹119.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ13T1G
₹101.00 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 12.35V~13.65V
- Zener Voltage(Nom)
- 13V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
Three complete series of Zener diodes are offered in the convenient, surface mount plastic SOD- 123 package. These devices provide a convenient alternative to the leadless 34- package style.
Key features
- 500 mW Rating on FR- 4 or FR- 5 Board
- Wide Zener Reverse Voltage Range - 2.4 V to 56 V
- Package Designed for Optimal Automated Board Assembly
- Small Package Size for High Density Applications
- ESD Rating of Class 3 (> 16 kV) per Human Body Model
- AEC- Q101 Qualified and PPAP Capable
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- Pb- Free Packages are Available
