onsemiDatasheet (PDF)

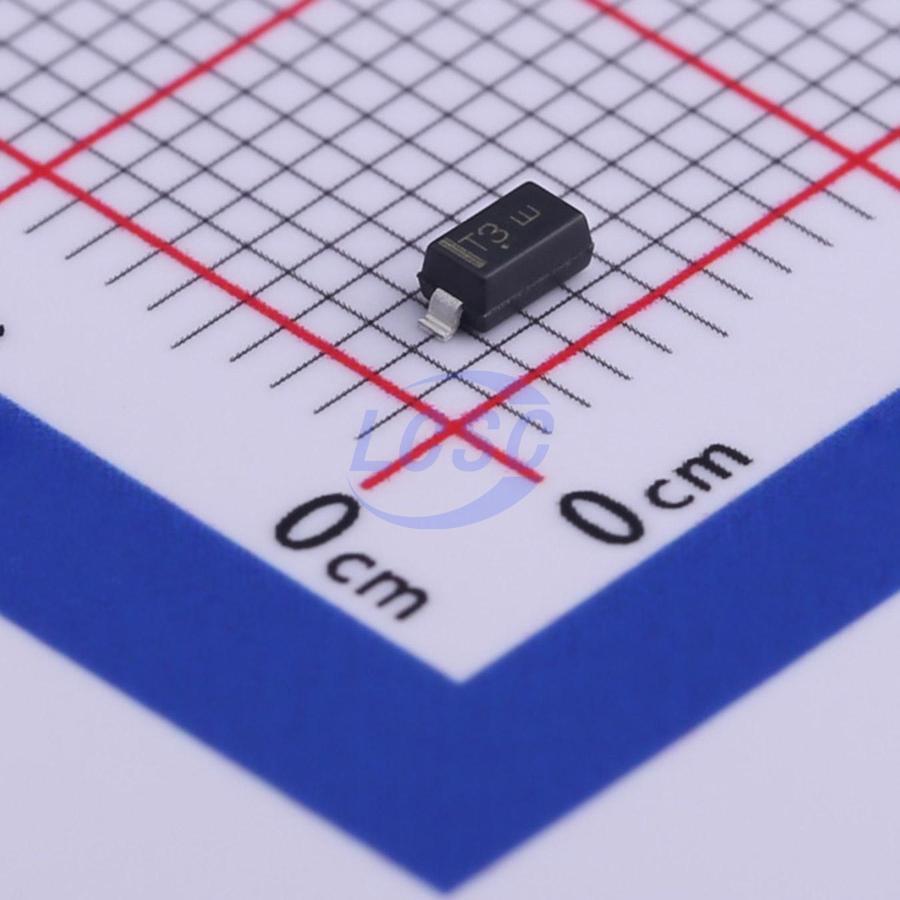

MMSZ3V0T1G
Zener Diode Independent 3V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 3V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- MMSZ3V0T1G
- Store part #
- C462867
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,190 in stock
#C462867
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.30 | ₹46.50 |
| 50+ | ₹9.12 | ₹456.00 |
| 150+ | ₹8.98 | ₹1,347.00 |
| 500+ | ₹8.85 | ₹4,425.00 |
5 × ₹9.30
₹46.50
excl. GST
₹54.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ3V0T1G
₹46.50 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 10uA@1V
- Impedance(Zzt)
- 95Ω
- Zener Voltage(Range)
- 2.85V~3.15V
- Zener Voltage(Nom)
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
Three complete series of Zener diodes are offered in the convenient, surface mount plastic SOD- 123 package. These devices provide a convenient alternative to the leadless 34- package style.
Key features
- 500 mW Rating on FR- 4 or FR- 5 Board
- Wide Zener Reverse Voltage Range - 2.4 V to 56 V
- Package Designed for Optimal Automated Board Assembly
- Small Package Size for High Density Applications
- ESD Rating of Class 3 (> 16 kV) per Human Body Model
- AEC- Q101 Qualified and PPAP Capable
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- Pb- Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C3V0Q#C2857069JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 3,900 | ₹2.50 · 3,900 in stock | View |
 | MMSZ3V0CW#C163778FMS(Formosa Microsemi) · SOD-123 | FMS(Formosa Microsemi) | SOD-123 | 100 | ₹2.34 · 100 in stock | View |
 | MMSZ3V0CW#C248751Tak Cheong · SOD-123 | Tak Cheong | SOD-123 | 50 | ₹2.74 · 50 in stock | View |
 | LMSZ5225BT1G#C131755LRC · SOD-123 | LRC | SOD-123 | 2,880 | ₹5.31 · 2,880 in stock | View |
 | MMSZ5225BT1G#C236189onsemi · SOD-123 | onsemi | SOD-123 | 1,980 | ₹5.54 · 1,980 in stock | View |
