TECH PUBLICDatasheet (PDF)

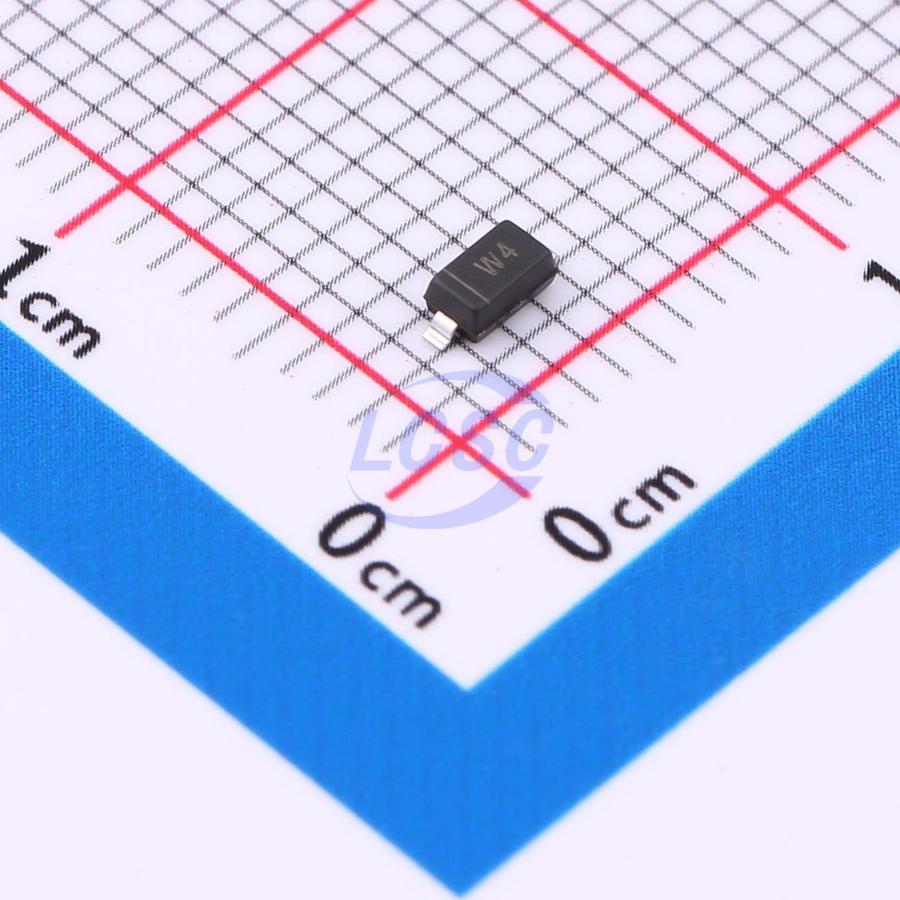

MMSZ3V6T1G-TP
Zener Diode 3.6V 500mW Surface Mount SOD-123
SOD-123RoHSActive
DIODE ZENER 3.6V 500mW SOD-123
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MMSZ3V6T1G-TP
- Store part #
- C46472983
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,550 in stock
#C46472983
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.29 | ₹114.50 |
| 500+ | ₹1.80 | ₹900.00 |
| 3,000+ | ₹1.53 | ₹4,590.00 |
| 6,000+ | ₹1.36 | ₹8,160.00 |
| 24,000+ | ₹1.23 | ₹29,520.00 |
| 51,000+ | ₹1.15 | ₹58,650.00 |
50 × ₹2.29
₹114.50
excl. GST
₹135.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ3V6T1G-TP
₹114.50 for 50 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 5uA@1V
- Impedance(Zzt)
- 90Ω
- Zener Voltage(Range)
- 3.42V~3.78V
- Zener Voltage(Nom)
- 3.6V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.033 g
Overview
Applications
- General voltage regulation
- Mobile and handheld systems
- Home appliances
- Industrial automation
- Communications
Key features
- Low Zener impedance
- 500mW power dissipation
- High stability and reliability
- Halogen-free and RoHS compliant
- SOD123 surface mount package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C3V6#C42370481TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 4,300 | ₹1.91 · 4,300 in stock | View |
 | TPZ3V6C-123#C42379168TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 2,780 | ₹3.10 · 2,780 in stock | View |
 | MMSZ5227BT1G-TP#C46472939TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 2,900 | ₹1.20 · 2,900 in stock | View |
 | MMSZ4685T1G-TP#C46472964TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 4,750 | ₹1.11 · 4,750 in stock | View |
 | MMSZ3V3T1G-TP#C46472982TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 2,000 | ₹1.14 · 2,000 in stock | View |
