VISHAYDatasheet (PDF)

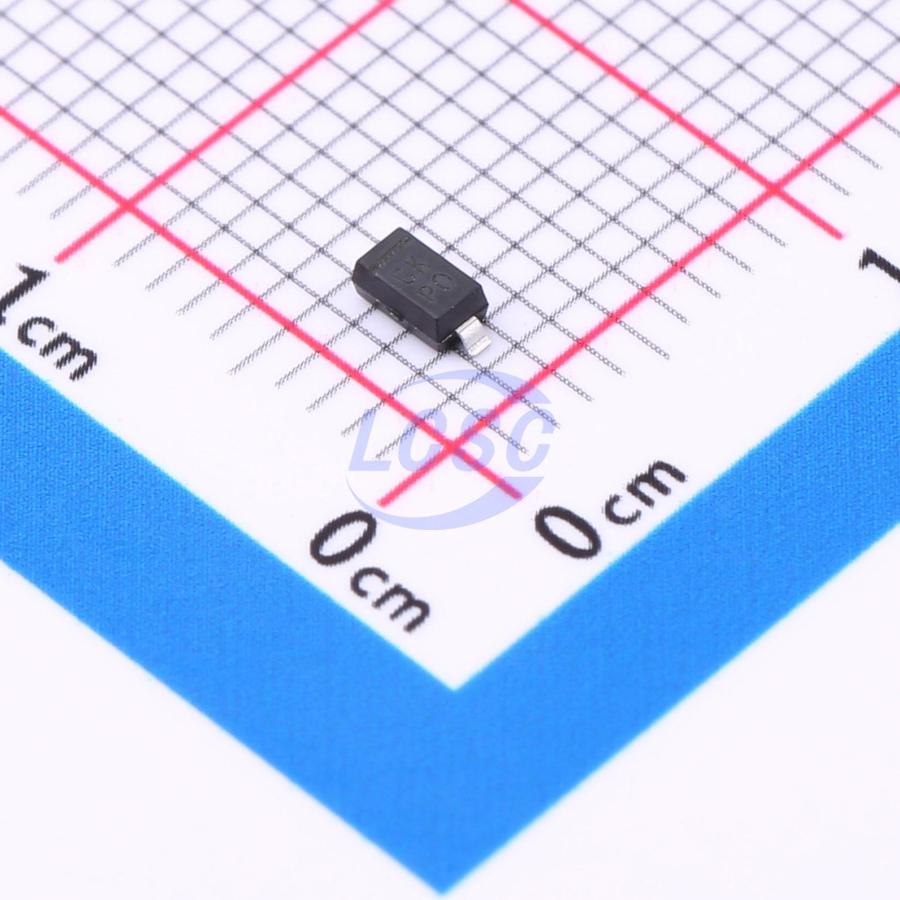

MMSZ4684-E3-08
Zener Diode Independent 3.3V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 3.3V 500mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- MMSZ4684-E3-08
- Store part #
- C5342956
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,130 in stock
#C5342956
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.73 | ₹107.30 |
| 100+ | ₹8.59 | ₹859.00 |
| 300+ | ₹7.51 | ₹2,253.00 |
| 3,000+ | ₹6.71 | ₹20,130.00 |
| 6,000+ | ₹6.06 | ₹36,360.00 |
| 9,000+ | ₹5.74 | ₹51,660.00 |
10 × ₹10.73
₹107.30
excl. GST
₹126.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ4684-E3-08
₹107.30 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 7.5uA@1.5V
- Zener Voltage(Range)
- 3.14V~3.47V
- Zener Voltage(Nom)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Key features
- Silicon planar Zener diodes
- Standard Zener voltage tolerance is ± 5%
- High temperature soldering guaranteed: 260℃ / 4 x 10 s set terminals
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model > 8 kV, Machine model > 800 V
- RoHS-compliant, commercial grade
- RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ4684-TP#C435912MCC · SOD-123 | MCC | SOD-123 | 1,120 | ₹5.03 · 1,120 in stock | View |
 | LMSZ5226BT1G#C131754LRC · SOD-123 | LRC | SOD-123 | 1,350 | ₹2.02 · 1,350 in stock | View |
 | SZMMSZ5226BT1G#C231291onsemi · SOD-123 | onsemi | SOD-123 | 7,275 | ₹14.30 · 7,275 in stock | View |
 | MMSZ5226BT1G#C235771onsemi · SOD-123 | onsemi | SOD-123 | 1,44,240 | ₹6.10 · 1,44,240 in stock | View |
 | MMSZ3V3T1G#C94381onsemi · SOD-123 | onsemi | SOD-123 | 29,720 | ₹8.88 · 29,720 in stock | View |
