VISHAYDatasheet (PDF)

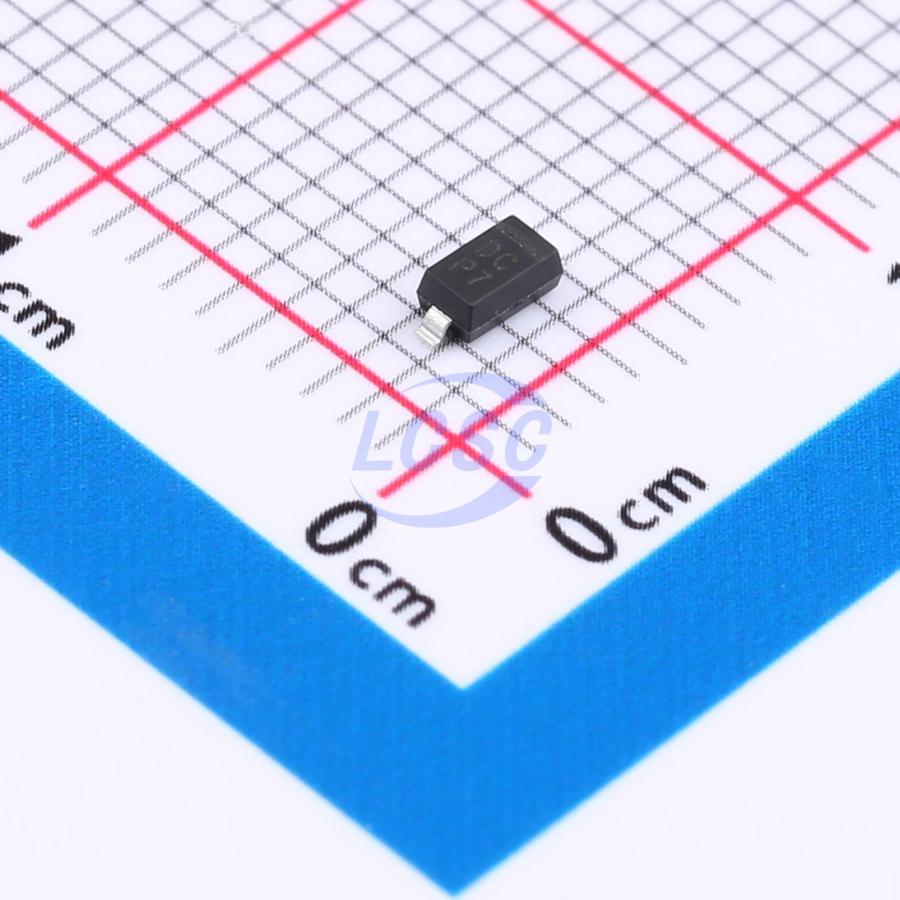

MMSZ4695-E3-08
Zener Diode Independent 8.7V 300mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 8.7V 300mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- MMSZ4695-E3-08
- Store part #
- C3729114
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,470 in stock
#C3729114
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.83 | ₹78.30 |
| 100+ | ₹6.15 | ₹615.00 |
| 300+ | ₹5.32 | ₹1,596.00 |
| 3,000+ | ₹4.68 | ₹14,040.00 |
| 6,000+ | ₹4.18 | ₹25,080.00 |
| 9,000+ | ₹3.93 | ₹35,370.00 |
10 × ₹7.83
₹78.30
excl. GST
₹92.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ4695-E3-08
₹78.30 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 1uA
- Zener Voltage(Range)
- 8.27V~9.14V
- Zener Voltage(Nom)
- 8.7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Key features
- Silicon planar Zener diodes
- Standard Zener voltage tolerance is ± 5%
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8 kV, Machine model >800 V
- RoHS-compliant, commercial grade
- RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMSZ5238BT1G#C124149LRC · SOD-123 | LRC | SOD-123 | 3,040 | ₹4.62 · 3,040 in stock | View |
 | S-LMSZ5238BT1G#C2932869LRC · SOD-123 | LRC | SOD-123 | 2,305 | ₹5.77 · 2,305 in stock | View |
 | MMSZ4695#C2910063JSCJ · SOD-123 | JSCJ | SOD-123 | 2,440 | ₹3.55 · 2,440 in stock | View |
 | MMSZ5238B#C22399897R+O · SOD-123 | R+O | SOD-123 | 14,820 | ₹3.16 · 14,820 in stock | View |
 | MMSZ5238B_R1_00001#C268598PANJIT · SOD-123 | PANJIT | SOD-123 | 3,220 | ₹4.43 · 3,220 in stock | View |
