VISHAYDatasheet (PDF)

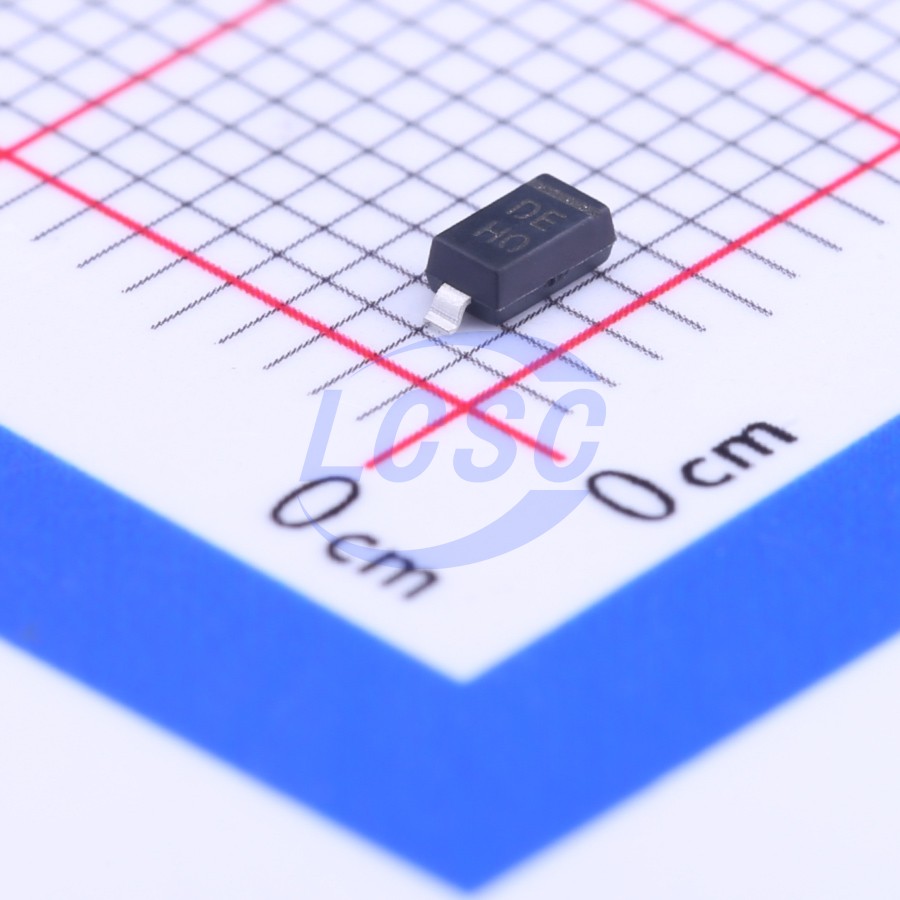

MMSZ4697-E3-08
Zener Diode Independent 10V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 10V 500mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- MMSZ4697-E3-08
- Store part #
- C142574
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,150 in stock
#C142574
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.64 | ₹96.40 |
| 100+ | ₹7.73 | ₹773.00 |
| 300+ | ₹6.76 | ₹2,028.00 |
| 3,000+ | ₹6.03 | ₹18,090.00 |
| 6,000+ | ₹5.45 | ₹32,700.00 |
| 9,000+ | ₹5.16 | ₹46,440.00 |
10 × ₹9.64
₹96.40
excl. GST
₹113.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ4697-E3-08
₹96.40 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 1uA@7.6V
- Zener Voltage(Range)
- 9.5V~10.5V
- Zener Voltage(Nom)
- 10V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
