onsemiDatasheet (PDF)

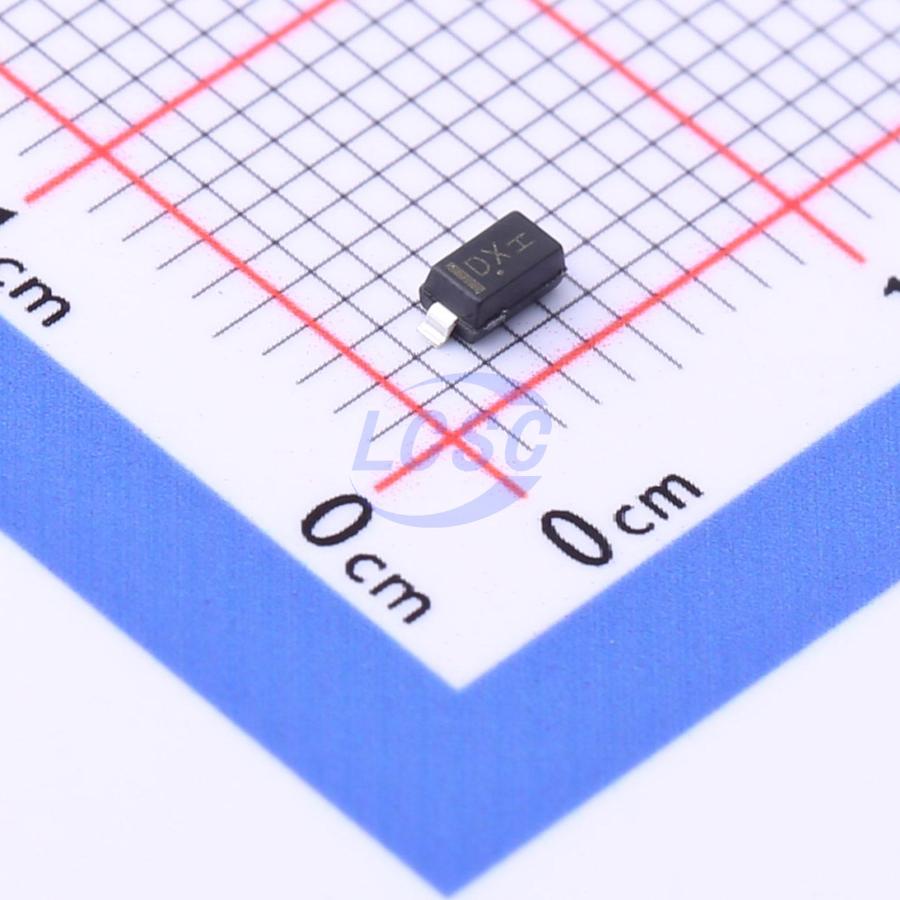

MMSZ4709T1G
Zener Diode Independent 24V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 24V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- MMSZ4709T1G
- Store part #
- C891719
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,280 in stock
#C891719
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.19 | ₹61.90 |
| 100+ | ₹5.15 | ₹515.00 |
| 300+ | ₹4.63 | ₹1,389.00 |
| 3,000+ | ₹4.23 | ₹12,690.00 |
| 6,000+ | ₹3.93 | ₹23,580.00 |
| 9,000+ | ₹3.77 | ₹33,930.00 |
10 × ₹6.19
₹61.90
excl. GST
₹73.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ4709T1G
₹61.90 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 10nA@18.2V
- Zener Voltage(Range)
- 22.8V~25.2V
- Zener Voltage(Nom)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Key features
- 500 mW Rating on FR- 4 or FR- 5 Board
- Wide Zener Reverse Voltage Range - 1.8 V to 43 V
- Low Reverse Current (I_ZT) - 50μA
- Package Designed for Optimal Automated Board Assembly
- Small Package Size for High Density Applications
- ESD Rating of Class 3 (> 16 kV) per Human Body Model
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable
- These Devices are Pb- Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ4709T1G-TP#C46472979TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 2,500 | ₹2.29 · 2,500 in stock | View |
 | SZMMSZ4709T1G#C894659onsemi · SOD-123 | onsemi | SOD-123 | 910 | ₹31.50 · 910 in stock | View |
 | LMSZ5252BT1G#C131737LRC · SOD-123 | LRC | SOD-123 | 3,050 | ₹2.30 · 3,050 in stock | View |
 | MMSZ5252B#C19077432R+O · SOD-123 | R+O | SOD-123 | 54,750 | ₹2.80 · 54,750 in stock | View |
 | BZT52C24#C19267778HXY MOSFET · SOD-123 | HXY MOSFET | SOD-123 | 100 | ₹1.77 · 100 in stock | View |
