VISHAYDatasheet (PDF)

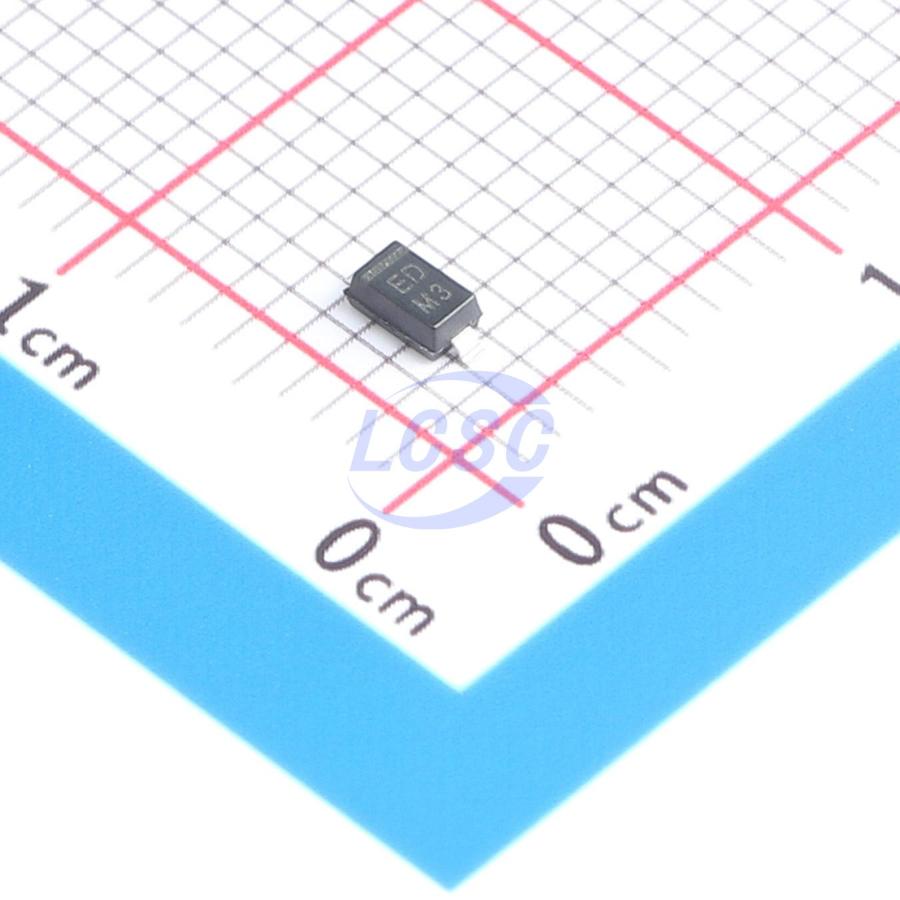

MMSZ4713-E3-08
1 Independent 28.5V~31.5V 30V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- MMSZ4713-E3-08
- Store part #
- C3764756
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,255 in stock
#C3764756
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.93 | ₹144.65 |
| 50+ | ₹23.63 | ₹1,181.50 |
| 150+ | ₹21.37 | ₹3,205.50 |
| 500+ | ₹18.54 | ₹9,270.00 |
| 3,000+ | ₹17.27 | ₹51,810.00 |
| 6,000+ | ₹16.51 | ₹99,060.00 |
5 × ₹28.93
₹144.65
excl. GST
₹170.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ4713-E3-08
₹144.65 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 10nA@22.8V
- Zener Voltage(Range)
- 28.5V~31.5V
- Zener Voltage(Nom)
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
Key features
- Silicon planar Zener diode
- Standard Zener voltage tolerance ±5%
- AEC-Q101 qualified versions available
- ESD capability per AEC-Q101: Human Body Model >8 kV, Machine Model >800 V
- Base part number E3 - RoHS compliant, commercial grade
- Base part number HE3_A - RoHS compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMSZ5256BT1G#C131735LRC · SOD-123 | LRC | SOD-123 | 1,200 | ₹3.06 · 1,200 in stock | View |
 | MMSZ5256BT1G#C235773onsemi · SOD-123 | onsemi | SOD-123 | 20,200 | ₹6.03 · 20,200 in stock | View |
 | BZT52C30Q#C2857097JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 100 | ₹2.50 · 100 in stock | View |
 | MM1Z30#C169495Jingdao Microelectronics · SOD-123 | Jingdao Microelectronics | SOD-123 | 1,300 | ₹2.41 · 1,300 in stock | View |
 | MM1Z30W#C2856872JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 50 | ₹2.29 · 50 in stock | View |
