DIODESDatasheet (PDF)

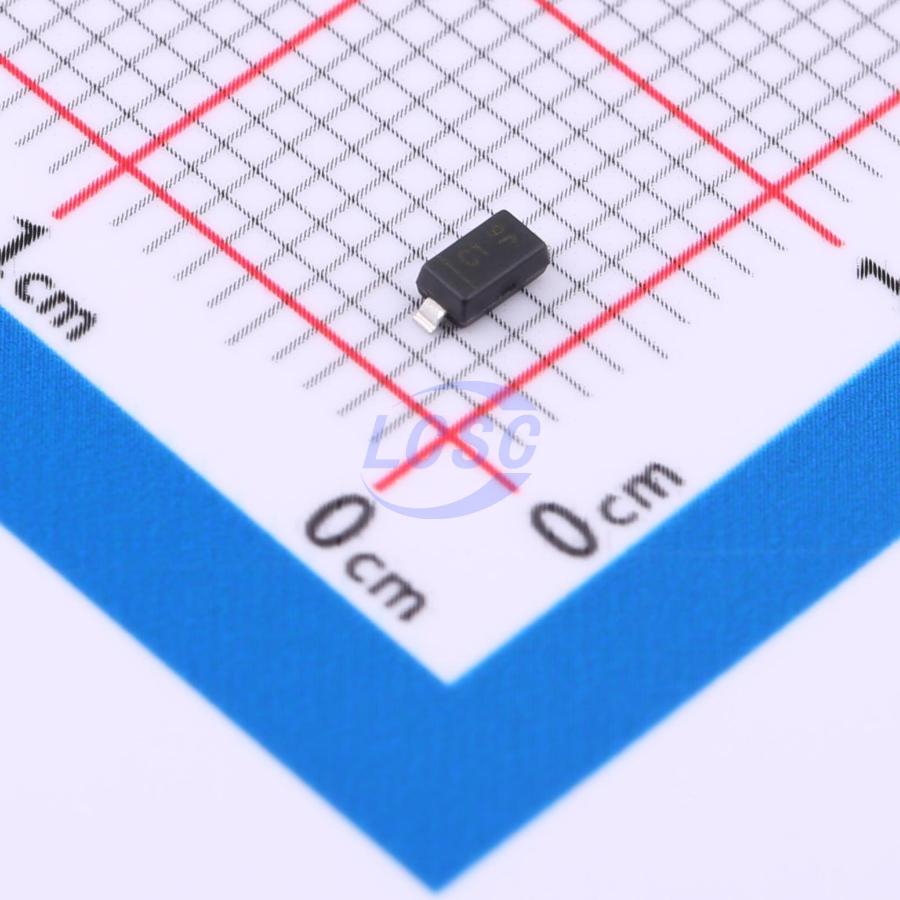

MMSZ5221BQ-7-F
Zener Diode 2.4V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 2.4V 500mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5221BQ-7-F
- Store part #
- C6674046
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C6674046
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.81 | ₹68.10 |
| 100+ | ₹6.72 | ₹672.00 |
| 300+ | ₹6.65 | ₹1,995.00 |
| 1,000+ | ₹6.59 | ₹6,590.00 |
10 × ₹6.81
₹68.10
excl. GST
₹80.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5221BQ-7-F
₹68.10 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100uA@1V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 2.28V~2.52V
- Zener Voltage(Nom)
- 2.4V
- Impedance(Zzk)
- 1.2kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.018 g
Overview
Key features
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5221B#C5244944DIODES · SOD-123 | DIODES | SOD-123 | 30 | ₹5.98 · 30 in stock | View |
 | LMSZ5221BT1G#C131757LRC · SOD-123 | LRC | SOD-123 | 2,680 | ₹5.31 · 2,680 in stock | View |
 | MMSZ5221B_R1_00001#C268588PANJIT · SOD-123 | PANJIT | SOD-123 | 3,320 | ₹4.29 · 3,320 in stock | View |
 | MMSZ5221BW#C7528242Jingdao Microelectronics · SOD-123W | Jingdao Microelectronics | SOD-123W | 2,450 | ₹2.13 · 2,450 in stock | View |
 | MMSZ5221BT1G#C94406onsemi · SOD-123 | onsemi | SOD-123 | 18,800 | ₹5.66 · 18,800 in stock | View |
