DIODESDatasheet (PDF)

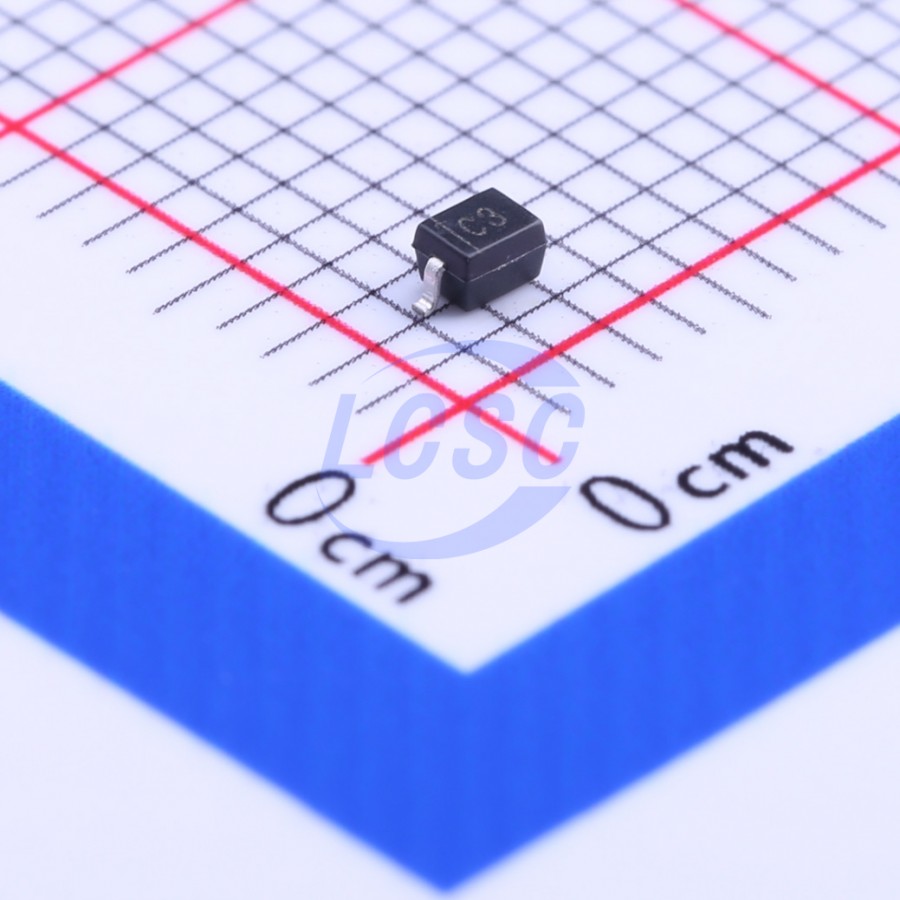

MMSZ5223BS-7-F
Zener Diode Independent 2.7V 200mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 2.7V 200mW SOD-323
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5223BS-7-F
- Store part #
- C151000
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
140 in stock
#C151000
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹1.51 | ₹30.20 |
| 200+ | ₹1.47 | ₹294.00 |
| 600+ | ₹1.44 | ₹864.00 |
| 3,000+ | ₹1.43 | ₹4,290.00 |
20 × ₹1.51
₹30.20
excl. GST
₹35.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5223BS-7-F
₹30.20 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 75uA@1V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 2.57V~2.84V
- Zener Voltage(Nom)
- 2.7V
- Impedance(Zzk)
- 1.3kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.025 g
Overview
Key features
- Planar Die Construction
- Small Surface Mount Package
- General Purpose
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C2V7SQ#C2857096JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 1,200 | ₹2.45 · 1,200 in stock | View |
 | BZT52-B2V7S_R1_00001#C263148PANJIT · SOD-323 | PANJIT | SOD-323 | 2,340 | ₹3.84 · 2,340 in stock | View |
 | LM3Z2V7T1G#C136172LRC · SOD-323 | LRC | SOD-323 | 950 | ₹2.50 · 950 in stock | View |
 | MM3Z2V7#C216739Shikues · SOD-323 | Shikues | SOD-323 | 350 | ₹2.61 · 350 in stock | View |
 | BZT52C2V7S#C5157525LGE · SOD-323 | LGE | SOD-323 | 250 | ₹2.26 · 250 in stock | View |
