MMSZ5223BT1G

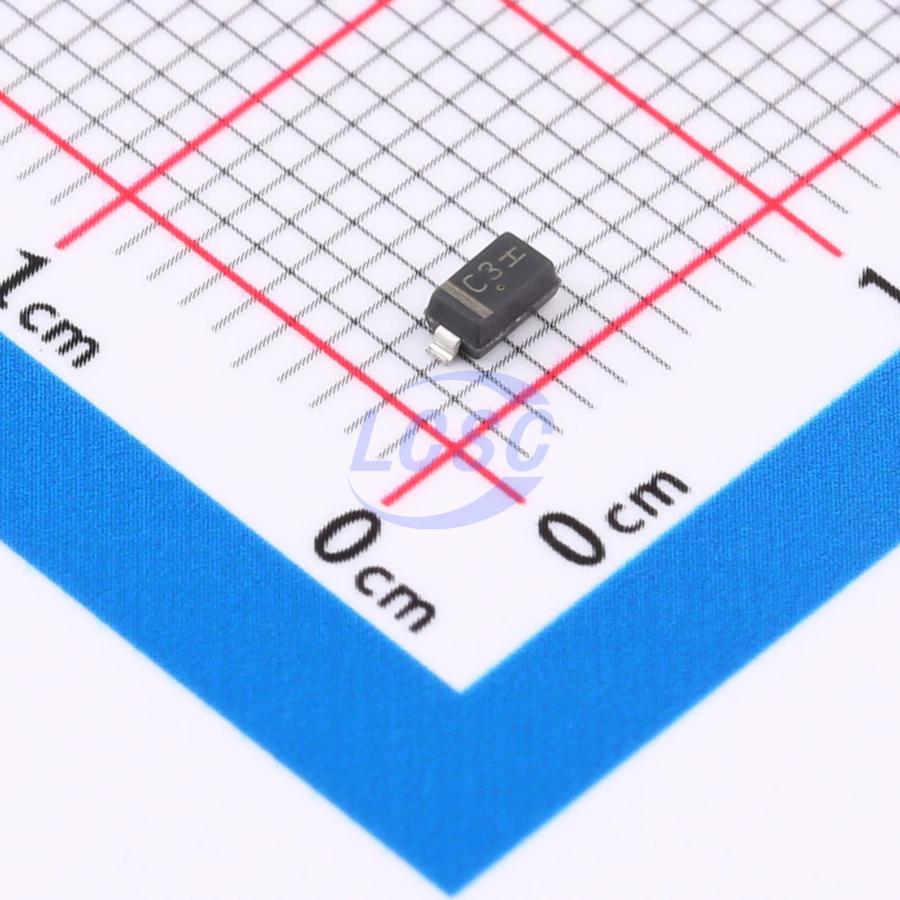

Zener Diode Independent 2.7V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 2.7V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- MMSZ5223BT1G
- Store part #
- C891723
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
210 in stock
#C891723
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.26 | ₹112.60 |
| 100+ | ₹9.41 | ₹941.00 |
| 300+ | ₹8.48 | ₹2,544.00 |
| 3,000+ | ₹7.78 | ₹23,340.00 |
| 6,000+ | ₹7.22 | ₹43,320.00 |
| 9,000+ | ₹6.95 | ₹62,550.00 |
10 × ₹11.26
₹112.60
excl. GST
₹132.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5223BT1G
₹112.60 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 75uA@1V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 2.57V~2.84V
- Zener Voltage(Nom)
- 2.7V
- Impedance(Zzk)
- 1.3kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Three complete series of Zener diodes are offered in the convenient, surface mount plastic SOD - 123 package. These devices provide a convenient alternative to the leadless 34 - package style. Zener voltage in this series are specified with device junction in thermal equilibrium.
Key features
- 500 mW Rating on FR - 4 or FR - 5 Board
- Wide Zener Reverse Voltage Range - 2.4 V to 110 V @ Thermal Equilibrium
- Package Designed for Optimal Automated Board Assembly
- Small Package Size for High Density Applications
- General Purpose, Medium Current
- ESD Rating of Class 3 (>16 kV per Human Body Model)
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC - Q101 Qualified and PPAP Capable
- These are Pb - Free Devices
