DIODESDatasheet (PDF)

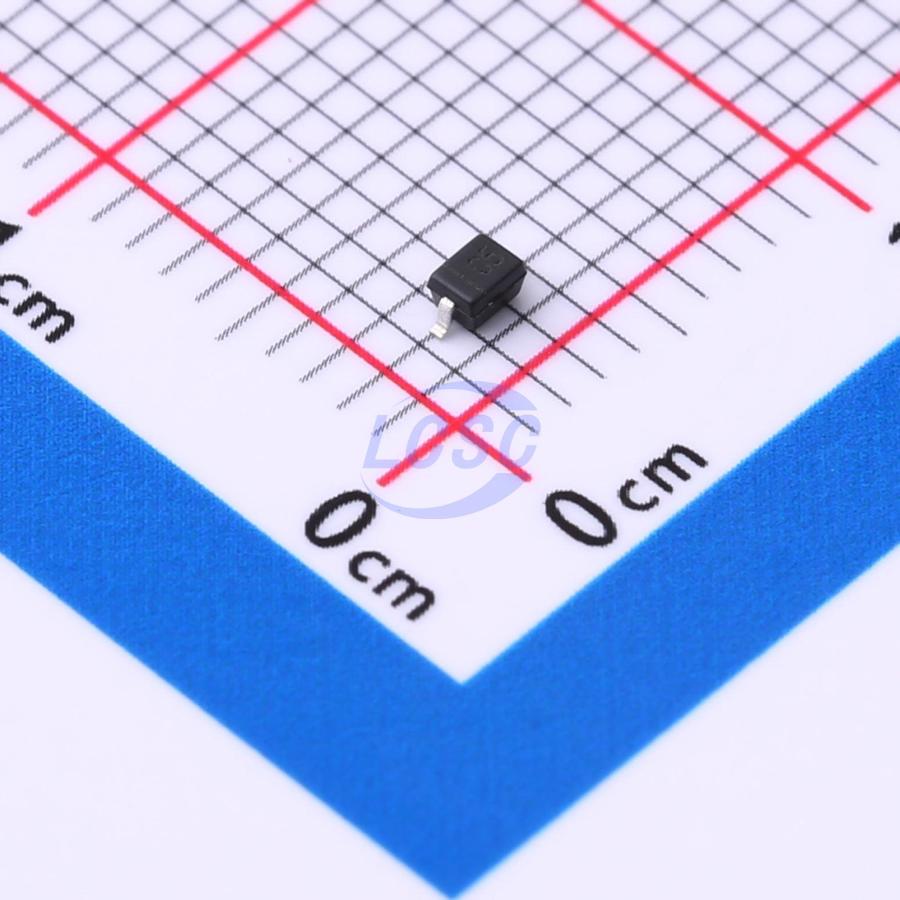

MMSZ5225BS-7-F
Zener Diode 3V 200mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 3V 200mW SOD-323
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5225BS-7-F
- Store part #
- C3734655
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,435 in stock
#C3734655
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.35 | ₹56.75 |
| 50+ | ₹9.13 | ₹456.50 |
| 150+ | ₹8.02 | ₹1,203.00 |
| 500+ | ₹7.18 | ₹3,590.00 |
| 3,000+ | ₹6.24 | ₹18,720.00 |
| 6,000+ | ₹5.91 | ₹35,460.00 |
5 × ₹11.35
₹56.75
excl. GST
₹66.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5225BS-7-F
₹56.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 50uA@1V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 2.85V~3.15V
- Zener Voltage(Nom)
- 3V
- Impedance(Zzk)
- 1.6kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Key features
- Planar Die Construction
- Small Surface Mount Package
- General Purpose
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5225BS#C3031855JSCJ · SOD-323 | JSCJ | SOD-323 | 1,780 | ₹3.18 · 1,780 in stock | View |
 | BZT52-C3S_R1_00001#C5177352PANJIT · SOD-323 | PANJIT | SOD-323 | 40 | ₹3.49 · 40 in stock | View |
 | MMSZ5225BS#C55073134YFW · SOD-323 | YFW | SOD-323 | 100 | ₹3.04 · 100 in stock | View |
 | MM3Z3V0-MS#C22459407MSKSEMI · SOD-323 | MSKSEMI | SOD-323 | 2,900 | ₹2.21 · 2,900 in stock | View |
 | TPZ3V0C-323#C46641641TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 2,600 | ₹2.21 · 2,600 in stock | View |
