VISHAYDatasheet (PDF)

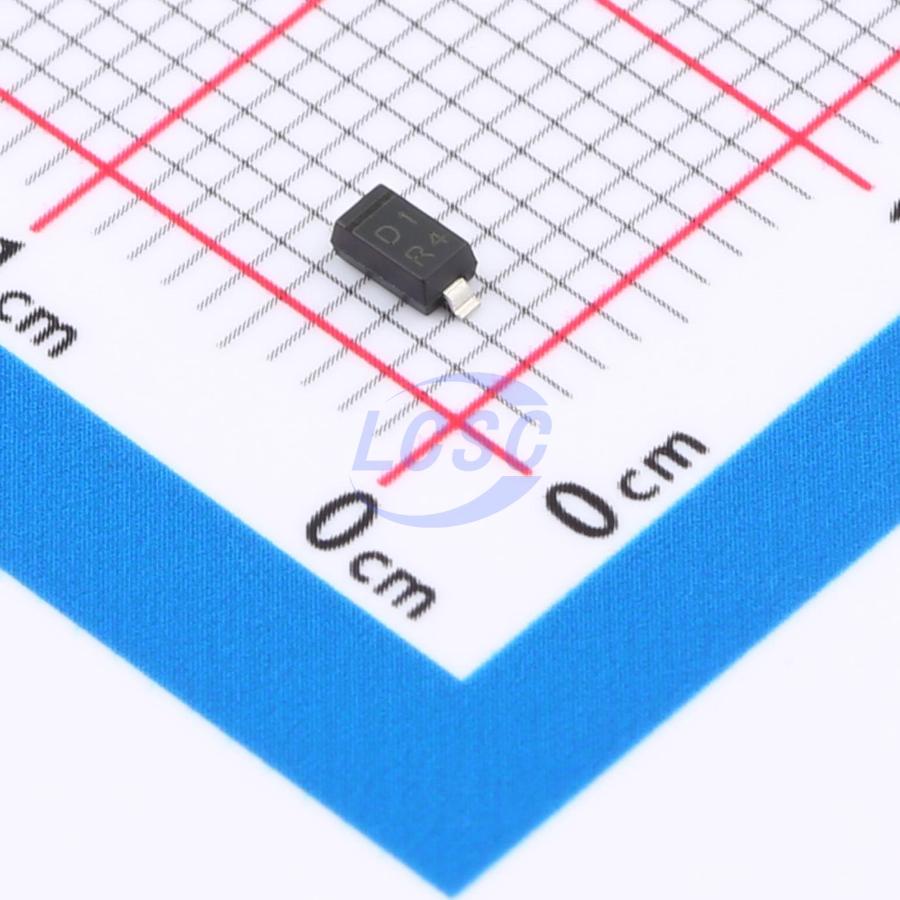

MMSZ5226B-HE3-08
1 Independent 3.3V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
DIODE ZENER 3.3V 300mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- MMSZ5226B-HE3-08
- Store part #
- C3729116
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,855 in stock
#C3729116
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.04 | ₹65.20 |
| 50+ | ₹10.44 | ₹522.00 |
| 150+ | ₹9.13 | ₹1,369.50 |
| 500+ | ₹8.15 | ₹4,075.00 |
| 3,000+ | ₹7.37 | ₹22,110.00 |
| 6,000+ | ₹6.97 | ₹41,820.00 |
5 × ₹13.04
₹65.20
excl. GST
₹76.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5226B-HE3-08
₹65.20 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 25uA@1V
- Impedance(Zzt)
- 28Ω
- Zener Voltage(Nom)
- 3.3V
- Impedance(Zzk)
- 1.6kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
Key features
- Silicon planar Zener diodes Standard Zener voltage tolerance is ± 5% with a "B" suffix (e.g.: MMSZ52259), suffix "C" is ± 2% tolerance
- AEC - Q101 qualified available ESD capability according to AEC - Q101: Human body model >8kV Machine model >800V
- Base P/N - E3 - RoHS - compliant, commercial grade Base P/N - HE3_A - RoHS - compliant, AEC - Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5226B-7-F#C155250DIODES · SOD-123 | DIODES | SOD-123 | 19,410 | ₹8.53 · 19,410 in stock | View |
